کد مقاله کد نشریه سال انتشار مقاله انگلیسی نسخه تمام متن
808909 1468639 2016 11 صفحه PDF دانلود رایگان
عنوان انگلیسی مقاله ISI
Phase-field simulation of microstructure evolution of Ti–6Al–4V in electron beam additive manufacturing process
موضوعات مرتبط
مهندسی و علوم پایه سایر رشته های مهندسی مهندسی صنعتی و تولید

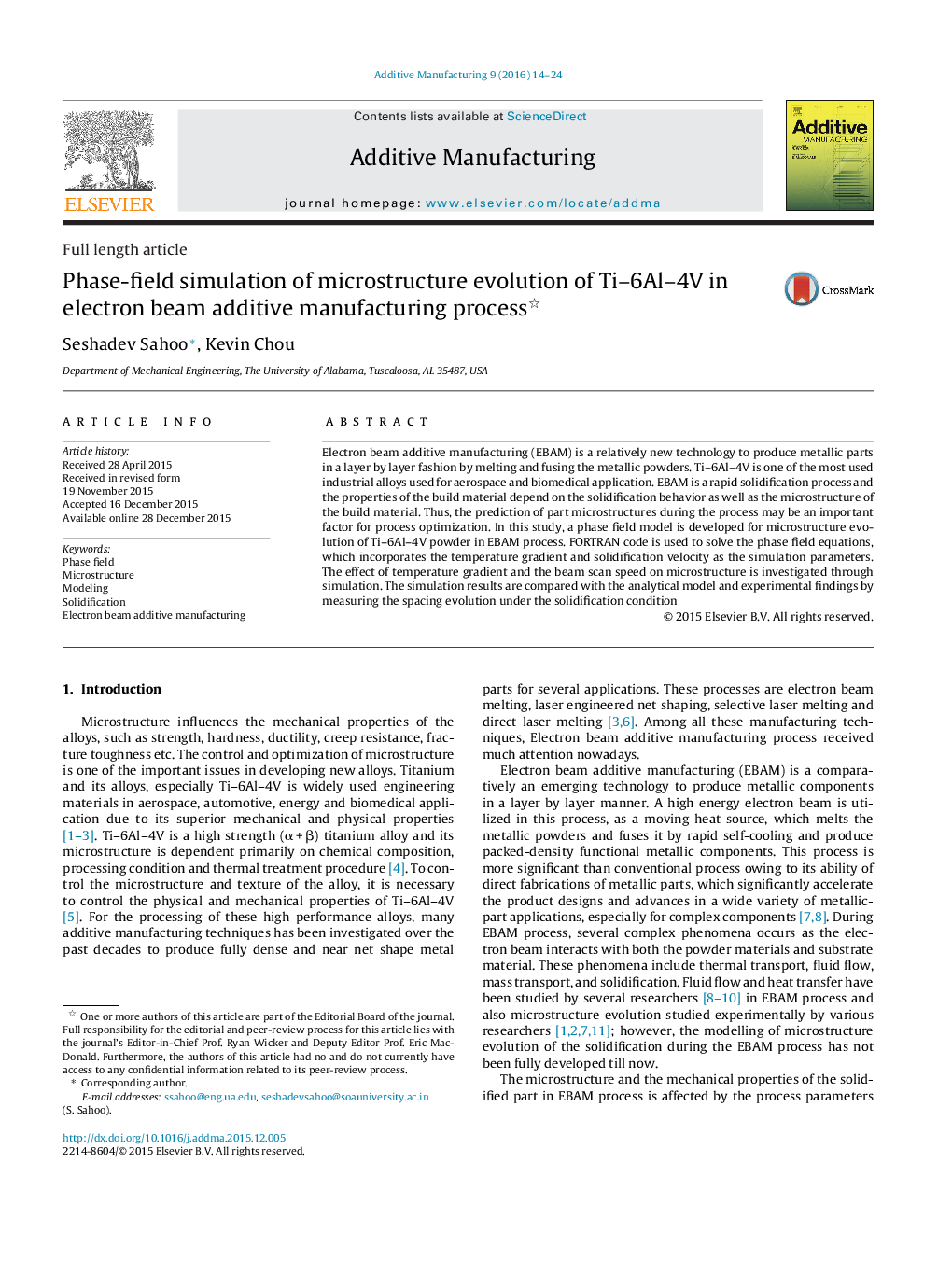

پیش نمایش صفحه اول مقاله
Phase-field simulation of microstructure evolution of Ti–6Al–4V in electron beam additive manufacturing process
چکیده انگلیسی

Electron beam additive manufacturing (EBAM) is a relatively new technology to produce metallic parts in a layer by layer fashion by melting and fusing the metallic powders. Ti–6Al–4V is one of the most used industrial alloys used for aerospace and biomedical application. EBAM is a rapid solidification process and the properties of the build material depend on the solidification behavior as well as the microstructure of the build material. Thus, the prediction of part microstructures during the process may be an important factor for process optimization. In this study, a phase field model is developed for microstructure evolution of Ti–6Al–4V powder in EBAM process. FORTRAN code is used to solve the phase field equations, which incorporates the temperature gradient and solidification velocity as the simulation parameters. The effect of temperature gradient and the beam scan speed on microstructure is investigated through simulation. The simulation results are compared with the analytical model and experimental findings by measuring the spacing evolution under the solidification condition

ناشر
Database: Elsevier - ScienceDirect (ساینس دایرکت)
Journal: Additive Manufacturing - Volume 9, January 2016, Pages 14–24
نویسندگان
, ,
