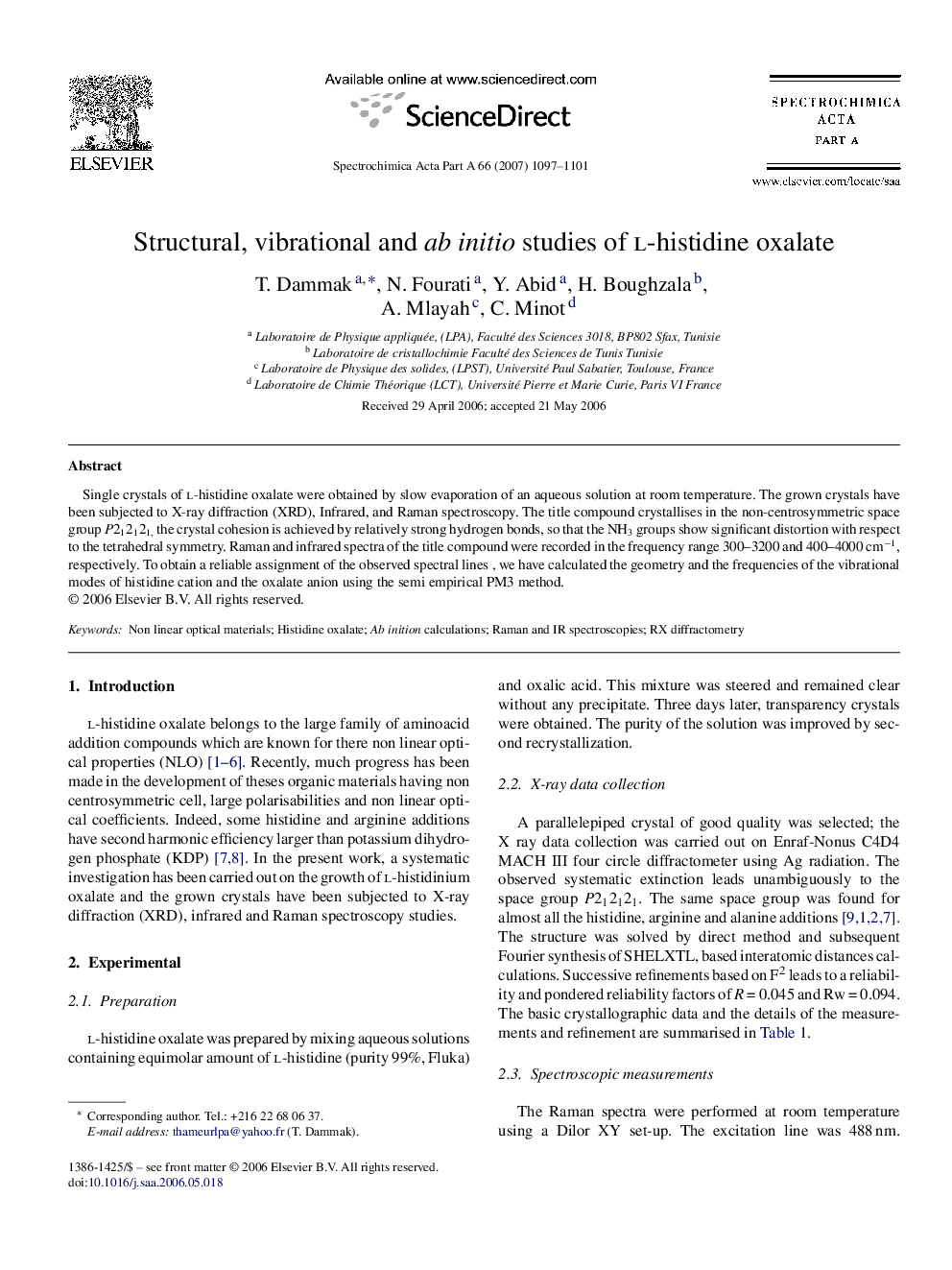

Structural, vibrational and ab initio studies of l-histidine oxalate

Single crystals of l-histidine oxalate were obtained by slow evaporation of an aqueous solution at room temperature. The grown crystals have been subjected to X-ray diffraction (XRD), Infrared, and Raman spectroscopy. The title compound crystallises in the non-centrosymmetric space group P212121, the crystal cohesion is achieved by relatively strong hydrogen bonds, so that the NH3 groups show significant distortion with respect to the tetrahedral symmetry. Raman and infrared spectra of the title compound were recorded in the frequency range 300-3200 and 400-4000 cm−1, respectively. To obtain a reliable assignment of the observed spectral lines , we have calculated the geometry and the frequencies of the vibrational modes of histidine cation and the oxalate anion using the semi empirical PM3 method.
