| Article ID | Journal | Published Year | Pages | File Type |
|---|---|---|---|---|
| 1346584 | Tetrahedron: Asymmetry | 2010 | 6 Pages |

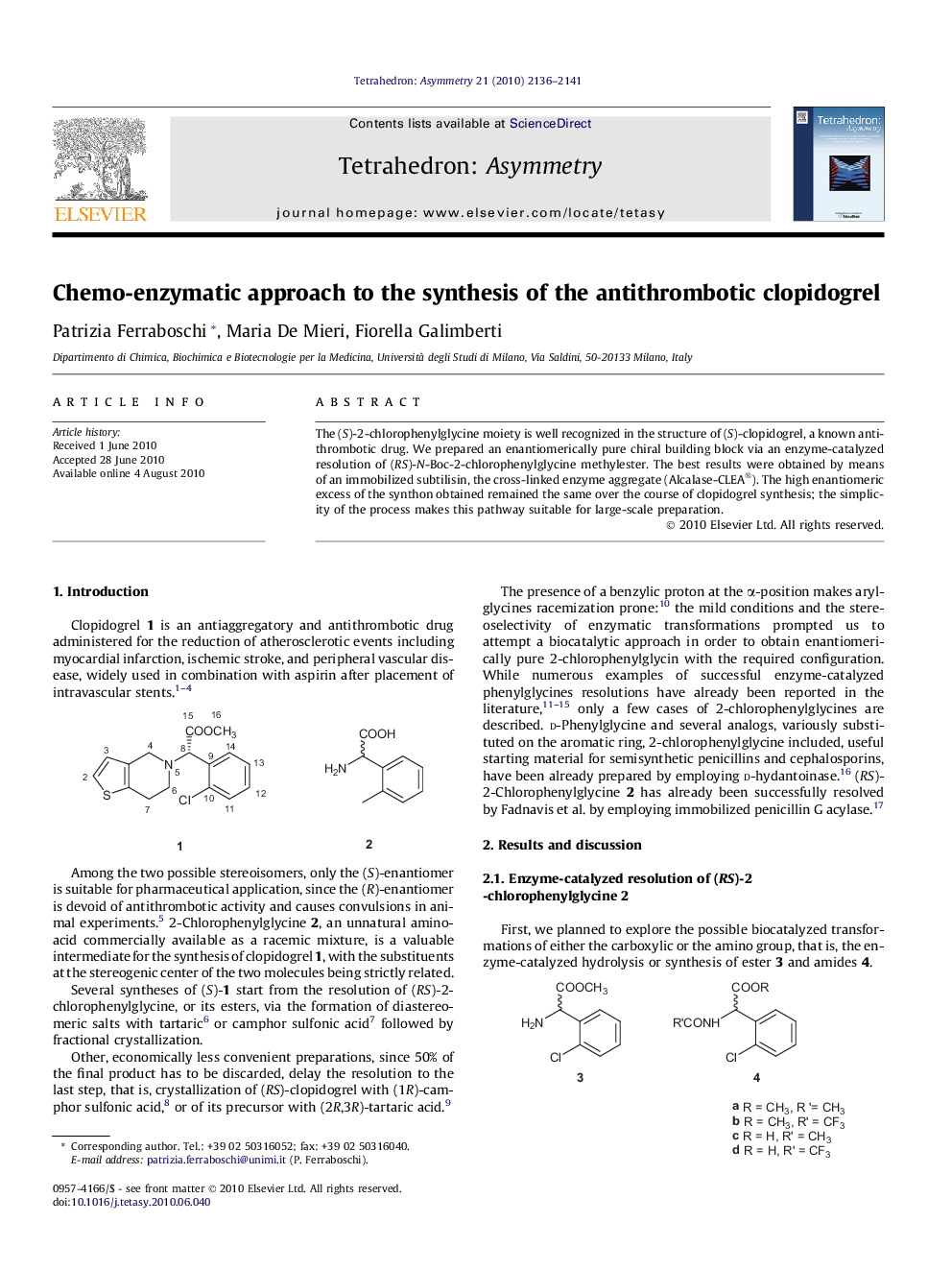

The (S)-2-chlorophenylglycine moiety is well recognized in the structure of (S)-clopidogrel, a known antithrombotic drug. We prepared an enantiomerically pure chiral building block via an enzyme-catalyzed resolution of (RS)-N-Boc-2-chlorophenylglycine methylester. The best results were obtained by means of an immobilized subtilisin, the cross-linked enzyme aggregate (Alcalase-CLEA®). The high enantiomeric excess of the synthon obtained remained the same over the course of clopidogrel synthesis; the simplicity of the process makes this pathway suitable for large-scale preparation.
Graphical abstractFigure optionsDownload full-size imageDownload as PowerPoint slide
N-Boc-(S)-2-chlorophenylglycineC13H16ClNO4>98% Ee (by HPLC)[α]D20=+101 (c 1, CH3OH)Source of chirality: enzymatic hydrolysisAbsolute configuration: (S)
N-Boc-(S)-2-chlorophenylglycine methyl esterC14H18ClNO4>98% Ee (by HPLC)[α]D20=+119.3 (c 1, CHCl3)Source of chirality: N-Boc-(S)-2-chlorophenylglycineAbsolute configuration: (S)
(S)-2-Chlorophenylglycine methyl esterC9H10ClNO2>98% Ee (by HPLC)[α]D20=+123 (c 1, CH3OH)Source of chirality: N-Boc-(S)-2-chlorophenylglycineAbsolute configuration: (S)
(S)-α-(2-Chlorophenyl)-6,7-dihydrothieno[3,2-c]pyridine-5(4H)-acetic acid methyl ester (clopidogrel)C16H16ClNO2S>98% Ee (by HPLC)[α]D20=+45 (c 1, CH3OH)Source of chirality: (S)-2-chlorophenylglycine methyl esterAbsolute configuration: (S)
(S)-α-(2-Chlorophenyl)-6,7-dihydrothieno[3,2-c]pyridine-5(4H)-acetic acid methyl ester hydrogen sulfate (clopidogrel hydrogen sulfate)C16H16ClNO2S·H2SO4>98% Ee (by HPLC)[α]D20=+54.8 (c 1, CH3OH)Source of chirality: (S)-2-chlorophenylglycine methyl esterAbsolute configuration: (S)
