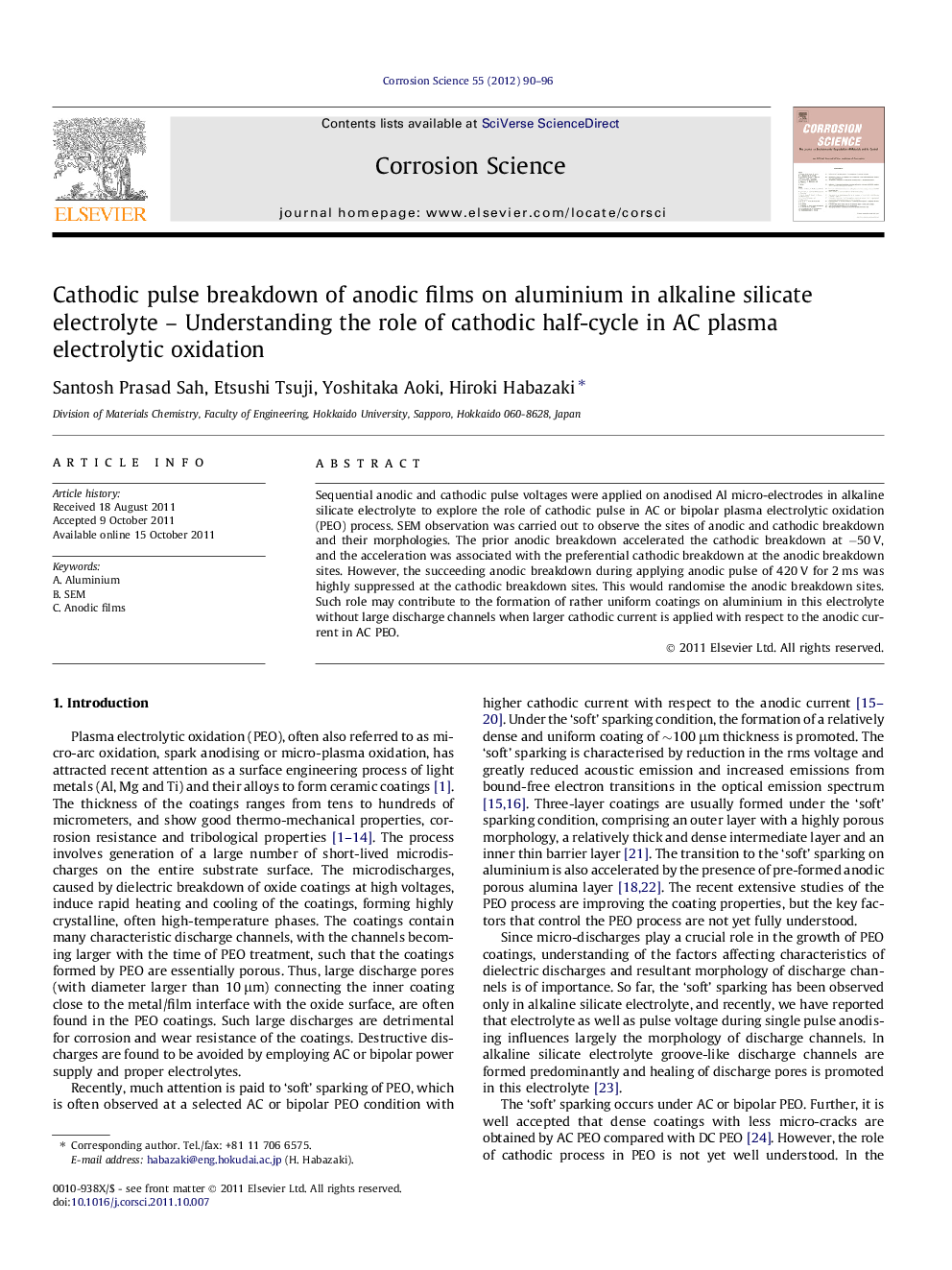

Cathodic pulse breakdown of anodic films on aluminium in alkaline silicate electrolyte – Understanding the role of cathodic half-cycle in AC plasma electrolytic oxidation

Sequential anodic and cathodic pulse voltages were applied on anodised Al micro-electrodes in alkaline silicate electrolyte to explore the role of cathodic pulse in AC or bipolar plasma electrolytic oxidation (PEO) process. SEM observation was carried out to observe the sites of anodic and cathodic breakdown and their morphologies. The prior anodic breakdown accelerated the cathodic breakdown at −50 V, and the acceleration was associated with the preferential cathodic breakdown at the anodic breakdown sites. However, the succeeding anodic breakdown during applying anodic pulse of 420 V for 2 ms was highly suppressed at the cathodic breakdown sites. This would randomise the anodic breakdown sites. Such role may contribute to the formation of rather uniform coatings on aluminium in this electrolyte without large discharge channels when larger cathodic current is applied with respect to the anodic current in AC PEO.

► Sequential anodic and cathodic pulse voltages were applied to anodised Al micro-electrode. ► Cathodic breakdown occurs preferentially at the anodic dielectric breakdown sites. ► However, succeeding anodic breakdown is highly suppressed at the cathodic breakdown sites.
