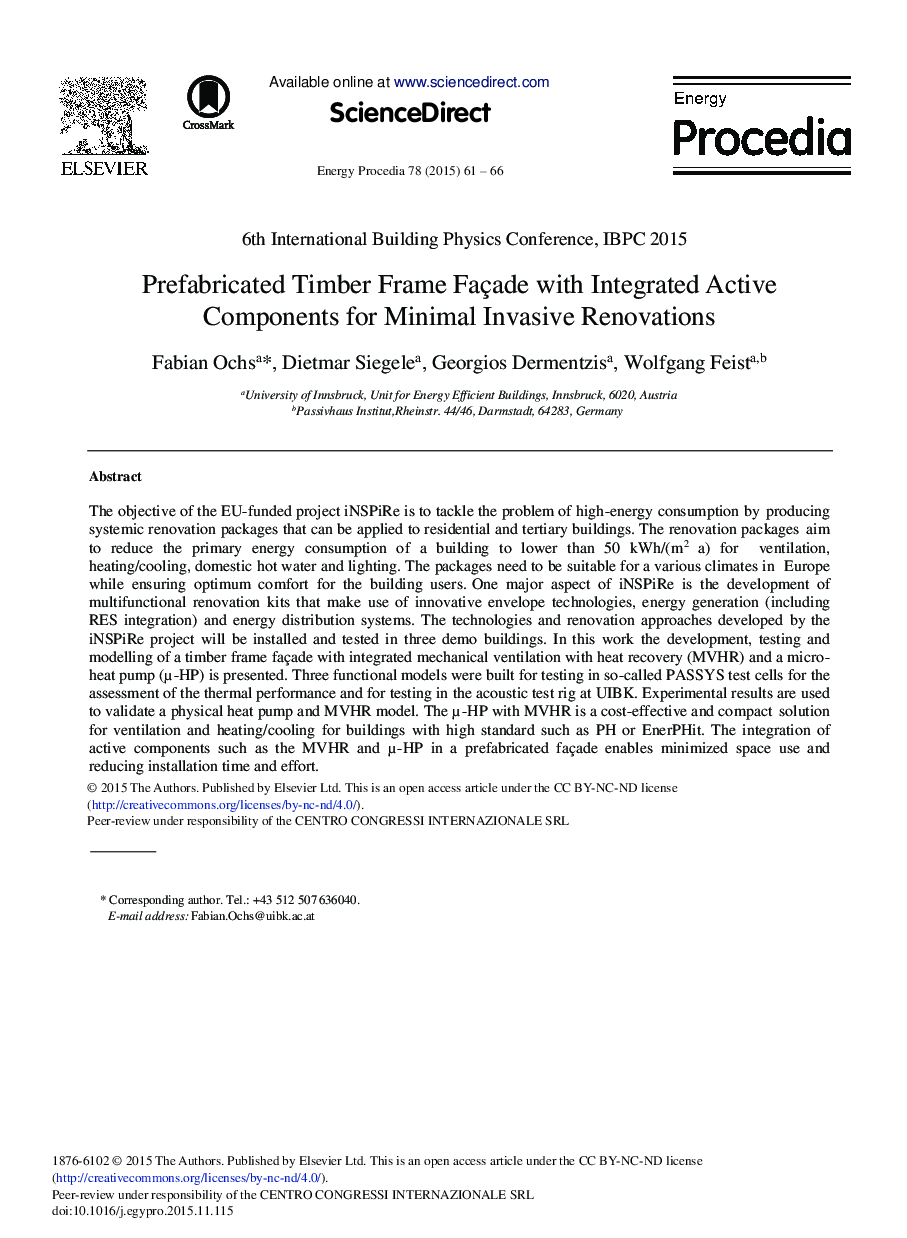

Prefabricated Timber Frame Façade with Integrated Active Components for Minimal Invasive Renovations

The objective of the EU-funded project iNSPiRe is to tackle the problem of high-energy consumption by producing systemic renovation packages that can be applied to residential and tertiary buildings. The renovation packages aim to reduce the primary energy consumption of a building to lower than 50 kWh/(m2 a) for ventilation, heating/cooling, domestic hot water and lighting. The packages need to be suitable for a various climates in Europe while ensuring optimum comfort for the building users. One major aspect of iNSPiRe is the development of multifunctional renovation kits that make use of innovative envelope technologies, energy generation (including RES integration) and energy distribution systems. The technologies and renovation approaches developed by the iNSPiRe project will be installed and tested in three demo buildings. In this work the development, testing and modelling of a timber frame façade with integrated mechanical ventilation with heat recovery (MVHR) and a micro- heat pump (μ-HP) is presented. Three functional models were built for testing in so-called PASSYS test cells for the assessment of the thermal performance and for testing in the acoustic test rig at UIBK. Experimental results are used to validate a physical heat pump and MVHR model. The μ-HP with MVHR is a cost-effective and compact solution for ventilation and heating/cooling for buildings with high standard such as PH or EnerPHit. The integration of active components such as the MVHR and μ-HP in a prefabricated façade enables minimized space use and reducing installation time and effort.
