Article ID | Journal | Published Year | Pages | File Type |
---|---|---|---|---|
1606366 | Journal of Alloys and Compounds | 2016 | 6 Pages |
Abstract

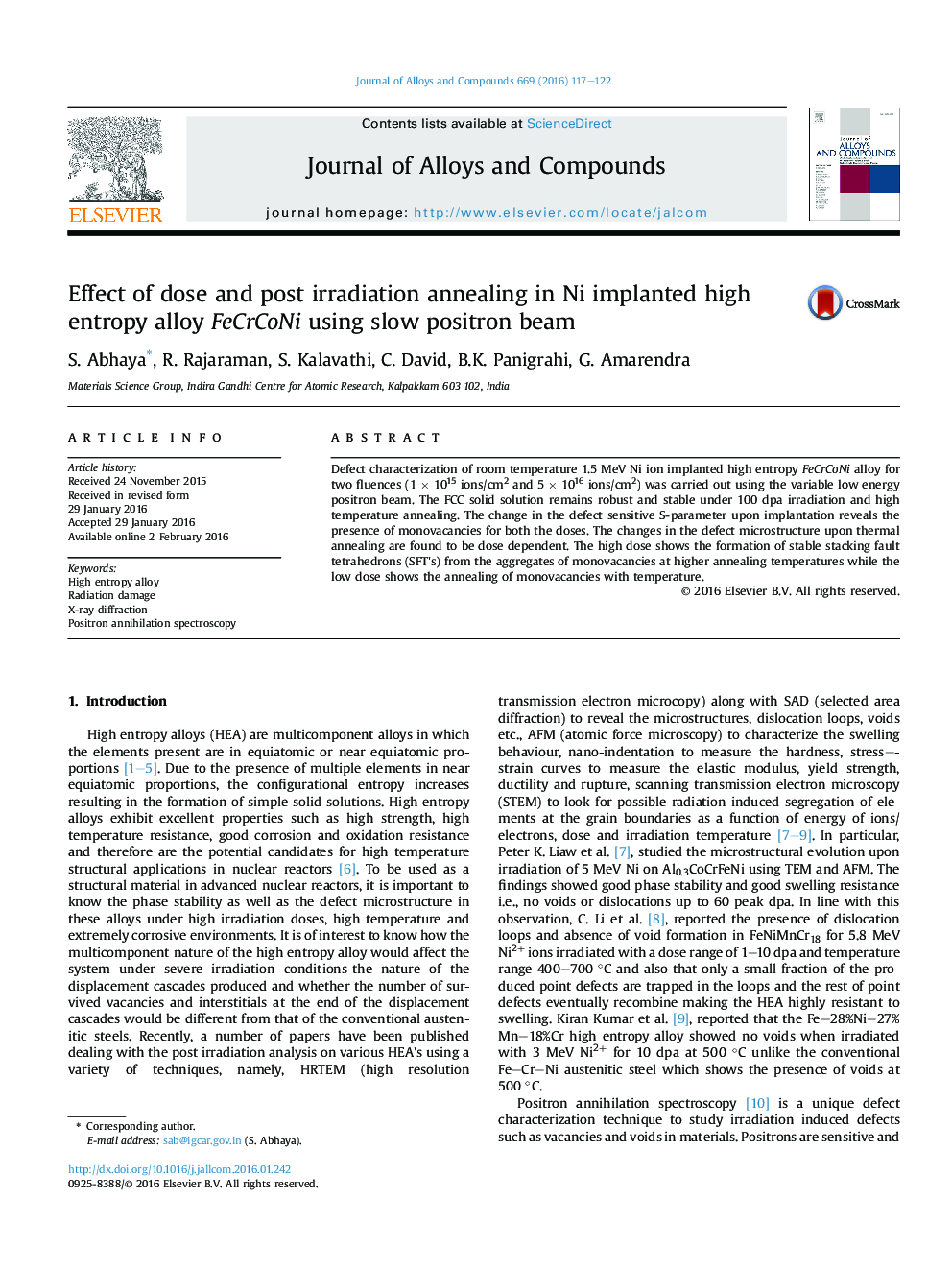

Defect characterization of room temperature 1.5Â MeV Ni ion implanted high entropy FeCrCoNi alloy for two fluences (1Â ÃÂ 1015Â ions/cm2 and 5Â ÃÂ 1016Â ions/cm2) was carried out using the variable low energy positron beam. The FCC solid solution remains robust and stable under 100Â dpa irradiation and high temperature annealing. The change in the defect sensitive S-parameter upon implantation reveals the presence of monovacancies for both the doses. The changes in the defect microstructure upon thermal annealing are found to be dose dependent. The high dose shows the formation of stable stacking fault tetrahedrons (SFT's) from the aggregates of monovacancies at higher annealing temperatures while the low dose shows the annealing of monovacancies with temperature.
Related Topics
Physical Sciences and Engineering
Materials Science
Metals and Alloys
Authors
S. Abhaya, R. Rajaraman, S. Kalavathi, C. David, B.K. Panigrahi, G. Amarendra,
