| Article ID | Journal | Published Year | Pages | File Type |
|---|---|---|---|---|
| 1615025 | Journal of Alloys and Compounds | 2013 | 4 Pages |

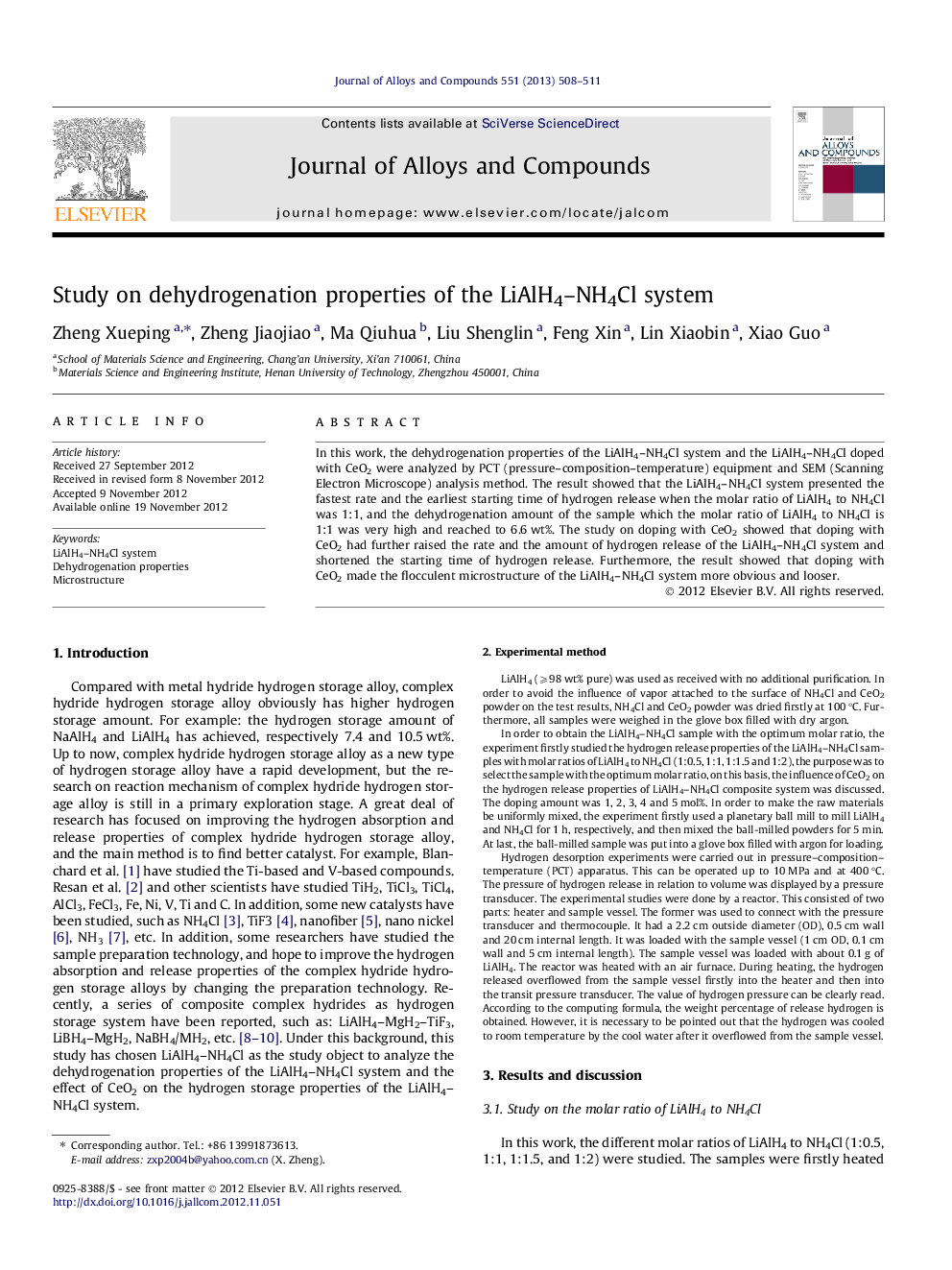

In this work, the dehydrogenation properties of the LiAlH4–NH4Cl system and the LiAlH4–NH4Cl doped with CeO2 were analyzed by PCT (pressure–composition–temperature) equipment and SEM (Scanning Electron Microscope) analysis method. The result showed that the LiAlH4–NH4Cl system presented the fastest rate and the earliest starting time of hydrogen release when the molar ratio of LiAlH4 to NH4Cl was 1:1, and the dehydrogenation amount of the sample which the molar ratio of LiAlH4 to NH4Cl is 1:1 was very high and reached to 6.6 wt%. The study on doping with CeO2 showed that doping with CeO2 had further raised the rate and the amount of hydrogen release of the LiAlH4–NH4Cl system and shortened the starting time of hydrogen release. Furthermore, the result showed that doping with CeO2 made the flocculent microstructure of the LiAlH4–NH4Cl system more obvious and looser.
► The dehydrogenation amount of the sample with the molar ratio of 1:1 reaches to about 6.6 wt%. ► Doping with CeO2 has raised the dehydrogenation properties of the LiAlH4–NH4Cl system. ► The microstructures of LiAlH4–NH4Cl with different molar ratio of LiAlH4 to NH4Cl are similar. ► Amount of CeO2 has not caused change of microstructures of LiAlH4–NH4Cl doped with CeO2. ► Doping with CeO2 makes the flocculent microstructure of LiAlH4–NH4Cl more loose.
