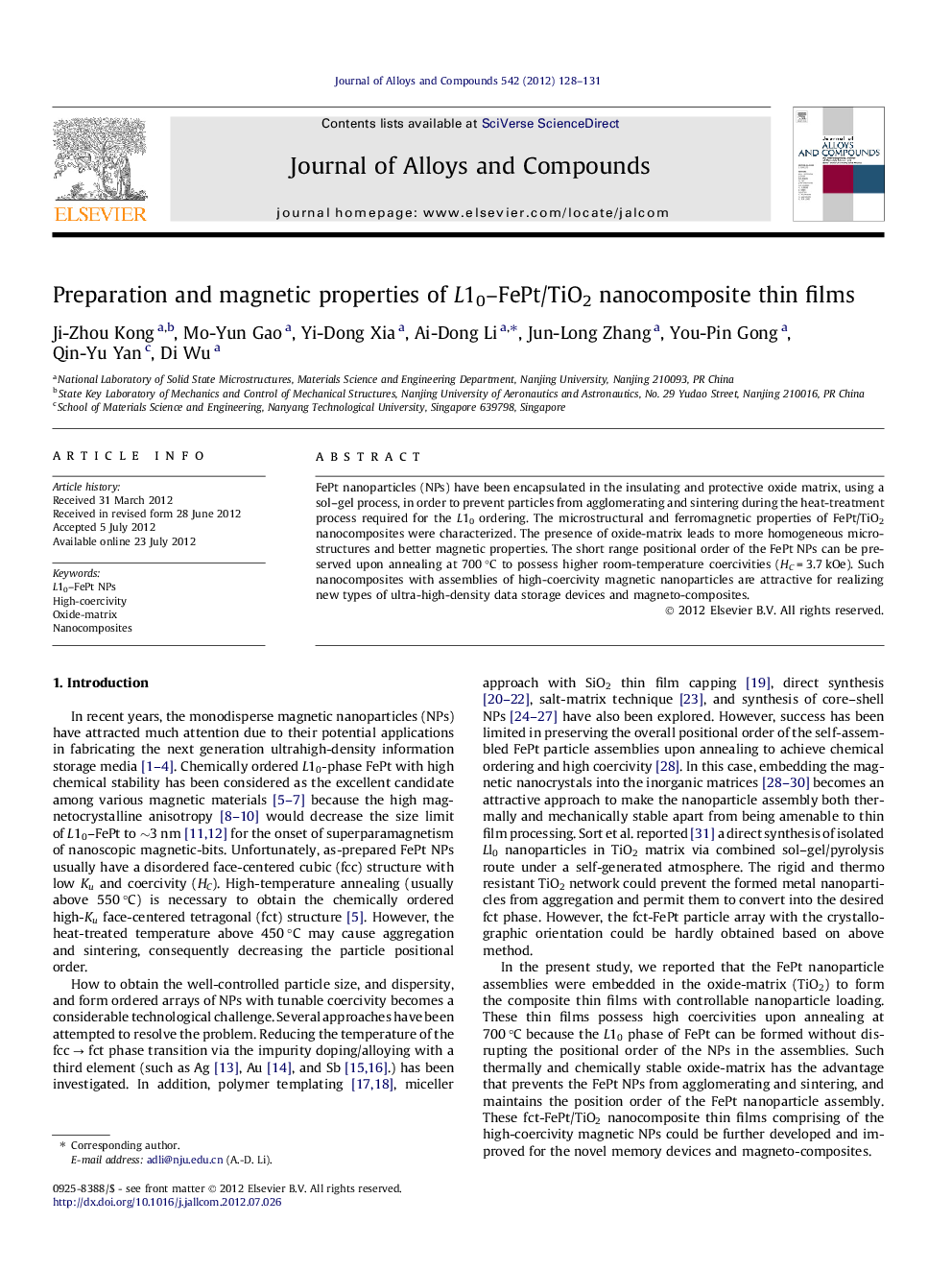

Preparation and magnetic properties of L10–FePt/TiO2 nanocomposite thin films

FePt nanoparticles (NPs) have been encapsulated in the insulating and protective oxide matrix, using a sol–gel process, in order to prevent particles from agglomerating and sintering during the heat-treatment process required for the L10 ordering. The microstructural and ferromagnetic properties of FePt/TiO2 nanocomposites were characterized. The presence of oxide-matrix leads to more homogeneous microstructures and better magnetic properties. The short range positional order of the FePt NPs can be preserved upon annealing at 700 °C to possess higher room-temperature coercivities (HC = 3.7 kOe). Such nanocomposites with assemblies of high-coercivity magnetic nanoparticles are attractive for realizing new types of ultra-high-density data storage devices and magneto-composites.

► Well-monodispersed fcc-FePt nanoparticles were prepared via chemical reduction. ► FePt have been encapsulated in the insulating and protective oxide matrix. ► TiO2 matrix can prevent FePt from agglomerating and sintering during annealing. ► A high coercivity of 3.7 kOe is obtained for the nanocomposites annealed at 700 °C.
