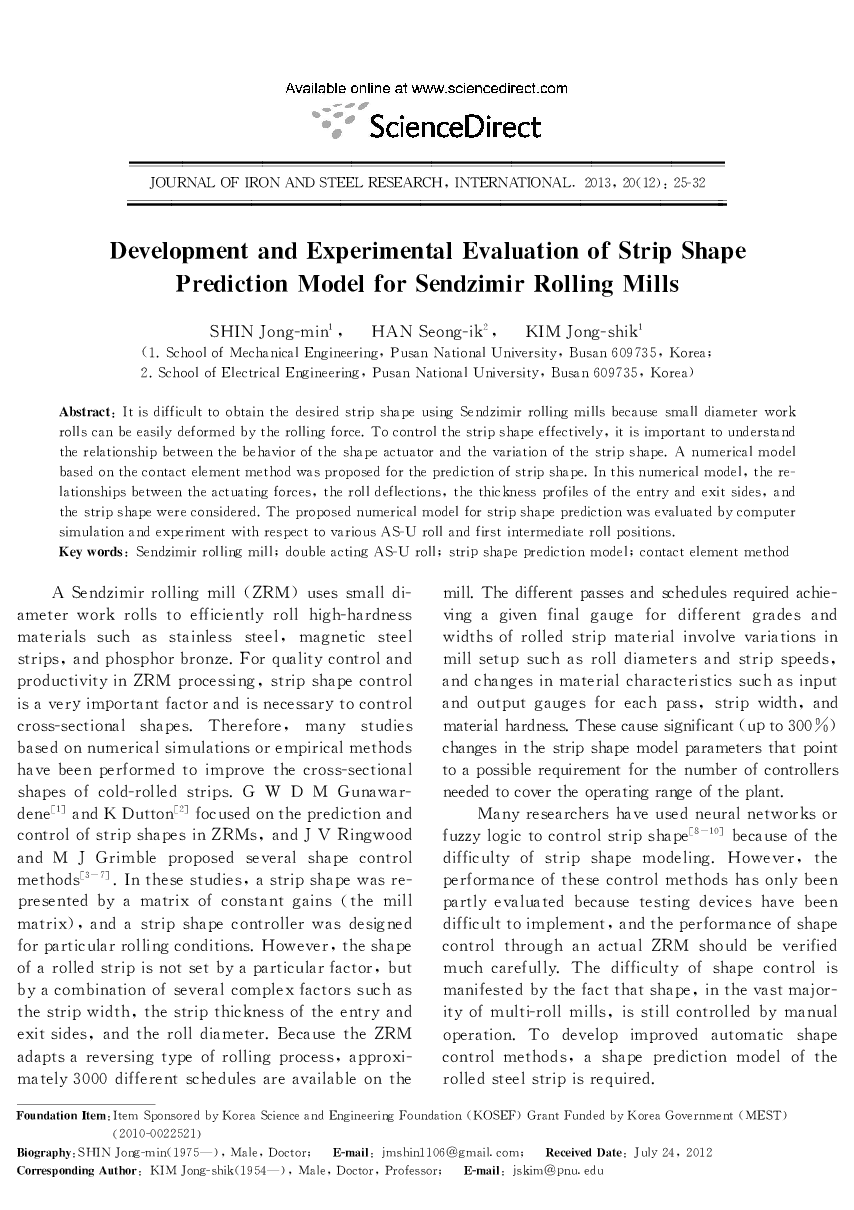

Development and Experimental Evaluation of Strip Shape Prediction Model for Sendzimir Rolling Mills

It is difficult to obtain the desired strip shape using Sendzimir rolling mills because small diameter work rolls can be easily deformed by the rolling force. To control the strip shape effectively, it is important to understand the relationship between the behavior of the shape actuator and the variation of the strip shape. A numerical model based on the contact element method was proposed for the prediction of strip shape. In this numerical model, the relationships between the actuating forces, the roll deflections, the thickness profiles of the entry and exit sides, and the strip shape were considered. The proposed numerical model for strip shape prediction was evaluated by computer simulation and experiment with respect to various AS-U roll and first intermediate roll positions.
