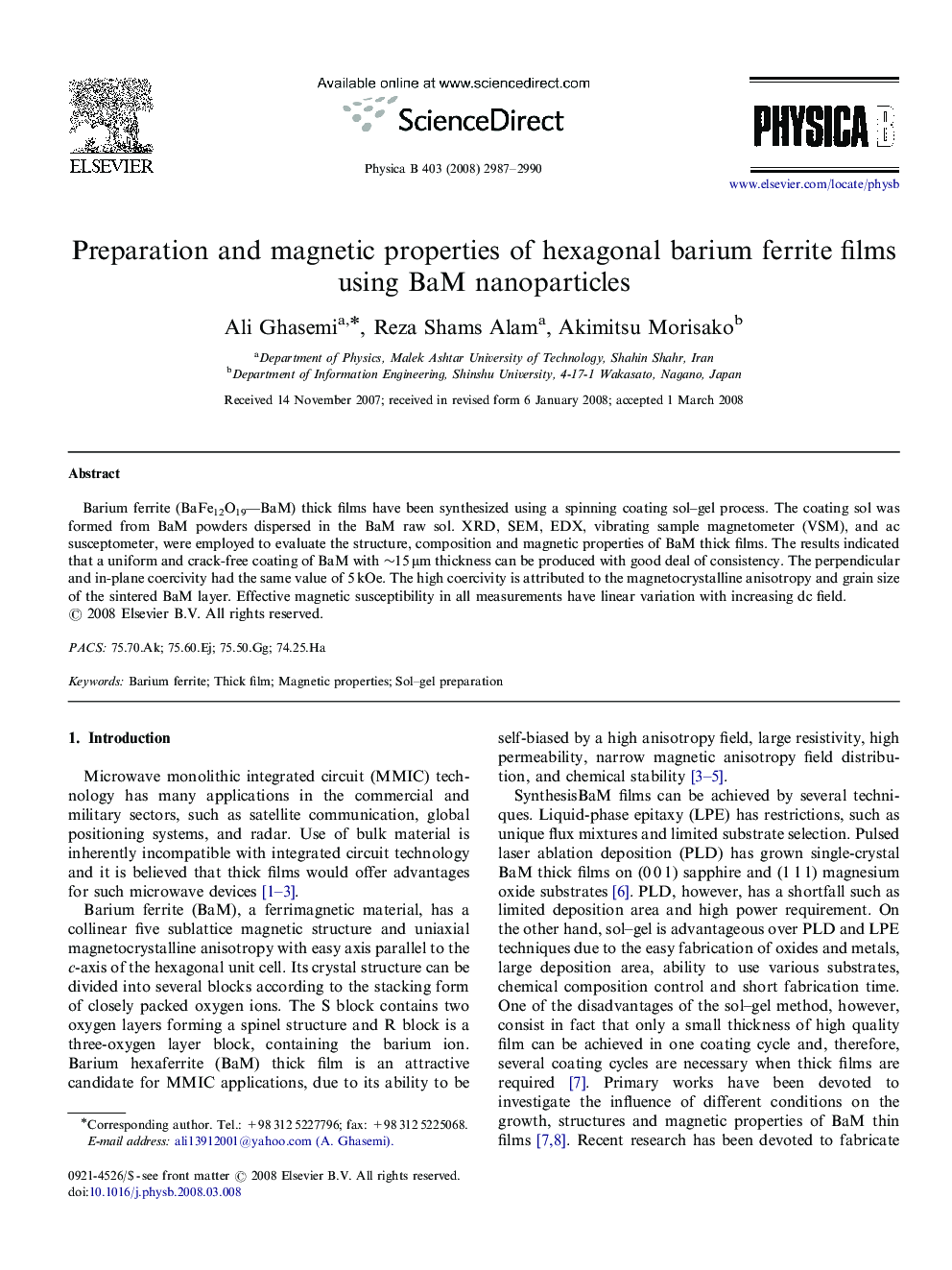

Preparation and magnetic properties of hexagonal barium ferrite films using BaM nanoparticles

Barium ferrite (BaFe12O19—BaM) thick films have been synthesized using a spinning coating sol–gel process. The coating sol was formed from BaM powders dispersed in the BaM raw sol. XRD, SEM, EDX, vibrating sample magnetometer (VSM), and ac susceptometer, were employed to evaluate the structure, composition and magnetic properties of BaM thick films. The results indicated that a uniform and crack-free coating of BaM with ∼15 μm thickness can be produced with good deal of consistency. The perpendicular and in-plane coercivity had the same value of 5 kOe. The high coercivity is attributed to the magnetocrystalline anisotropy and grain size of the sintered BaM layer. Effective magnetic susceptibility in all measurements have linear variation with increasing dc field.
