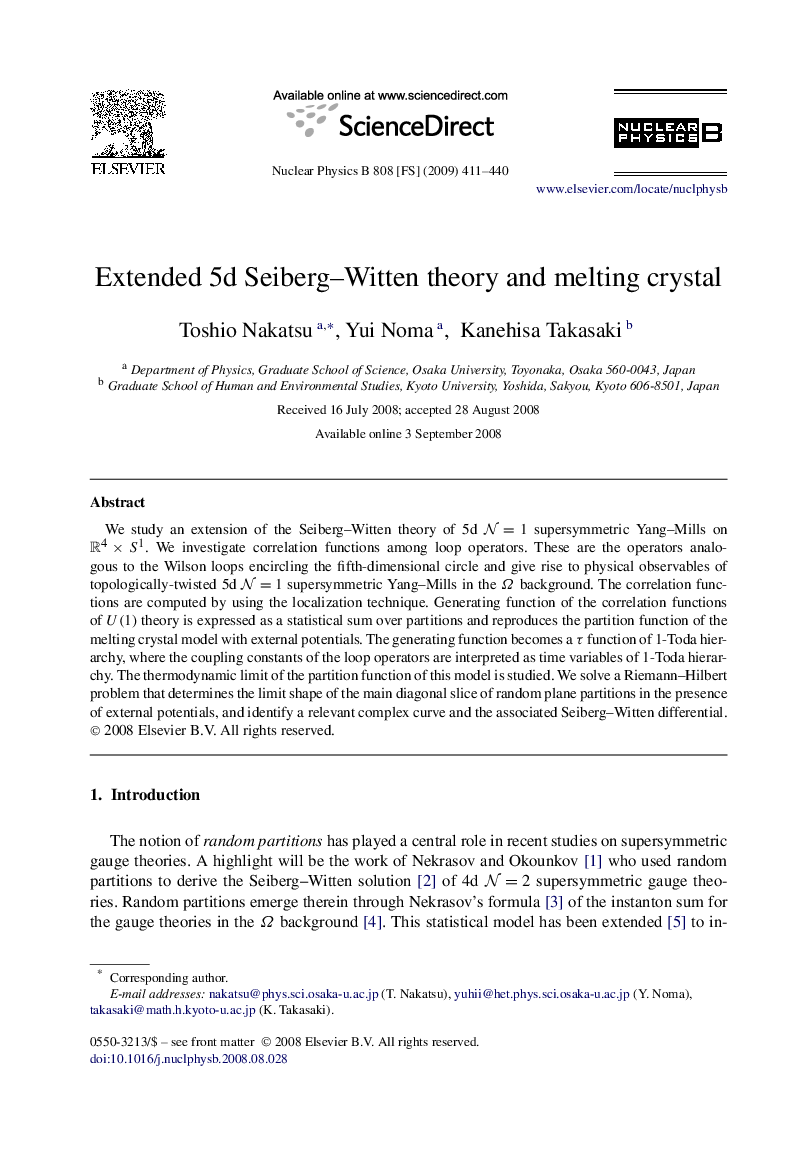

Extended 5d Seiberg-Witten theory and melting crystal

We study an extension of the Seiberg-Witten theory of 5d N=1 supersymmetric Yang-Mills on R4×S1. We investigate correlation functions among loop operators. These are the operators analogous to the Wilson loops encircling the fifth-dimensional circle and give rise to physical observables of topologically-twisted 5d N=1 supersymmetric Yang-Mills in the Ω background. The correlation functions are computed by using the localization technique. Generating function of the correlation functions of U(1) theory is expressed as a statistical sum over partitions and reproduces the partition function of the melting crystal model with external potentials. The generating function becomes a τ function of 1-Toda hierarchy, where the coupling constants of the loop operators are interpreted as time variables of 1-Toda hierarchy. The thermodynamic limit of the partition function of this model is studied. We solve a Riemann-Hilbert problem that determines the limit shape of the main diagonal slice of random plane partitions in the presence of external potentials, and identify a relevant complex curve and the associated Seiberg-Witten differential.
