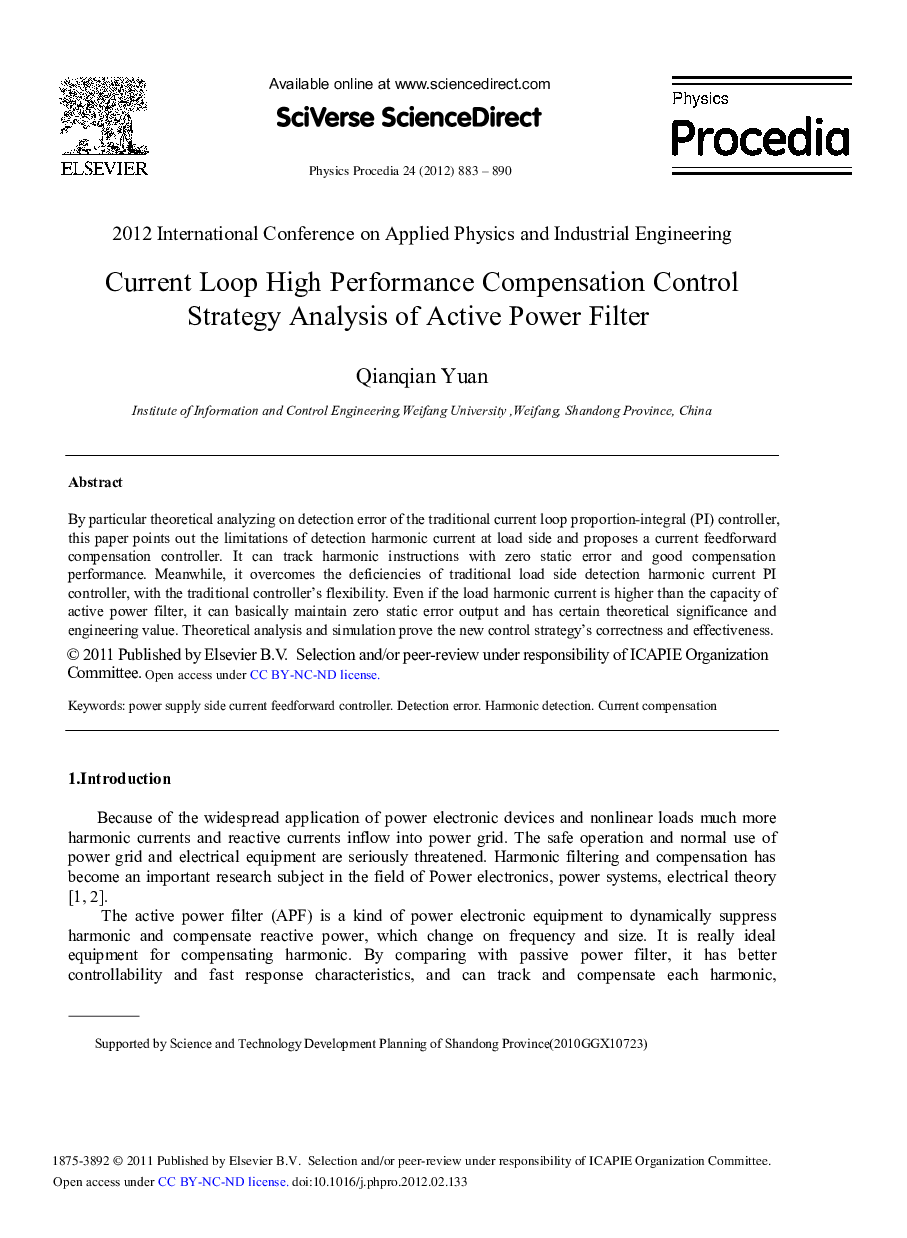

Current Loop High Performance Compensation Control Strategy Analysis of Active Power Filter

By particular theoretical analyzing on detection error of the traditional current loop proportion-integral (PI) controller, this paper points out the limitations of detection harmonic current at load side and proposes a current feedforward compensation controller. It can track harmonic instructions with zero static error and good compensation performance. Meanwhile, it overcomes the deficiencies of traditional load side detection harmonic current PI controller, with the traditional controller's flexibility. Even if the load harmonic current is higher than the capacity of active power filter, it can basically maintain zero static error output and has certain theoretical significance and engineering value. Theoretical analysis and simulation prove the new control strategy's correctness and effectiveness.
