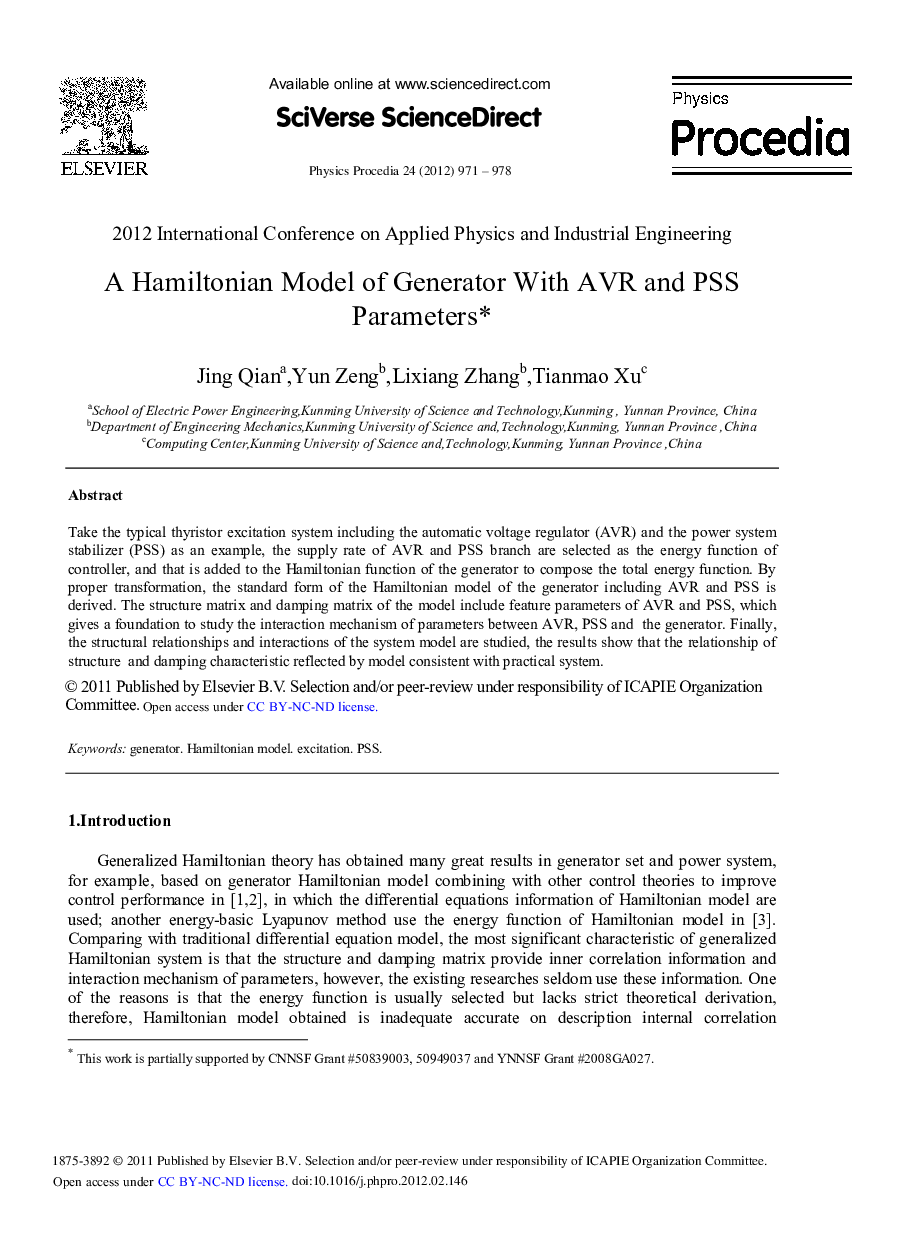

A Hamiltonian Model of Generator With AVR and PSS Parameters*

Take the typical thyristor excitation system including the automatic voltage regulator (AVR) and the power system stabilizer (PSS) as an example, the supply rate of AVR and PSS branch are selected as the energy function of controller, and that is added to the Hamiltonian function of the generator to compose the total energy function. By proper transformation, the standard form of the Hamiltonian model of the generator including AVR and PSS is derived. The structure matrix and damping matrix of the model include feature parameters of AVR and PSS, which gives a foundation to study the interaction mechanism of parameters between AVR, PSS and the generator. Finally, the structural relationships and interactions of the system model are studied, the results show that the relationship of structure and damping characteristic reflected by model consistent with practical system.
