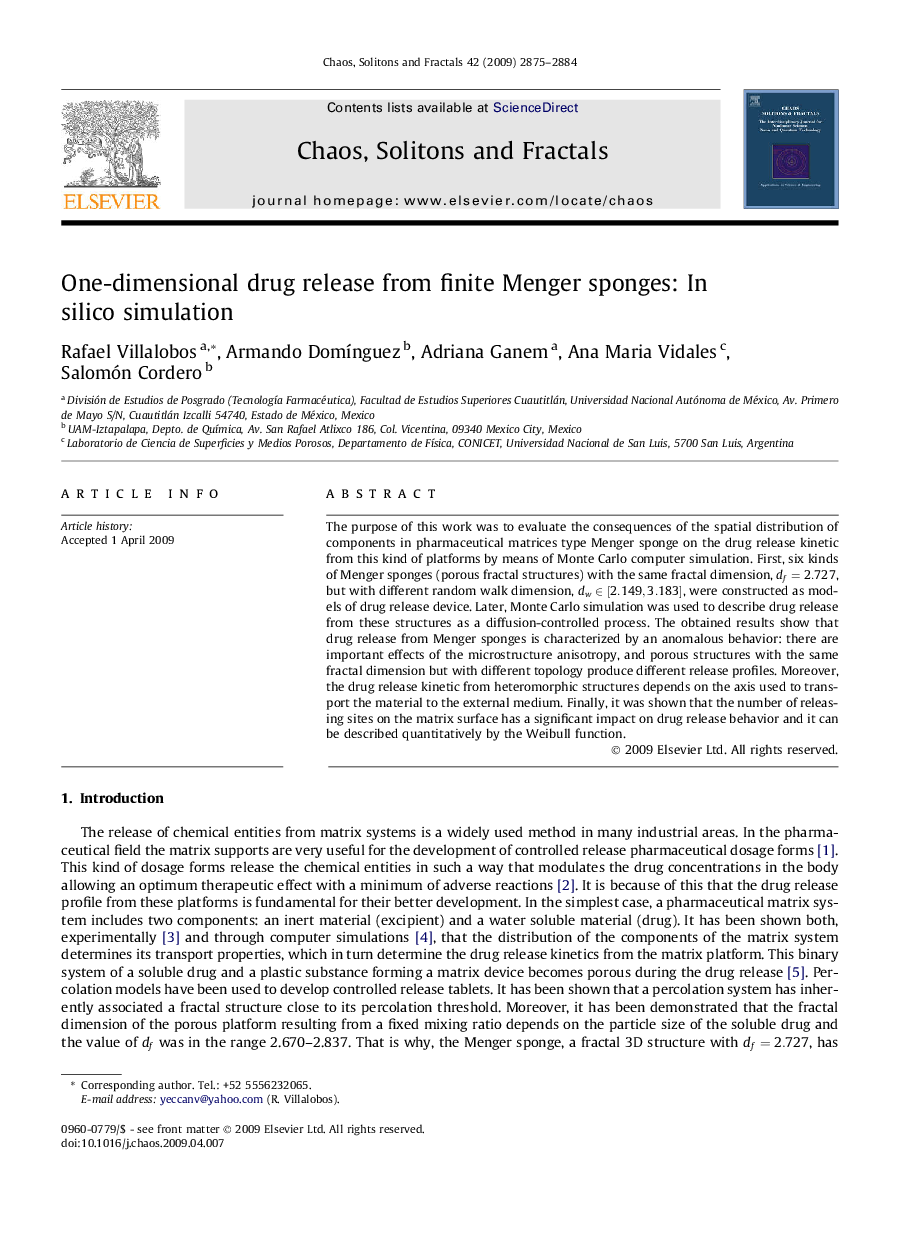

One-dimensional drug release from finite Menger sponges: In silico simulation

The purpose of this work was to evaluate the consequences of the spatial distribution of components in pharmaceutical matrices type Menger sponge on the drug release kinetic from this kind of platforms by means of Monte Carlo computer simulation. First, six kinds of Menger sponges (porous fractal structures) with the same fractal dimension, df=2.727df=2.727, but with different random walk dimension, dw∈[2.149,3.183]dw∈[2.149,3.183], were constructed as models of drug release device. Later, Monte Carlo simulation was used to describe drug release from these structures as a diffusion-controlled process. The obtained results show that drug release from Menger sponges is characterized by an anomalous behavior: there are important effects of the microstructure anisotropy, and porous structures with the same fractal dimension but with different topology produce different release profiles. Moreover, the drug release kinetic from heteromorphic structures depends on the axis used to transport the material to the external medium. Finally, it was shown that the number of releasing sites on the matrix surface has a significant impact on drug release behavior and it can be described quantitatively by the Weibull function.
