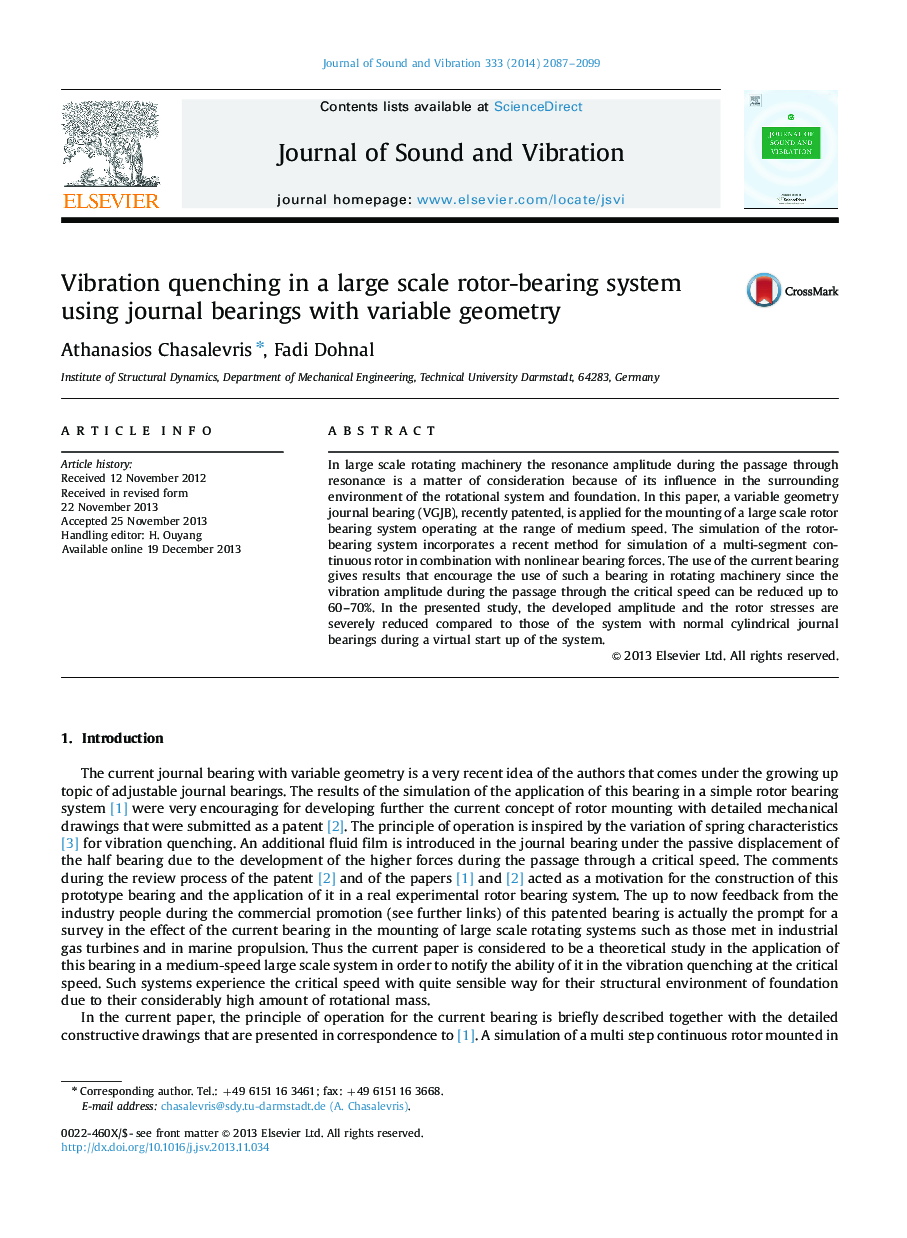

Vibration quenching in a large scale rotor-bearing system using journal bearings with variable geometry

•The presentation of the mechanism of a journal bearing with variable geometry.•The contribution of the current journal bearing in vibration quenching.•Simulation of rotor bearing systems with transformable bearings.

In large scale rotating machinery the resonance amplitude during the passage through resonance is a matter of consideration because of its influence in the surrounding environment of the rotational system and foundation. In this paper, a variable geometry journal bearing (VGJB), recently patented, is applied for the mounting of a large scale rotor bearing system operating at the range of medium speed. The simulation of the rotor-bearing system incorporates a recent method for simulation of a multi-segment continuous rotor in combination with nonlinear bearing forces. The use of the current bearing gives results that encourage the use of such a bearing in rotating machinery since the vibration amplitude during the passage through the critical speed can be reduced up to 60–70%. In the presented study, the developed amplitude and the rotor stresses are severely reduced compared to those of the system with normal cylindrical journal bearings during a virtual start up of the system.
