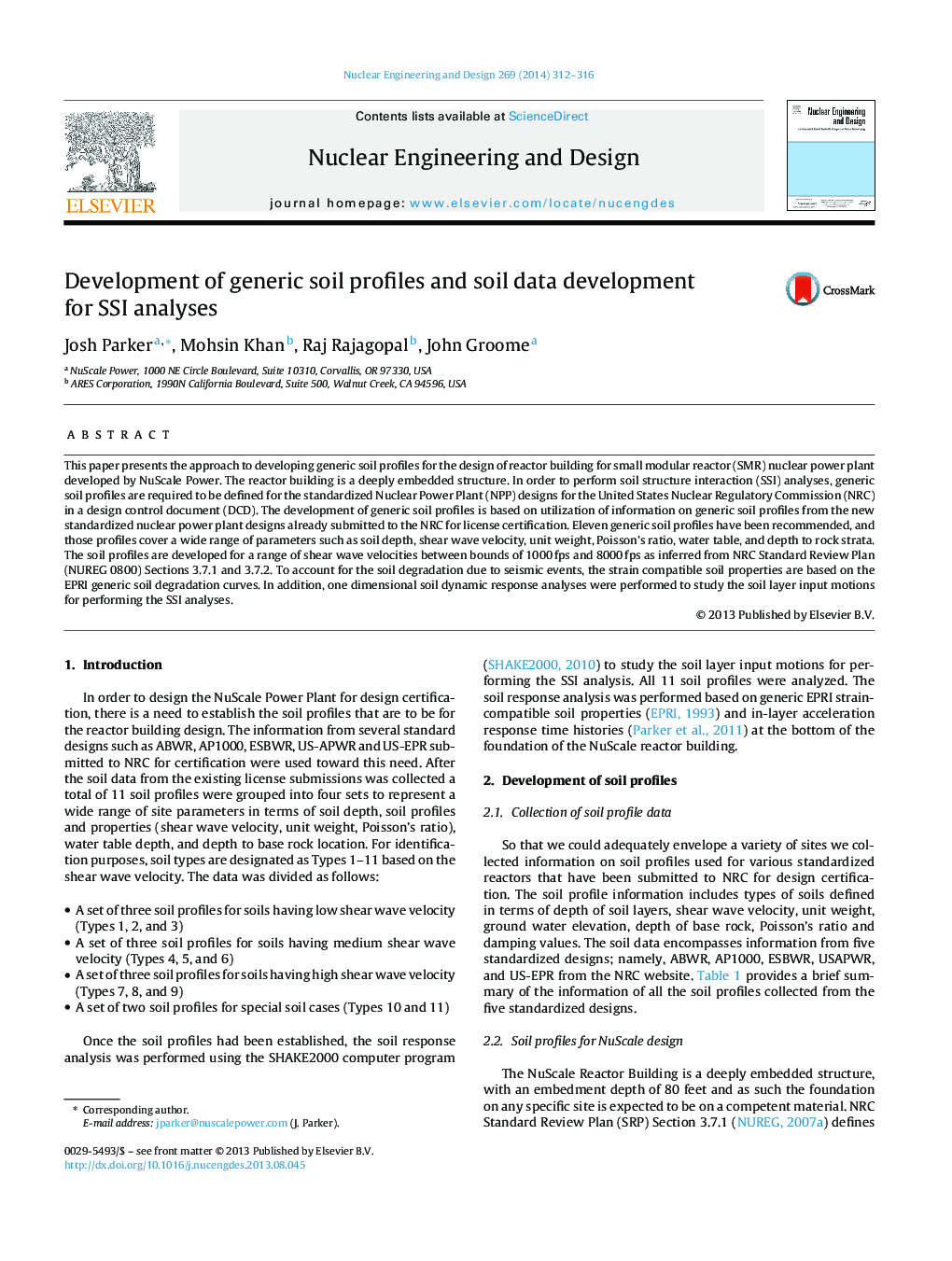

Development of generic soil profiles and soil data development for SSI analyses

This paper presents the approach to developing generic soil profiles for the design of reactor building for small modular reactor (SMR) nuclear power plant developed by NuScale Power. The reactor building is a deeply embedded structure. In order to perform soil structure interaction (SSI) analyses, generic soil profiles are required to be defined for the standardized Nuclear Power Plant (NPP) designs for the United States Nuclear Regulatory Commission (NRC) in a design control document (DCD). The development of generic soil profiles is based on utilization of information on generic soil profiles from the new standardized nuclear power plant designs already submitted to the NRC for license certification. Eleven generic soil profiles have been recommended, and those profiles cover a wide range of parameters such as soil depth, shear wave velocity, unit weight, Poisson's ratio, water table, and depth to rock strata. The soil profiles are developed for a range of shear wave velocities between bounds of 1000 fps and 8000 fps as inferred from NRC Standard Review Plan (NUREG 0800) Sections 3.7.1 and 3.7.2. To account for the soil degradation due to seismic events, the strain compatible soil properties are based on the EPRI generic soil degradation curves. In addition, one dimensional soil dynamic response analyses were performed to study the soil layer input motions for performing the SSI analyses.
