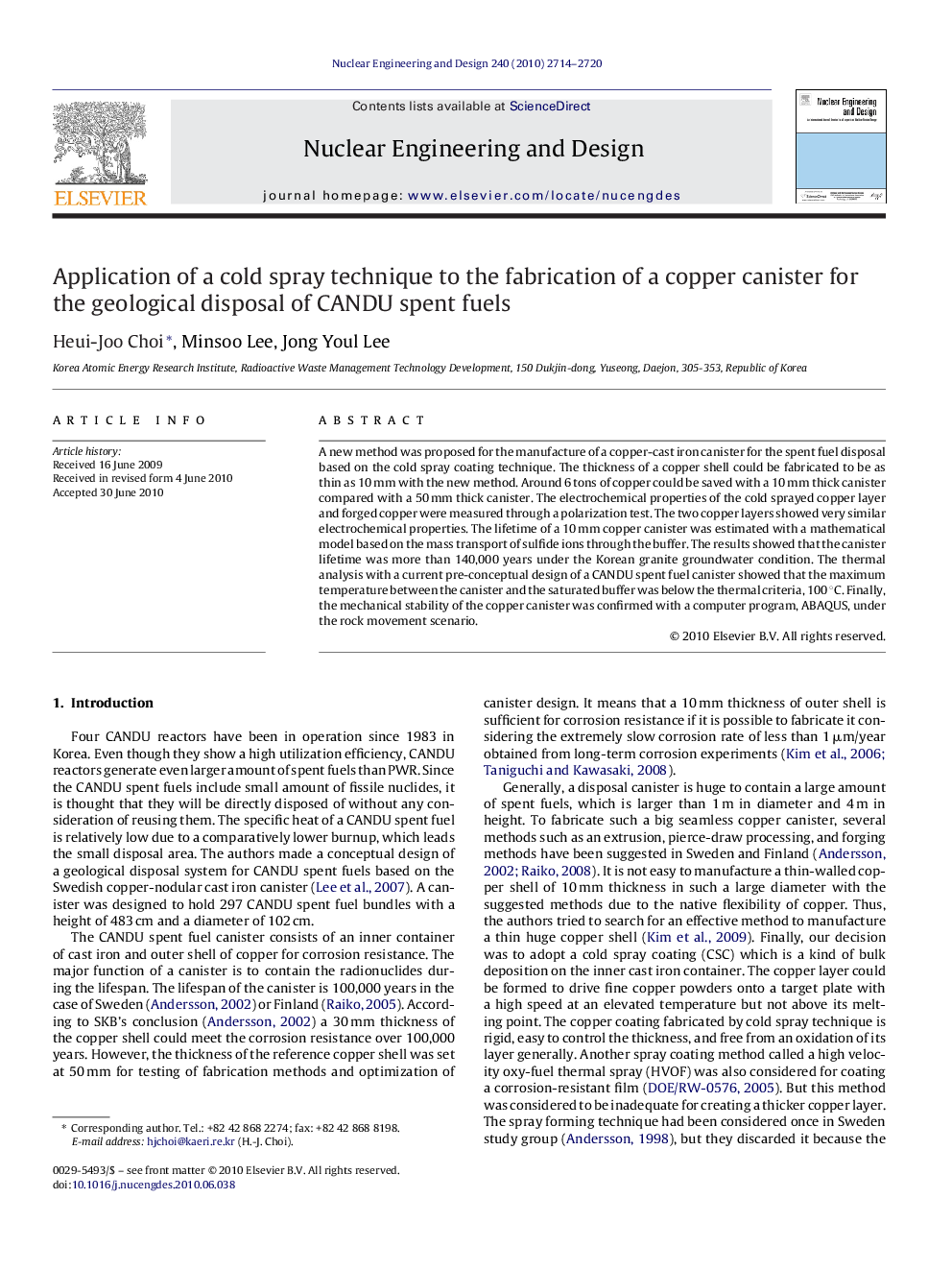

Application of a cold spray technique to the fabrication of a copper canister for the geological disposal of CANDU spent fuels

A new method was proposed for the manufacture of a copper-cast iron canister for the spent fuel disposal based on the cold spray coating technique. The thickness of a copper shell could be fabricated to be as thin as 10 mm with the new method. Around 6 tons of copper could be saved with a 10 mm thick canister compared with a 50 mm thick canister. The electrochemical properties of the cold sprayed copper layer and forged copper were measured through a polarization test. The two copper layers showed very similar electrochemical properties. The lifetime of a 10 mm copper canister was estimated with a mathematical model based on the mass transport of sulfide ions through the buffer. The results showed that the canister lifetime was more than 140,000 years under the Korean granite groundwater condition. The thermal analysis with a current pre-conceptual design of a CANDU spent fuel canister showed that the maximum temperature between the canister and the saturated buffer was below the thermal criteria, 100 °C. Finally, the mechanical stability of the copper canister was confirmed with a computer program, ABAQUS, under the rock movement scenario.
