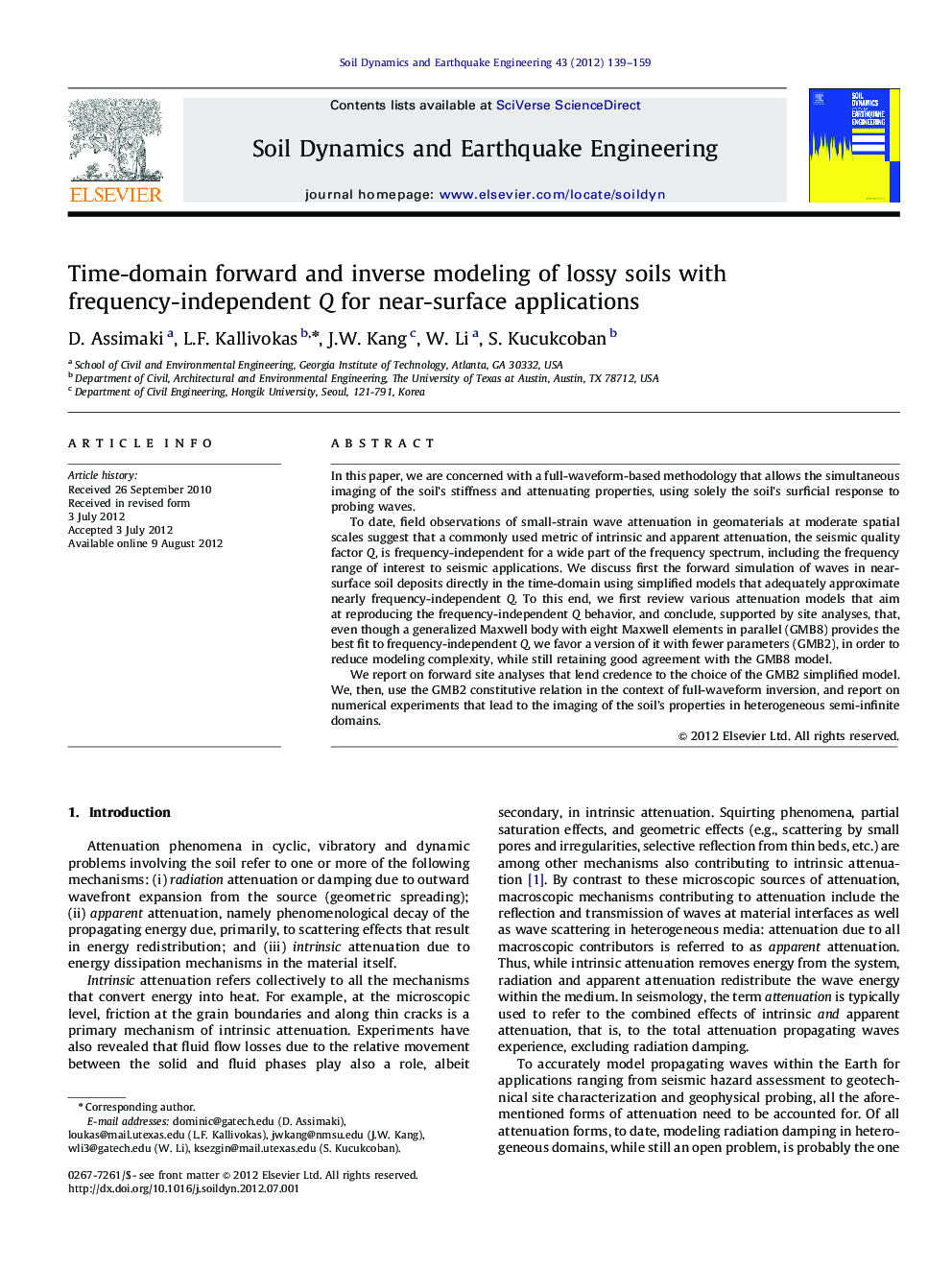

Time-domain forward and inverse modeling of lossy soils with frequency-independent Q for near-surface applications

In this paper, we are concerned with a full-waveform-based methodology that allows the simultaneous imaging of the soil's stiffness and attenuating properties, using solely the soil's surficial response to probing waves.To date, field observations of small-strain wave attenuation in geomaterials at moderate spatial scales suggest that a commonly used metric of intrinsic and apparent attenuation, the seismic quality factor Q, is frequency-independent for a wide part of the frequency spectrum, including the frequency range of interest to seismic applications. We discuss first the forward simulation of waves in near-surface soil deposits directly in the time-domain using simplified models that adequately approximate nearly frequency-independent Q. To this end, we first review various attenuation models that aim at reproducing the frequency-independent Q behavior, and conclude, supported by site analyses, that, even though a generalized Maxwell body with eight Maxwell elements in parallel (GMB8) provides the best fit to frequency-independent Q, we favor a version of it with fewer parameters (GMB2), in order to reduce modeling complexity, while still retaining good agreement with the GMB8 model.We report on forward site analyses that lend credence to the choice of the GMB2 simplified model. We, then, use the GMB2 constitutive relation in the context of full-waveform inversion, and report on numerical experiments that lead to the imaging of the soil's properties in heterogeneous semi-infinite domains.

► Imaging of near-surface deposits using full waveform inversion. ► Simultaneous profile reconstruction of modulus and attenuation. ► Forward and inverse wave modeling using a generalized Maxwell body and PMLs. ► Model validation based on forward site analyses.
