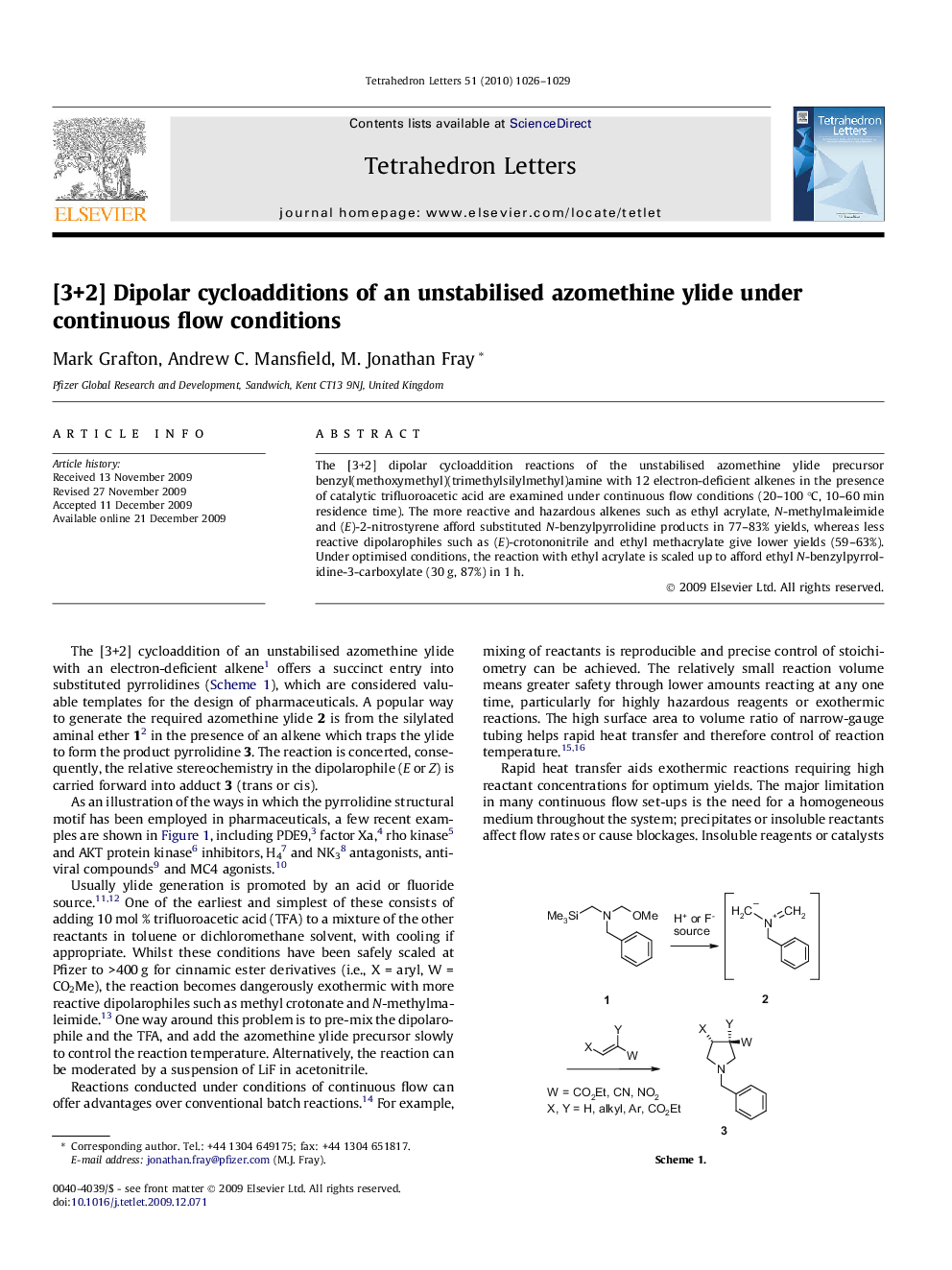

[3+2] Dipolar cycloadditions of an unstabilised azomethine ylide under continuous flow conditions

The [3+2] dipolar cycloaddition reactions of the unstabilised azomethine ylide precursor benzyl(methoxymethyl)(trimethylsilylmethyl)amine with 12 electron-deficient alkenes in the presence of catalytic trifluoroacetic acid are examined under continuous flow conditions (20-100 °C, 10-60 min residence time). The more reactive and hazardous alkenes such as ethyl acrylate, N-methylmaleimide and (E)-2-nitrostyrene afford substituted N-benzylpyrrolidine products in 77-83% yields, whereas less reactive dipolarophiles such as (E)-crotononitrile and ethyl methacrylate give lower yields (59-63%). Under optimised conditions, the reaction with ethyl acrylate is scaled up to afford ethyl N-benzylpyrrolidine-3-carboxylate (30 g, 87%) in 1 h.

Graphical abstractUnder continuous flow conditions an azomethine ylide precursor reacts with 12 electron-deficient alkenes to give the corresponding pyrrolidines. The most reactive and therefore hazardous dipolarophiles give the best yields.Download full-size image
