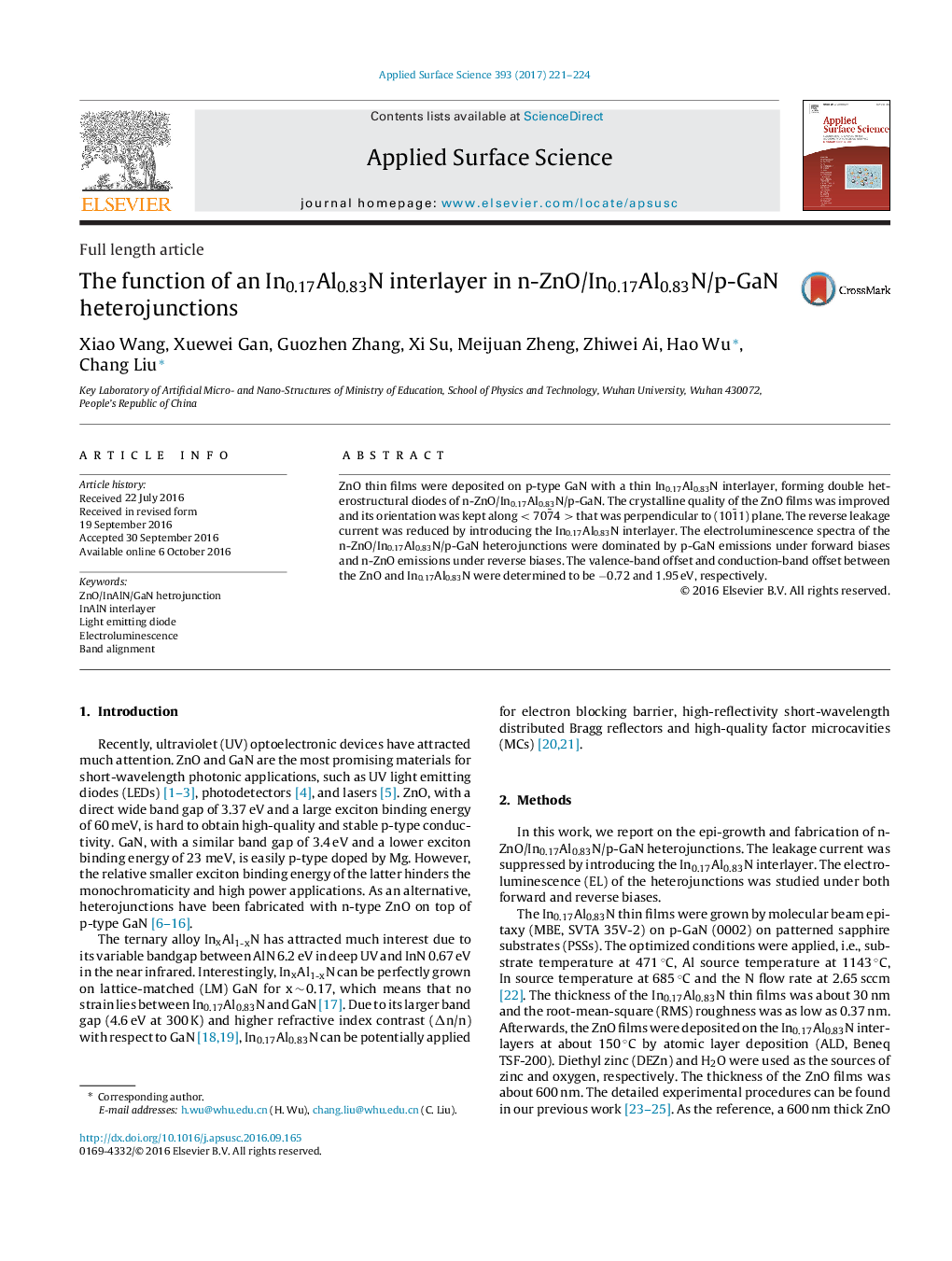

The function of an In0.17Al0.83N interlayer in n-ZnO/In0.17Al0.83N/p-GaN heterojunctions

ZnO thin films were deposited on p-type GaN with a thin In0.17Al0.83N interlayer, forming double heterostructural diodes of n-ZnO/In0.17Al0.83N/p-GaN. The crystalline quality of the ZnO films was improved and its orientation was kept along <707¯4> that was perpendicular to (101¯1) plane. The reverse leakage current was reduced by introducing the In0.17Al0.83N interlayer. The electroluminescence spectra of the n-ZnO/In0.17Al0.83N/p-GaN heterojunctions were dominated by p-GaN emissions under forward biases and n-ZnO emissions under reverse biases. The valence-band offset and conduction-band offset between the ZnO and In0.17Al0.83N were determined to be −0.72 and 1.95 eV, respectively.
