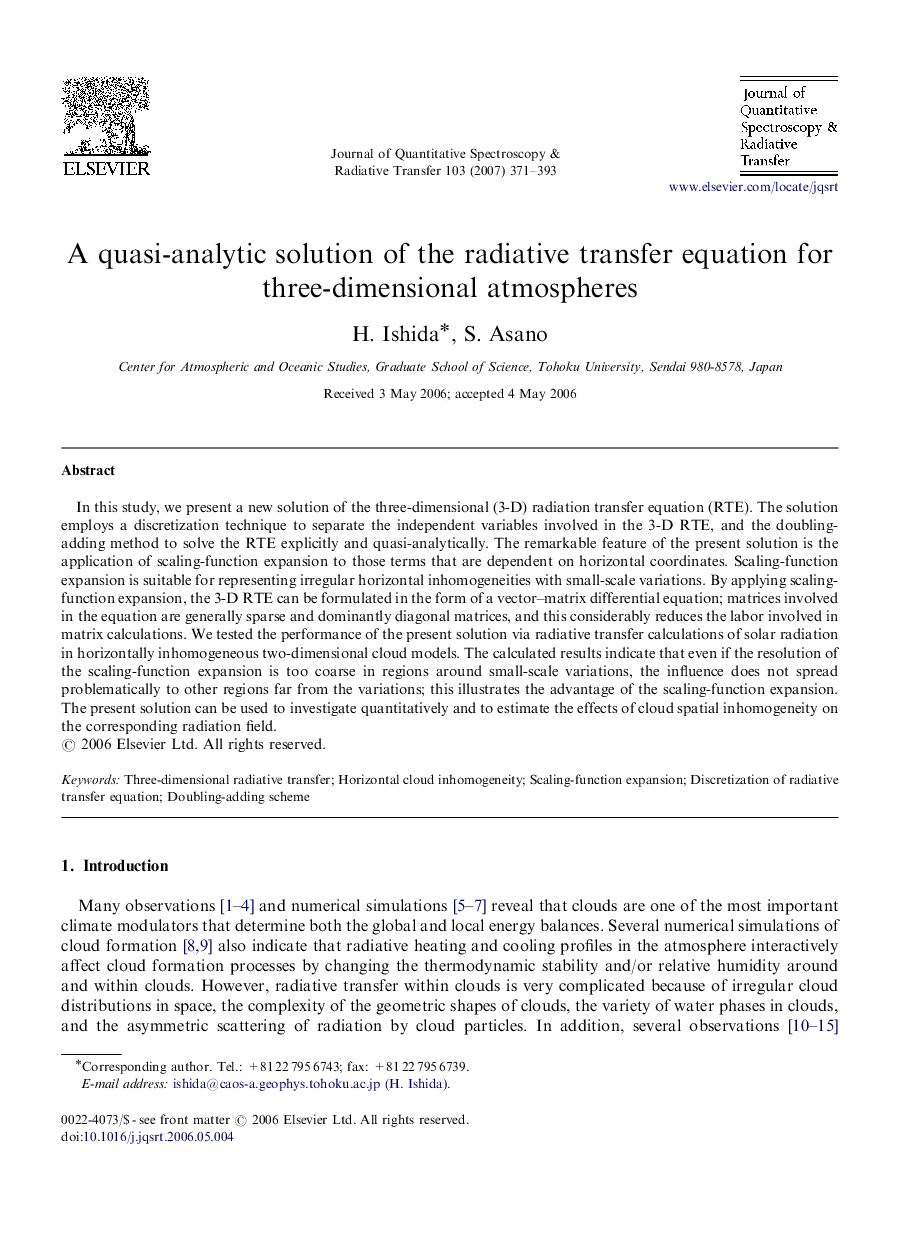

A quasi-analytic solution of the radiative transfer equation for three-dimensional atmospheres

In this study, we present a new solution of the three-dimensional (3-D) radiation transfer equation (RTE). The solution employs a discretization technique to separate the independent variables involved in the 3-D RTE, and the doubling-adding method to solve the RTE explicitly and quasi-analytically. The remarkable feature of the present solution is the application of scaling-function expansion to those terms that are dependent on horizontal coordinates. Scaling-function expansion is suitable for representing irregular horizontal inhomogeneities with small-scale variations. By applying scaling-function expansion, the 3-D RTE can be formulated in the form of a vector-matrix differential equation; matrices involved in the equation are generally sparse and dominantly diagonal matrices, and this considerably reduces the labor involved in matrix calculations. We tested the performance of the present solution via radiative transfer calculations of solar radiation in horizontally inhomogeneous two-dimensional cloud models. The calculated results indicate that even if the resolution of the scaling-function expansion is too coarse in regions around small-scale variations, the influence does not spread problematically to other regions far from the variations; this illustrates the advantage of the scaling-function expansion. The present solution can be used to investigate quantitatively and to estimate the effects of cloud spatial inhomogeneity on the corresponding radiation field.
