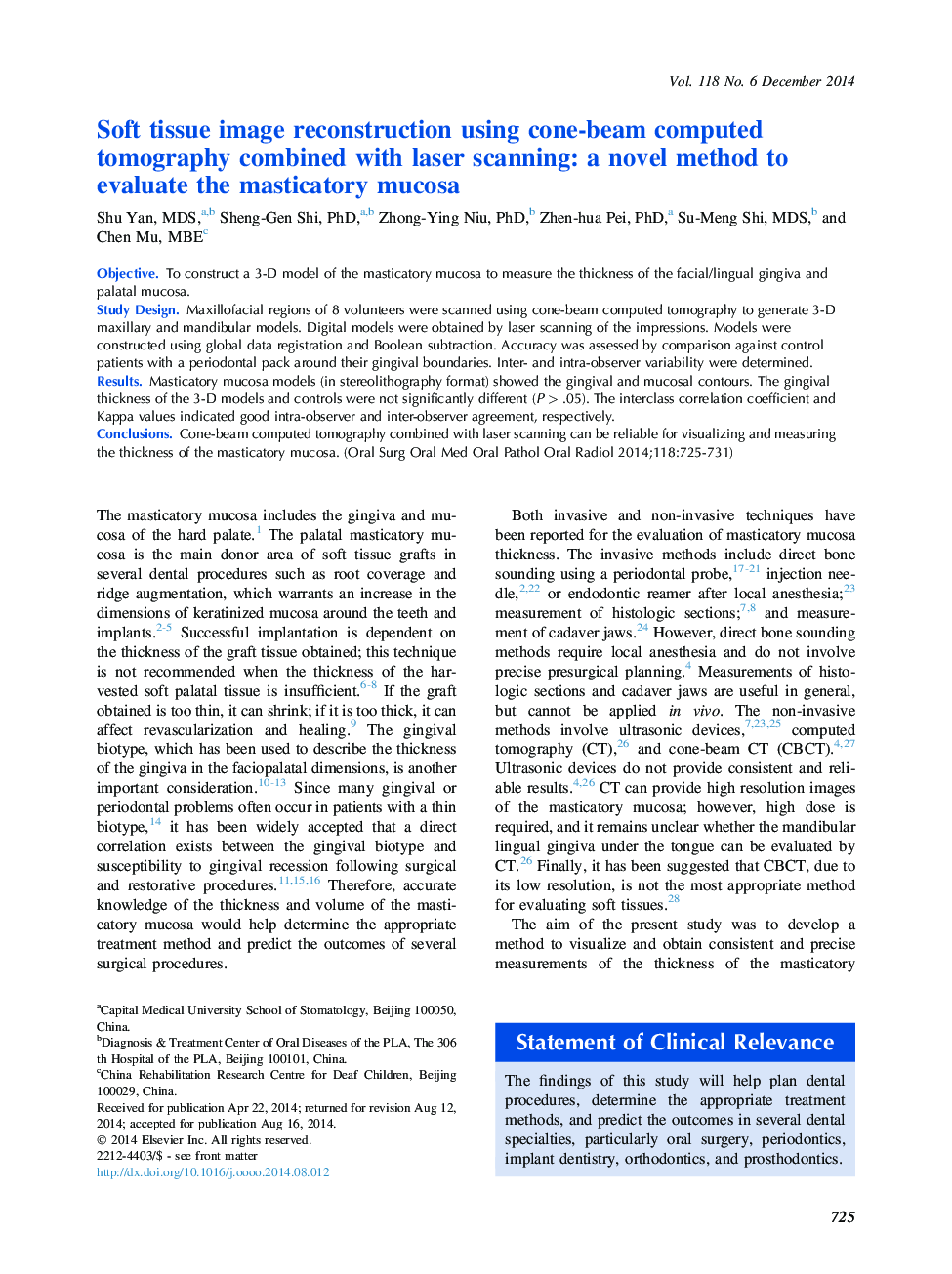

Oral and maxillofacial radiologySoft tissue image reconstruction using cone-beam computed tomography combined with laser scanning: a novel method to evaluate the masticatory mucosa

ObjectiveTo construct a 3-D model of the masticatory mucosa to measure the thickness of the facial/lingual gingiva and palatal mucosa.Study DesignMaxillofacial regions of 8 volunteers were scanned using cone-beam computed tomography to generate 3-D maxillary and mandibular models. Digital models were obtained by laser scanning of the impressions. Models were constructed using global data registration and Boolean subtraction. Accuracy was assessed by comparison against control patients with a periodontal pack around their gingival boundaries. Inter- and intra-observer variability were determined.ResultsMasticatory mucosa models (in stereolithography format) showed the gingival and mucosal contours. The gingival thickness of the 3-D models and controls were not significantly different (P > .05). The interclass correlation coefficient and Kappa values indicated good intra-observer and inter-observer agreement, respectively.ConclusionsCone-beam computed tomography combined with laser scanning can be reliable for visualizing and measuring the thickness of the masticatory mucosa.
