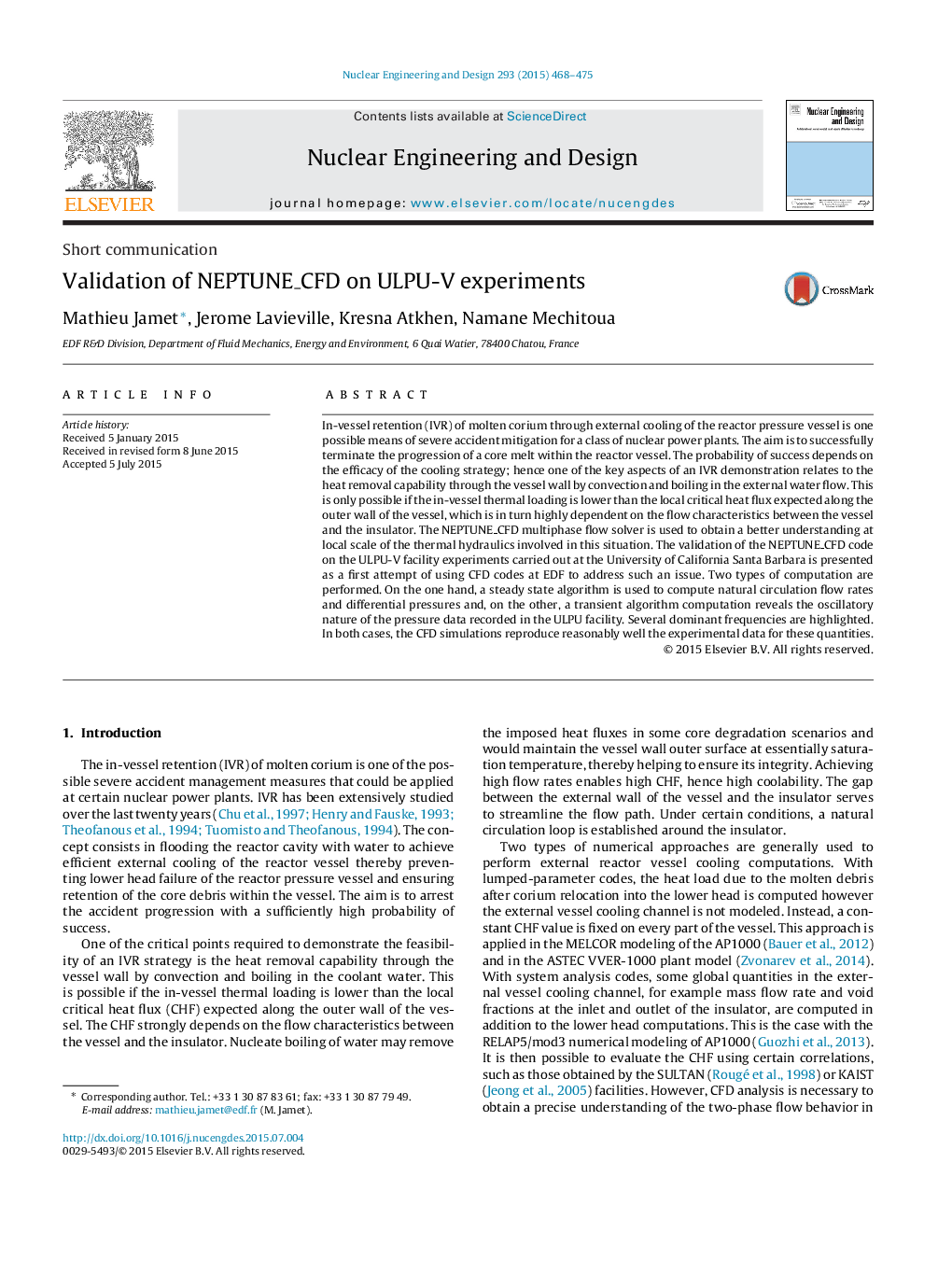

Validation of NEPTUNE_CFD on ULPU-V experiments

In-vessel retention (IVR) of molten corium through external cooling of the reactor pressure vessel is one possible means of severe accident mitigation for a class of nuclear power plants. The aim is to successfully terminate the progression of a core melt within the reactor vessel. The probability of success depends on the efficacy of the cooling strategy; hence one of the key aspects of an IVR demonstration relates to the heat removal capability through the vessel wall by convection and boiling in the external water flow. This is only possible if the in-vessel thermal loading is lower than the local critical heat flux expected along the outer wall of the vessel, which is in turn highly dependent on the flow characteristics between the vessel and the insulator. The NEPTUNE_CFD multiphase flow solver is used to obtain a better understanding at local scale of the thermal hydraulics involved in this situation. The validation of the NEPTUNE_CFD code on the ULPU-V facility experiments carried out at the University of California Santa Barbara is presented as a first attempt of using CFD codes at EDF to address such an issue. Two types of computation are performed. On the one hand, a steady state algorithm is used to compute natural circulation flow rates and differential pressures and, on the other, a transient algorithm computation reveals the oscillatory nature of the pressure data recorded in the ULPU facility. Several dominant frequencies are highlighted. In both cases, the CFD simulations reproduce reasonably well the experimental data for these quantities.
