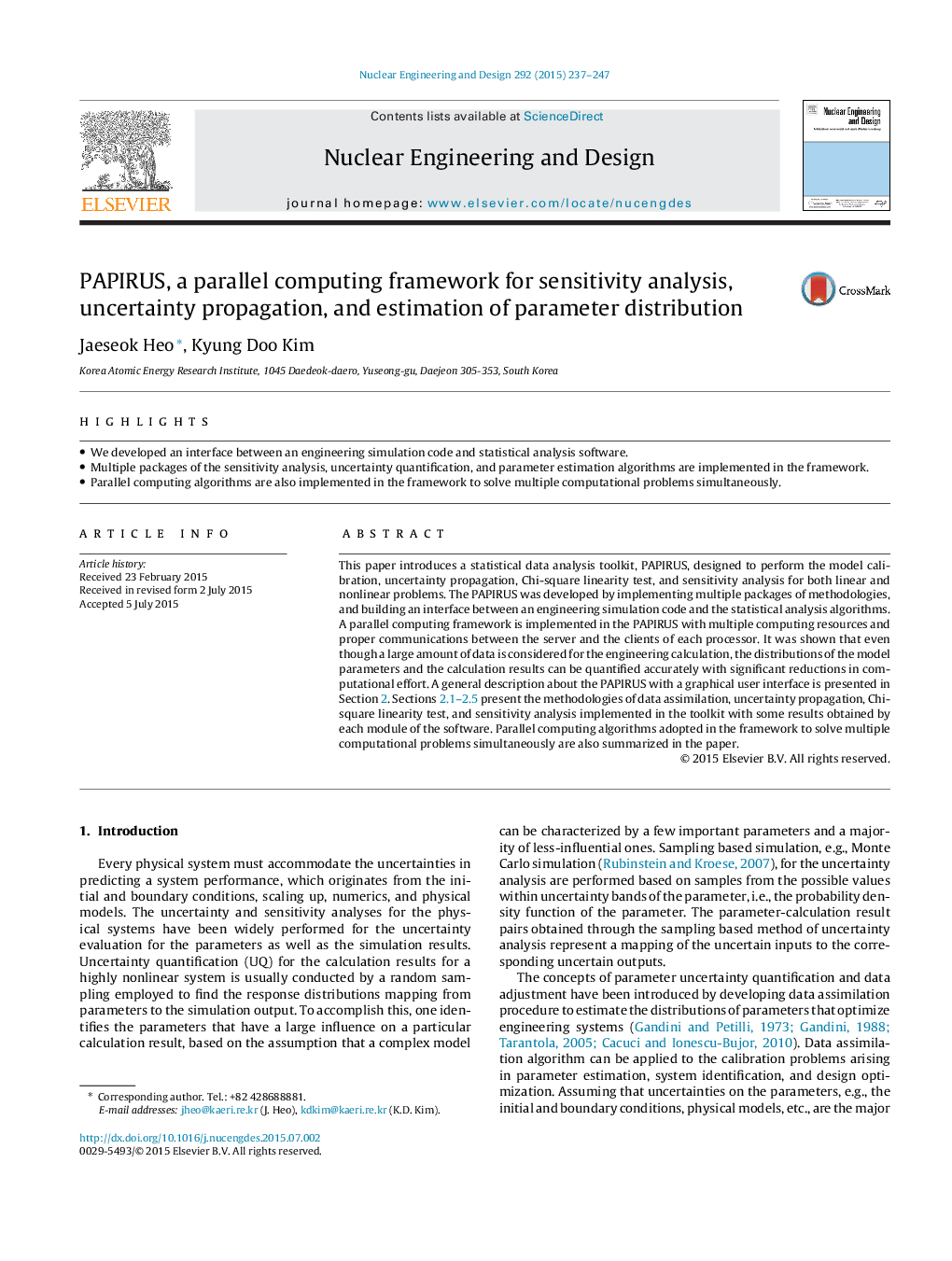

PAPIRUS, a parallel computing framework for sensitivity analysis, uncertainty propagation, and estimation of parameter distribution

This paper introduces a statistical data analysis toolkit, PAPIRUS, designed to perform the model calibration, uncertainty propagation, Chi-square linearity test, and sensitivity analysis for both linear and nonlinear problems. The PAPIRUS was developed by implementing multiple packages of methodologies, and building an interface between an engineering simulation code and the statistical analysis algorithms. A parallel computing framework is implemented in the PAPIRUS with multiple computing resources and proper communications between the server and the clients of each processor. It was shown that even though a large amount of data is considered for the engineering calculation, the distributions of the model parameters and the calculation results can be quantified accurately with significant reductions in computational effort. A general description about the PAPIRUS with a graphical user interface is presented in Section 2. Sections 2.1 Data assimilation - deterministic, 2.2 Data assimilation - probabilistic, 2.3 Uncertainty propagation, 2.4 Chi-square linearity test, 2.5 Sensitivity analysis present the methodologies of data assimilation, uncertainty propagation, Chi-square linearity test, and sensitivity analysis implemented in the toolkit with some results obtained by each module of the software. Parallel computing algorithms adopted in the framework to solve multiple computational problems simultaneously are also summarized in the paper.
