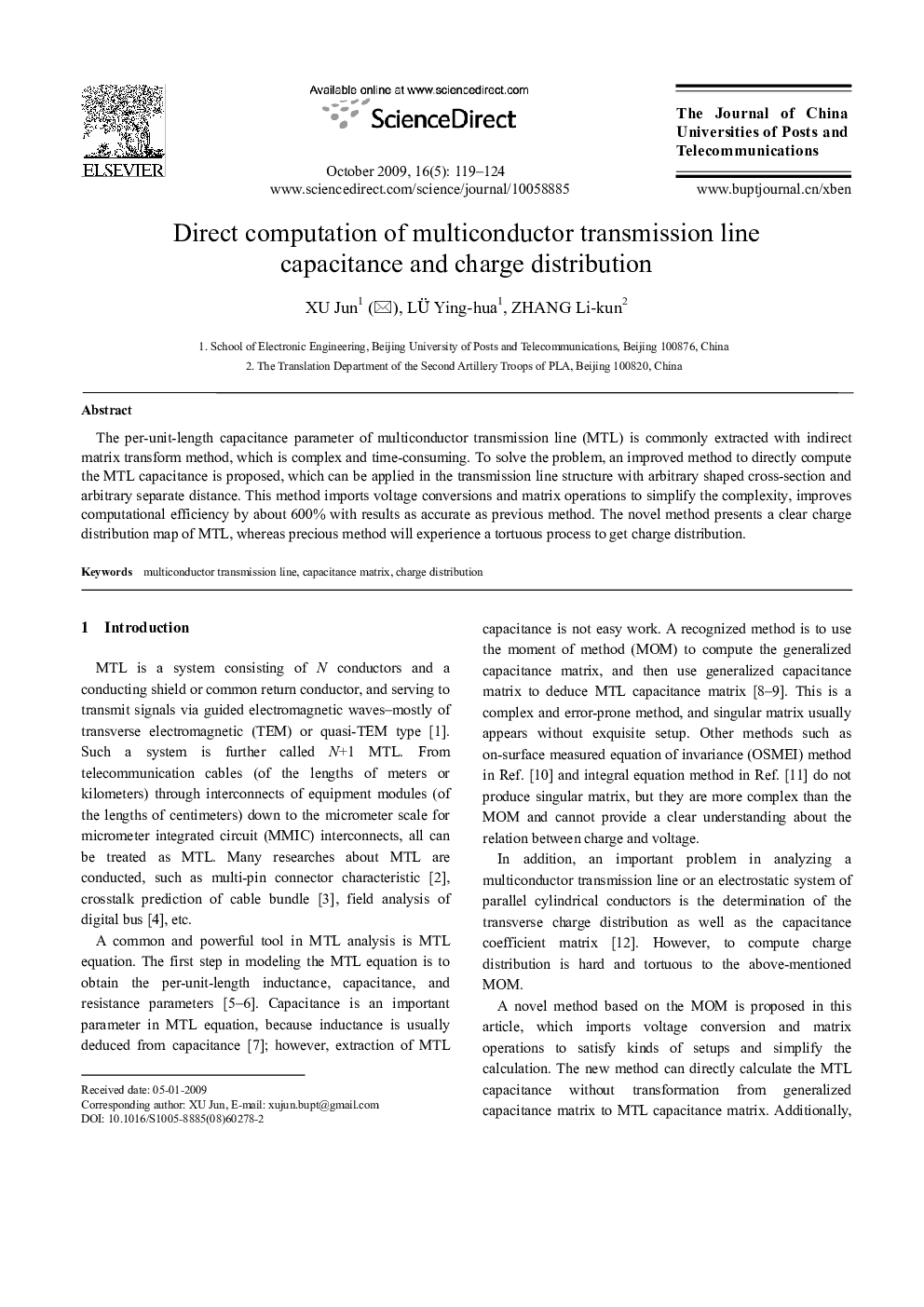

Direct computation of multiconductor transmission line capacitance and charge distribution

The per-unit-length capacitance parameter of multiconductor transmission line (MTL) is commonly extracted with indirect matrix transform method, which is complex and time-consuming. To solve the problem, an improved method to directly compute the MTL capacitance is proposed, which can be applied in the transmission line structure with arbitrary shaped cross-section and arbitrary separate distance. This method imports voltage conversions and matrix operations to simplify the complexity, improves computational efficiency by about 600% with results as accurate as previous method. The novel method presents a clear charge distribution map of MTL, whereas precious method will experience a tortuous process to get charge distribution.
