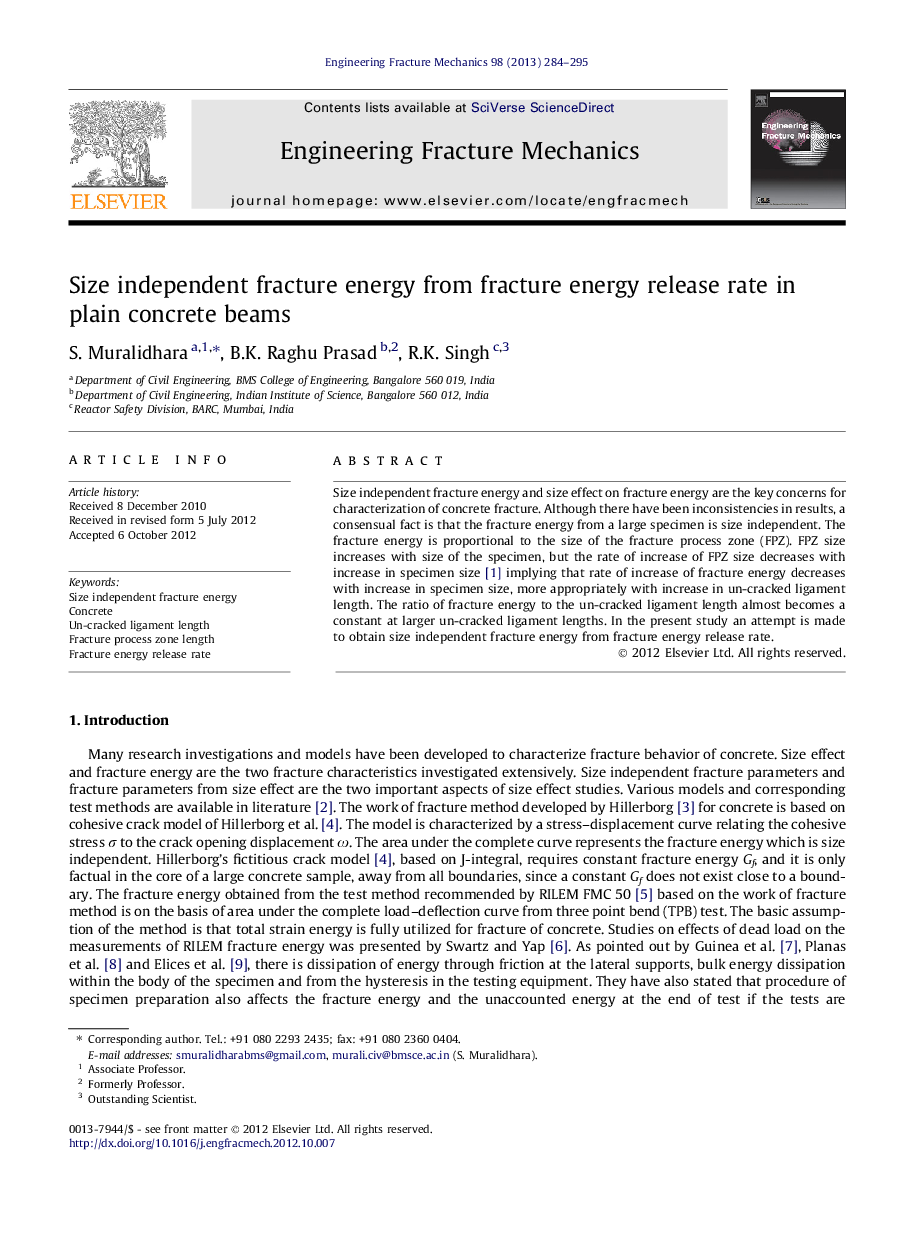

Size independent fracture energy from fracture energy release rate in plain concrete beams

Size independent fracture energy and size effect on fracture energy are the key concerns for characterization of concrete fracture. Although there have been inconsistencies in results, a consensual fact is that the fracture energy from a large specimen is size independent. The fracture energy is proportional to the size of the fracture process zone (FPZ). FPZ size increases with size of the specimen, but the rate of increase of FPZ size decreases with increase in specimen size [1] implying that rate of increase of fracture energy decreases with increase in specimen size, more appropriately with increase in un-cracked ligament length. The ratio of fracture energy to the un-cracked ligament length almost becomes a constant at larger un-cracked ligament lengths. In the present study an attempt is made to obtain size independent fracture energy from fracture energy release rate.

► A new method is proposed to find size independent fracture energy of concrete. ► Only RILEM fracture energies and beam ligament lengths are used. ► Single fracture energy is estimated using beams of different ligament lengths. ► It is shown that ligament length and FPZ are aptly related.
