| Article ID | Journal | Published Year | Pages | File Type |
|---|---|---|---|---|
| 781528 | International Journal of Fatigue | 2009 | 9 Pages |
Abstract

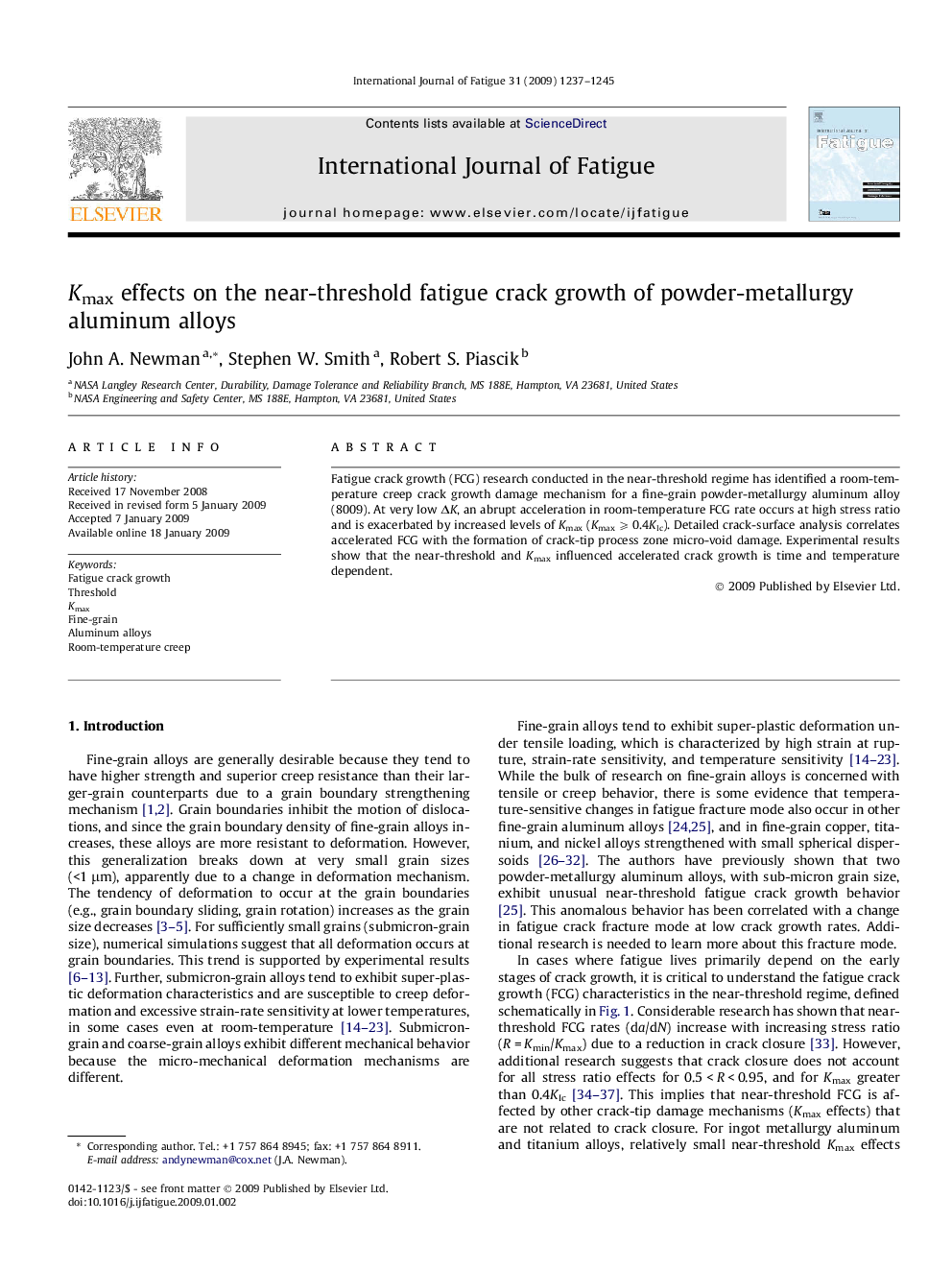

Fatigue crack growth (FCG) research conducted in the near-threshold regime has identified a room-temperature creep crack growth damage mechanism for a fine-grain powder-metallurgy aluminum alloy (8009). At very low ΔK, an abrupt acceleration in room-temperature FCG rate occurs at high stress ratio and is exacerbated by increased levels of Kmax (Kmax ⩾ 0.4KIc). Detailed crack-surface analysis correlates accelerated FCG with the formation of crack-tip process zone micro-void damage. Experimental results show that the near-threshold and Kmax influenced accelerated crack growth is time and temperature dependent.
Related Topics
Physical Sciences and Engineering
Engineering
Mechanical Engineering
Authors
John A. Newman, Stephen W. Smith, Robert S. Piascik,
