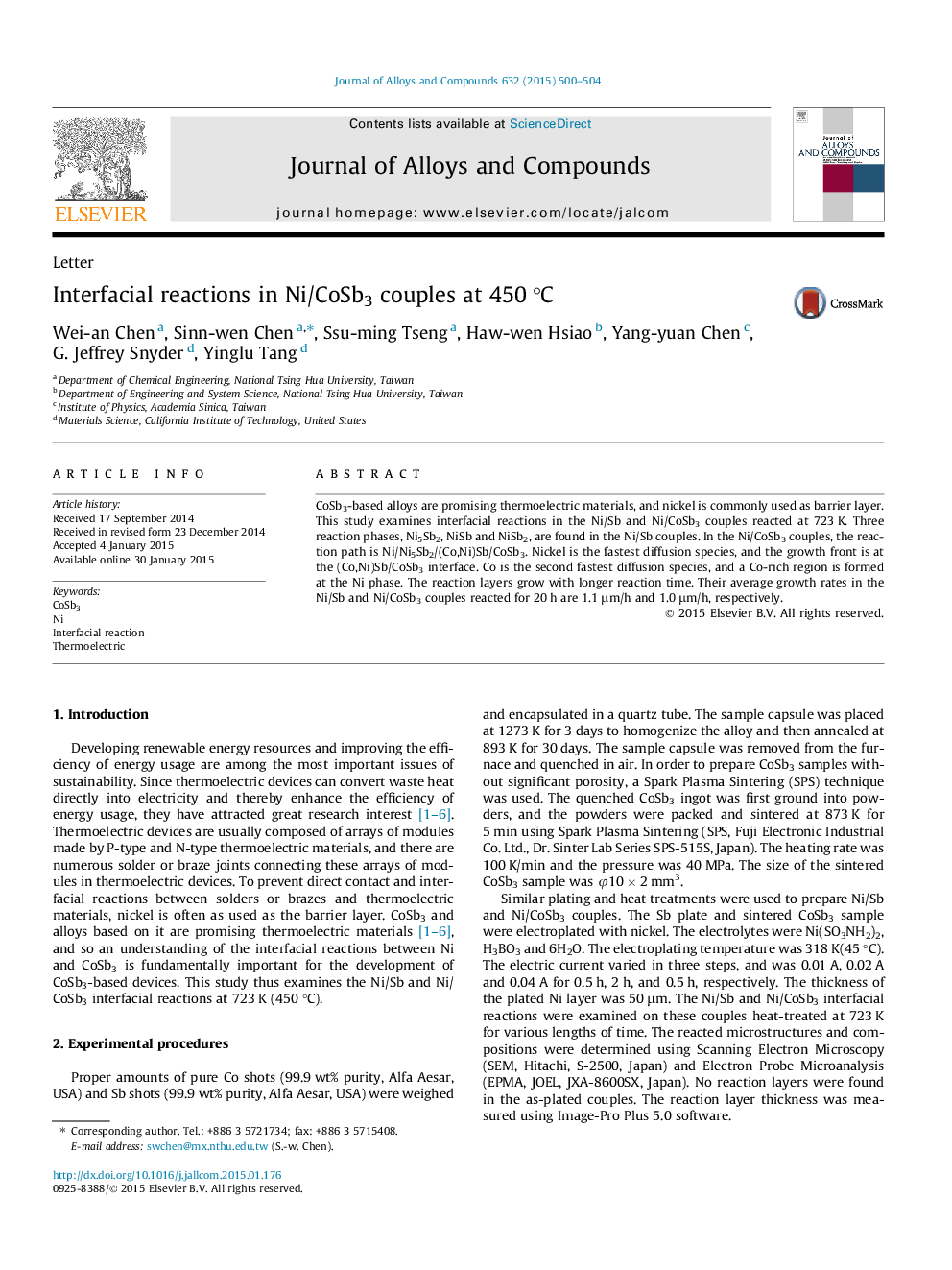

Interfacial reactions in Ni/CoSb3 couples at 450 °C

CoSb3-based alloys are promising thermoelectric materials, and nickel is commonly used as barrier layer. This study examines interfacial reactions in the Ni/Sb and Ni/CoSb3 couples reacted at 723 K. Three reaction phases, Ni5Sb2, NiSb and NiSb2, are found in the Ni/Sb couples. In the Ni/CoSb3 couples, the reaction path is Ni/Ni5Sb2/(Co,Ni)Sb/CoSb3. Nickel is the fastest diffusion species, and the growth front is at the (Co,Ni)Sb/CoSb3 interface. Co is the second fastest diffusion species, and a Co-rich region is formed at the Ni phase. The reaction layers grow with longer reaction time. Their average growth rates in the Ni/Sb and Ni/CoSb3 couples reacted for 20 h are 1.1 μm/h and 1.0 μm/h, respectively.
