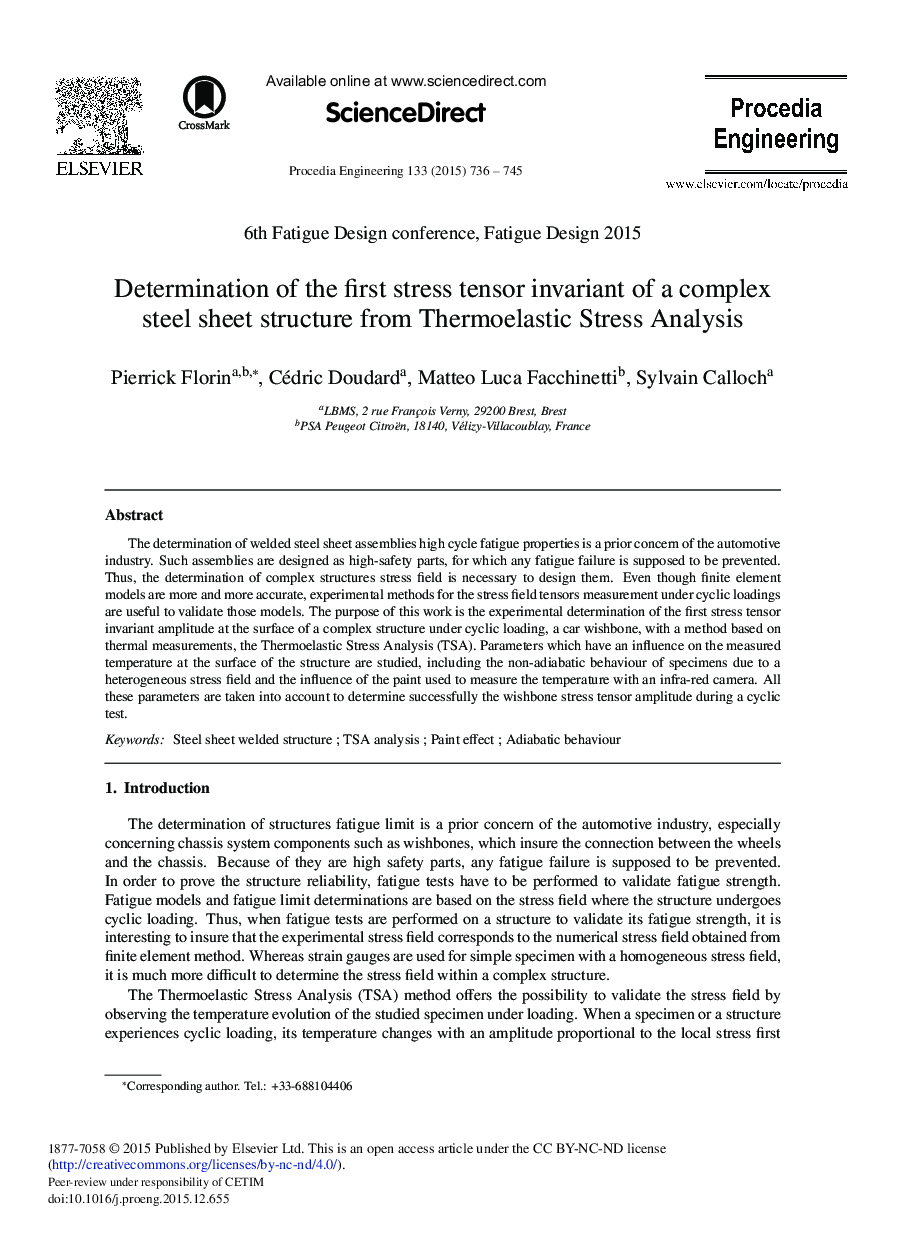

Determination of the First Stress Tensor Invariant of a Complex Steel Sheet Structure from Thermoelastic Stress Analysis

The determination of welded steel sheet assemblies high cycle fatigue properties is a prior concern of the automotive industry. Such assemblies are designed as high-safety parts, for which any fatigue failure is supposed to be prevented. Thus, the determination of complex structures stress field is necessary to design them. Even though finite element models are more and more accurate, experimental methods for the stress field tensors measurement under cyclic loadings are useful to validate those models. The purpose of this work is the experimental determination of the first stress tensor invariant amplitude at the surface of a complex structure under cyclic loading, a car wishbone, with a method based on thermal measurements, the Thermoelastic Stress Analysis (TSA). Parameters which have an influence on the measured temperature at the surface of the structure are studied, including the non-adiabatic behaviour of specimens due to a heterogeneous stress field and the influence of the paint used to measure the temperature with an infra-red camera. All these parameters are taken into account to determine successfully the wishbone stress tensor amplitude during a cyclic test.
