Article ID | Journal | Published Year | Pages | File Type |
---|---|---|---|---|
1567289 | Journal of Nuclear Materials | 2010 | 6 Pages |

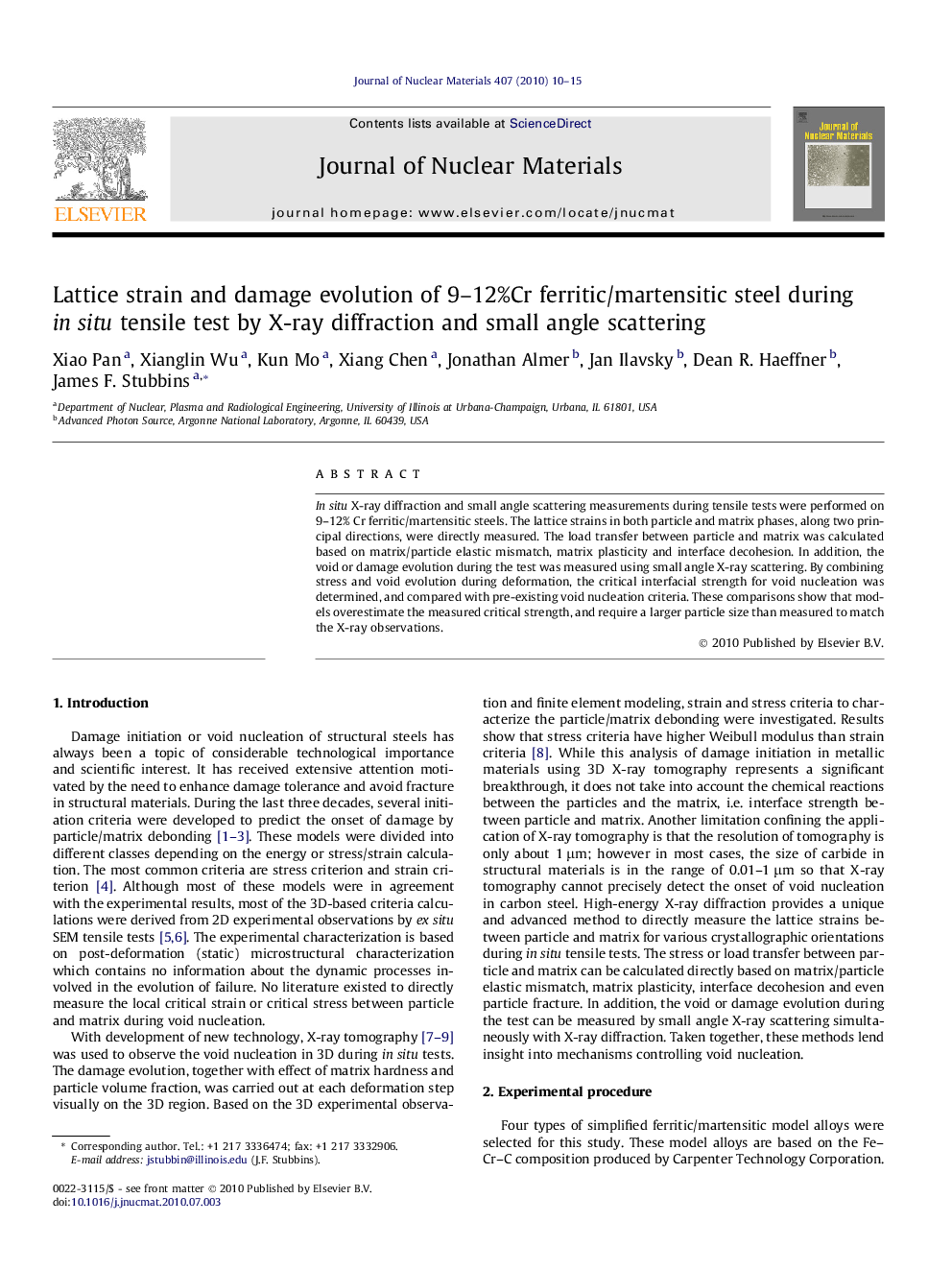

Abstract
In situ X-ray diffraction and small angle scattering measurements during tensile tests were performed on 9-12% Cr ferritic/martensitic steels. The lattice strains in both particle and matrix phases, along two principal directions, were directly measured. The load transfer between particle and matrix was calculated based on matrix/particle elastic mismatch, matrix plasticity and interface decohesion. In addition, the void or damage evolution during the test was measured using small angle X-ray scattering. By combining stress and void evolution during deformation, the critical interfacial strength for void nucleation was determined, and compared with pre-existing void nucleation criteria. These comparisons show that models overestimate the measured critical strength, and require a larger particle size than measured to match the X-ray observations.
Related Topics
Physical Sciences and Engineering
Energy
Nuclear Energy and Engineering
Authors
Xiao Pan, Xianglin Wu, Kun Mo, Xiang Chen, Jonathan Almer, Jan Ilavsky, Dean R. Haeffner, James F. Stubbins,
