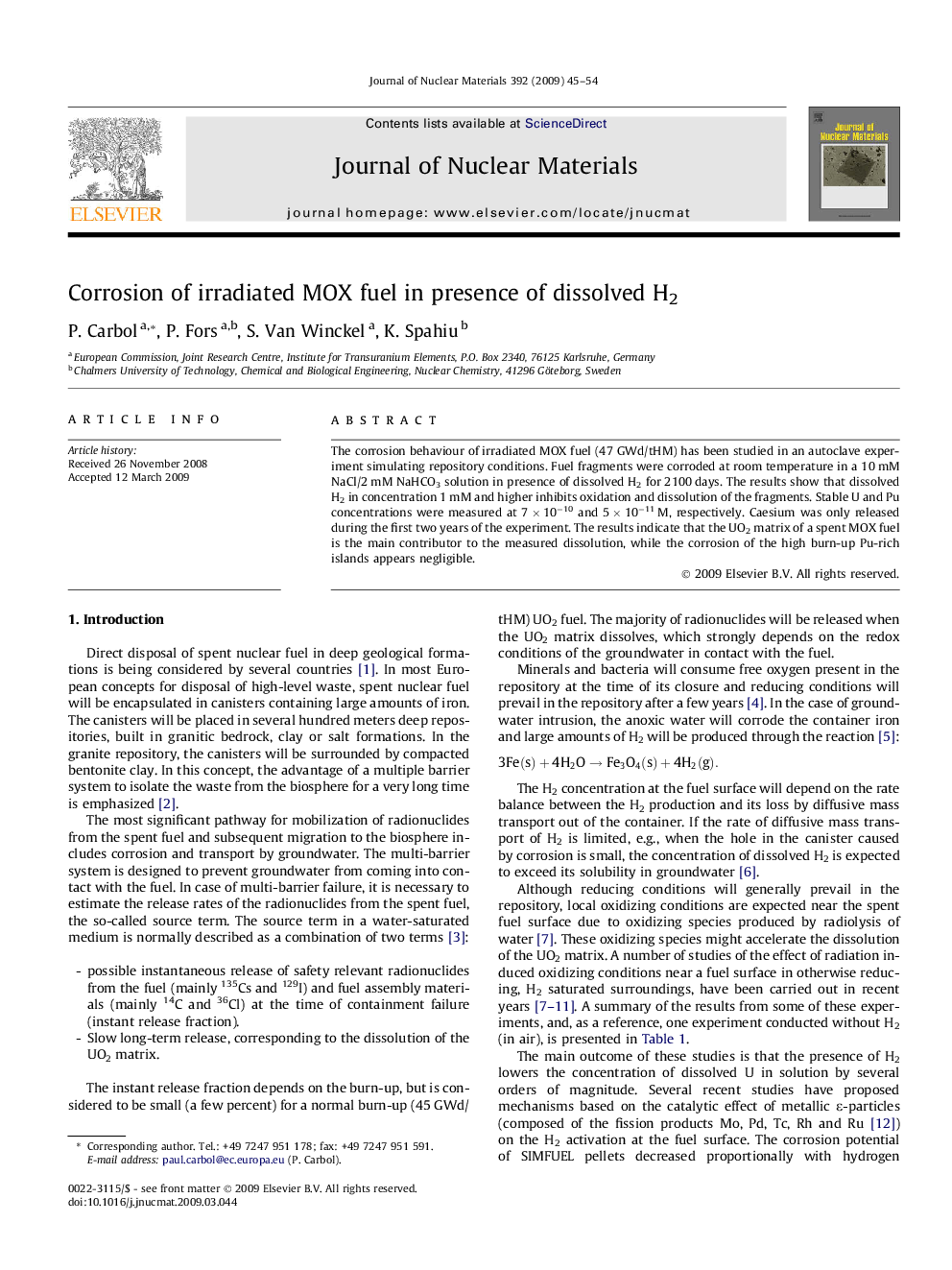

Corrosion of irradiated MOX fuel in presence of dissolved H2

The corrosion behaviour of irradiated MOX fuel (47 GWd/tHM) has been studied in an autoclave experiment simulating repository conditions. Fuel fragments were corroded at room temperature in a 10 mM NaCl/2 mM NaHCO3 solution in presence of dissolved H2 for 2100 days. The results show that dissolved H2 in concentration 1 mM and higher inhibits oxidation and dissolution of the fragments. Stable U and Pu concentrations were measured at 7 × 10−10 and 5 × 10−11 M, respectively. Caesium was only released during the first two years of the experiment. The results indicate that the UO2 matrix of a spent MOX fuel is the main contributor to the measured dissolution, while the corrosion of the high burn-up Pu-rich islands appears negligible.
