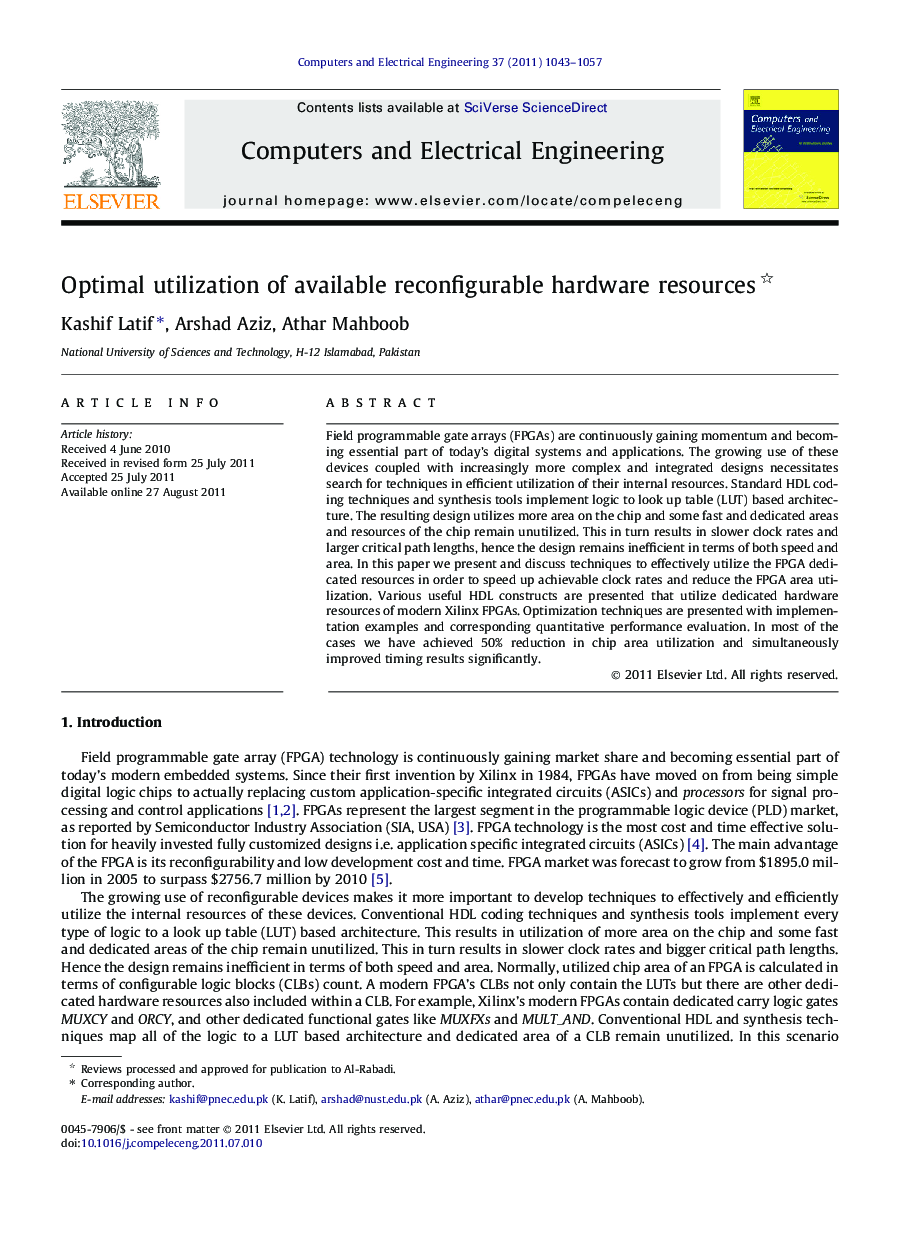

Optimal utilization of available reconfigurable hardware resources

Field programmable gate arrays (FPGAs) are continuously gaining momentum and becoming essential part of today’s digital systems and applications. The growing use of these devices coupled with increasingly more complex and integrated designs necessitates search for techniques in efficient utilization of their internal resources. Standard HDL coding techniques and synthesis tools implement logic to look up table (LUT) based architecture. The resulting design utilizes more area on the chip and some fast and dedicated areas and resources of the chip remain unutilized. This in turn results in slower clock rates and larger critical path lengths, hence the design remains inefficient in terms of both speed and area. In this paper we present and discuss techniques to effectively utilize the FPGA dedicated resources in order to speed up achievable clock rates and reduce the FPGA area utilization. Various useful HDL constructs are presented that utilize dedicated hardware resources of modern Xilinx FPGAs. Optimization techniques are presented with implementation examples and corresponding quantitative performance evaluation. In most of the cases we have achieved 50% reduction in chip area utilization and simultaneously improved timing results significantly.

Graphical abstractFigure optionsDownload full-size imageDownload as PowerPoint slideHighlights► We present techniques to effectively utilize the internal resources of FPGAs. ► Optimizations are presented with implementation examples and numerical evaluations. ► We achieved up to 50% reduction in chip area utilization and significantly improved timing results.
