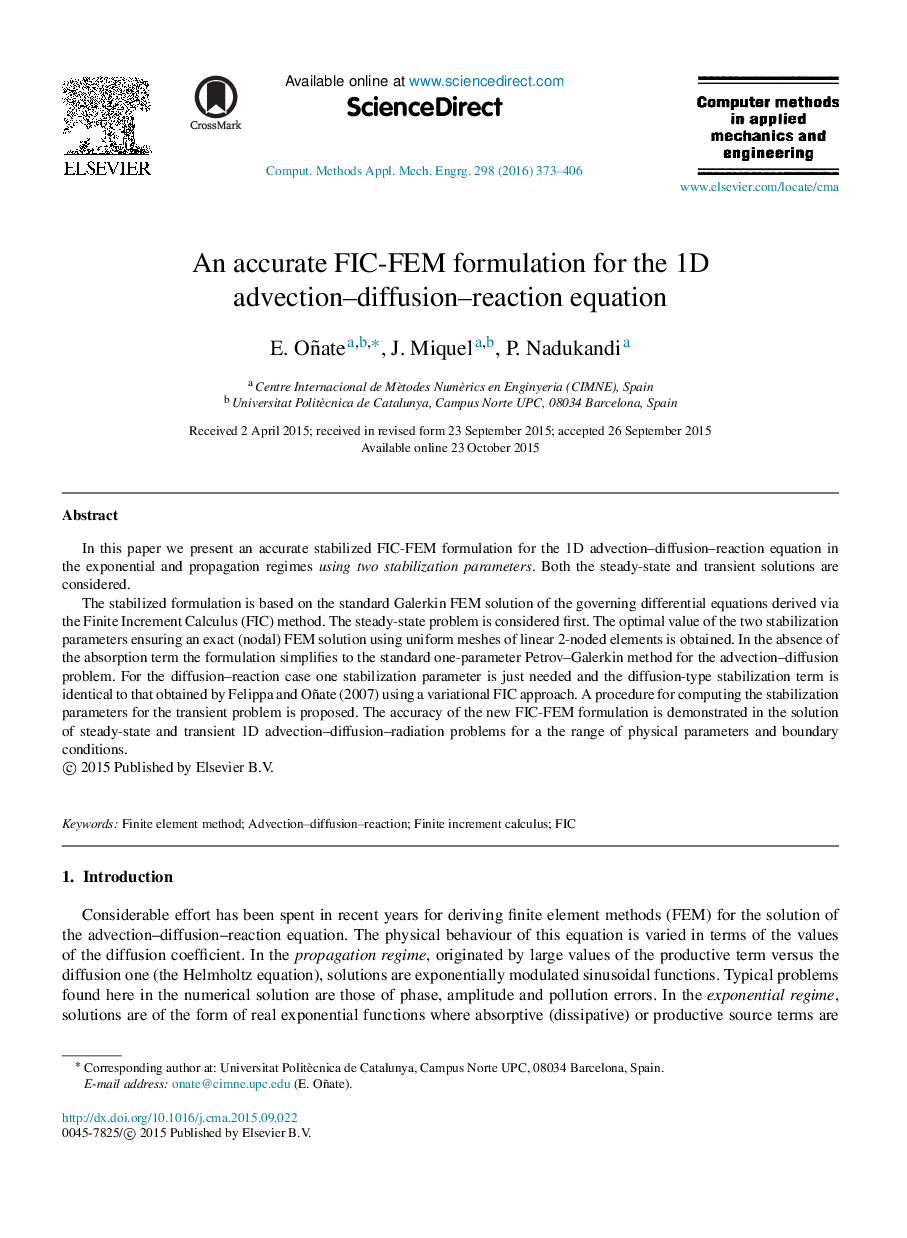

An accurate FIC-FEM formulation for the 1D advection-diffusion-reaction equation

The stabilized formulation is based on the standard Galerkin FEM solution of the governing differential equations derived via the Finite Increment Calculus (FIC) method. The steady-state problem is considered first. The optimal value of the two stabilization parameters ensuring an exact (nodal) FEM solution using uniform meshes of linear 2-noded elements is obtained. In the absence of the absorption term the formulation simplifies to the standard one-parameter Petrov-Galerkin method for the advection-diffusion problem. For the diffusion-reaction case one stabilization parameter is just needed and the diffusion-type stabilization term is identical to that obtained by Felippa and Oñate (2007) using a variational FIC approach. A procedure for computing the stabilization parameters for the transient problem is proposed. The accuracy of the new FIC-FEM formulation is demonstrated in the solution of steady-state and transient 1D advection-diffusion-radiation problems for a the range of physical parameters and boundary conditions.
