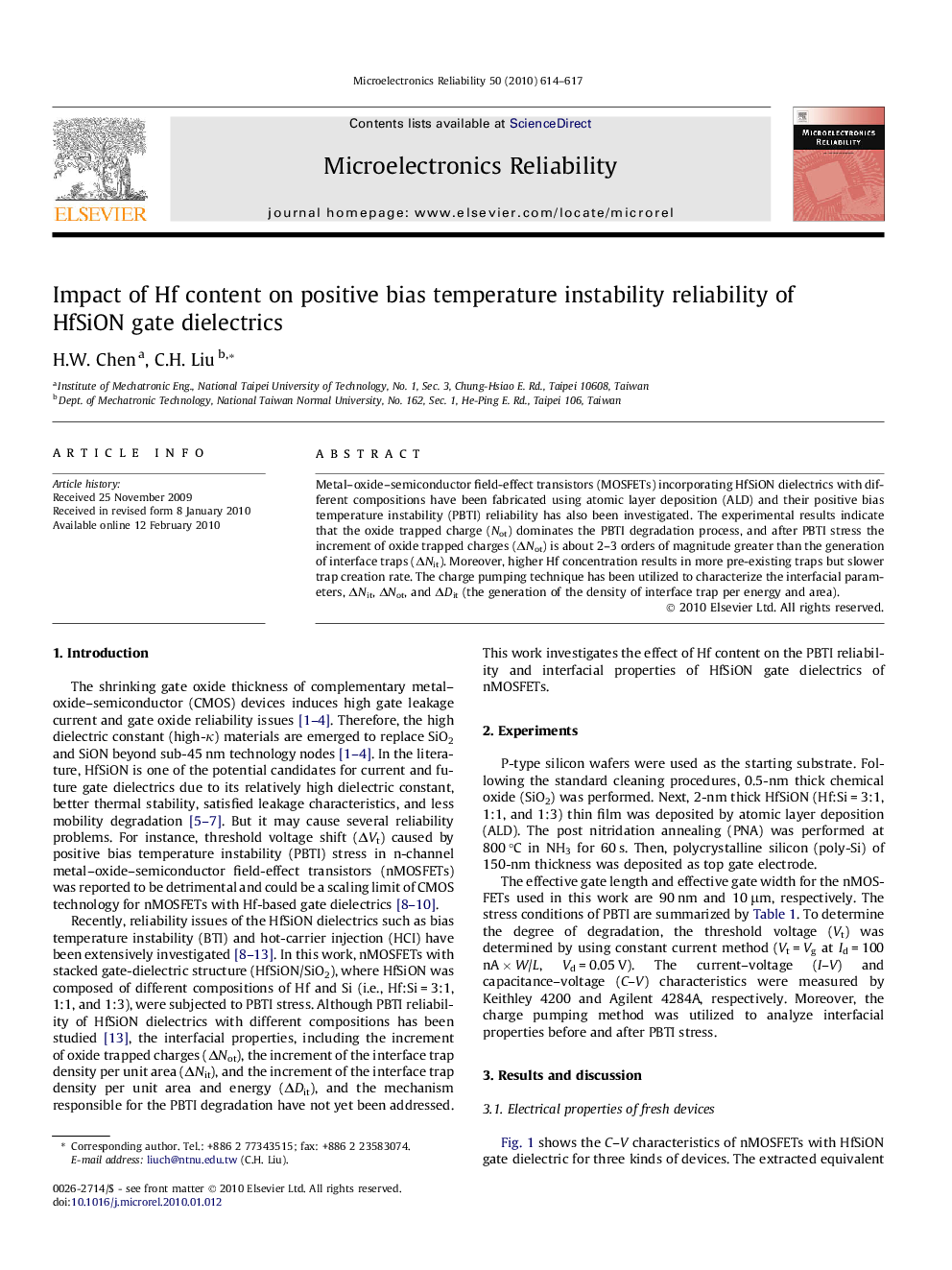

Abstract

Metal–oxide–semiconductor field-effect transistors (MOSFETs) incorporating HfSiON dielectrics with different compositions have been fabricated using atomic layer deposition (ALD) and their positive bias temperature instability (PBTI) reliability has also been investigated. The experimental results indicate that the oxide trapped charge (Not) dominates the PBTI degradation process, and after PBTI stress the increment of oxide trapped charges (ΔNot) is about 2–3 orders of magnitude greater than the generation of interface traps (ΔNit). Moreover, higher Hf concentration results in more pre-existing traps but slower trap creation rate. The charge pumping technique has been utilized to characterize the interfacial parameters, ΔNit, ΔNot, and ΔDit (the generation of the density of interface trap per energy and area).
