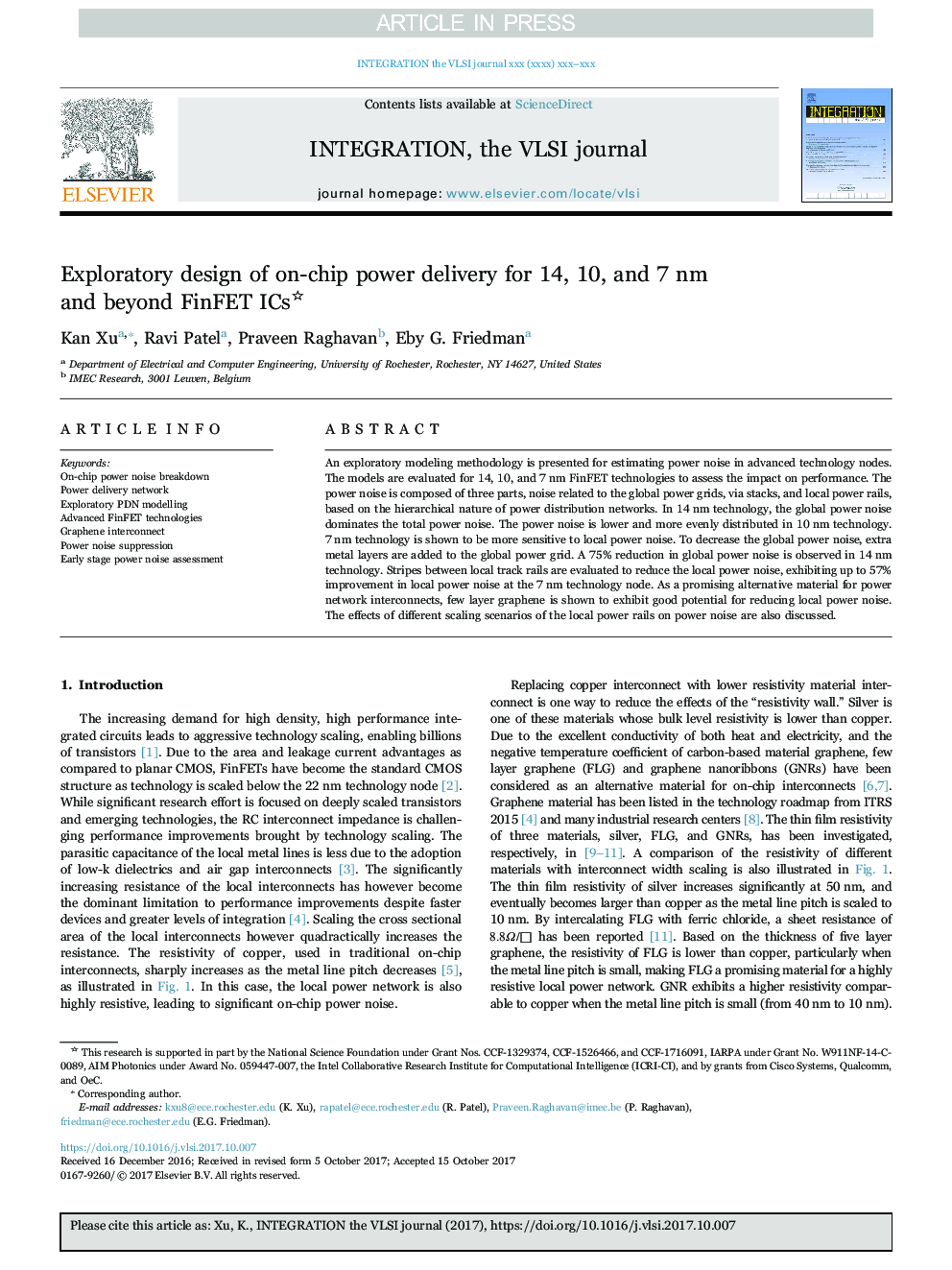

Exploratory design of on-chip power delivery for 14, 10, and 7 nm and beyond FinFET ICs

An exploratory modeling methodology is presented for estimating power noise in advanced technology nodes. The models are evaluated for 14, 10, and 7 nm FinFET technologies to assess the impact on performance. The power noise is composed of three parts, noise related to the global power grids, via stacks, and local power rails, based on the hierarchical nature of power distribution networks. In 14 nm technology, the global power noise dominates the total power noise. The power noise is lower and more evenly distributed in 10 nm technology. 7 nm technology is shown to be more sensitive to local power noise. To decrease the global power noise, extra metal layers are added to the global power grid. A 75% reduction in global power noise is observed in 14 nm technology. Stripes between local track rails are evaluated to reduce the local power noise, exhibiting up to 57% improvement in local power noise at the 7 nm technology node. As a promising alternative material for power network interconnects, few layer graphene is shown to exhibit good potential for reducing local power noise. The effects of different scaling scenarios of the local power rails on power noise are also discussed.
