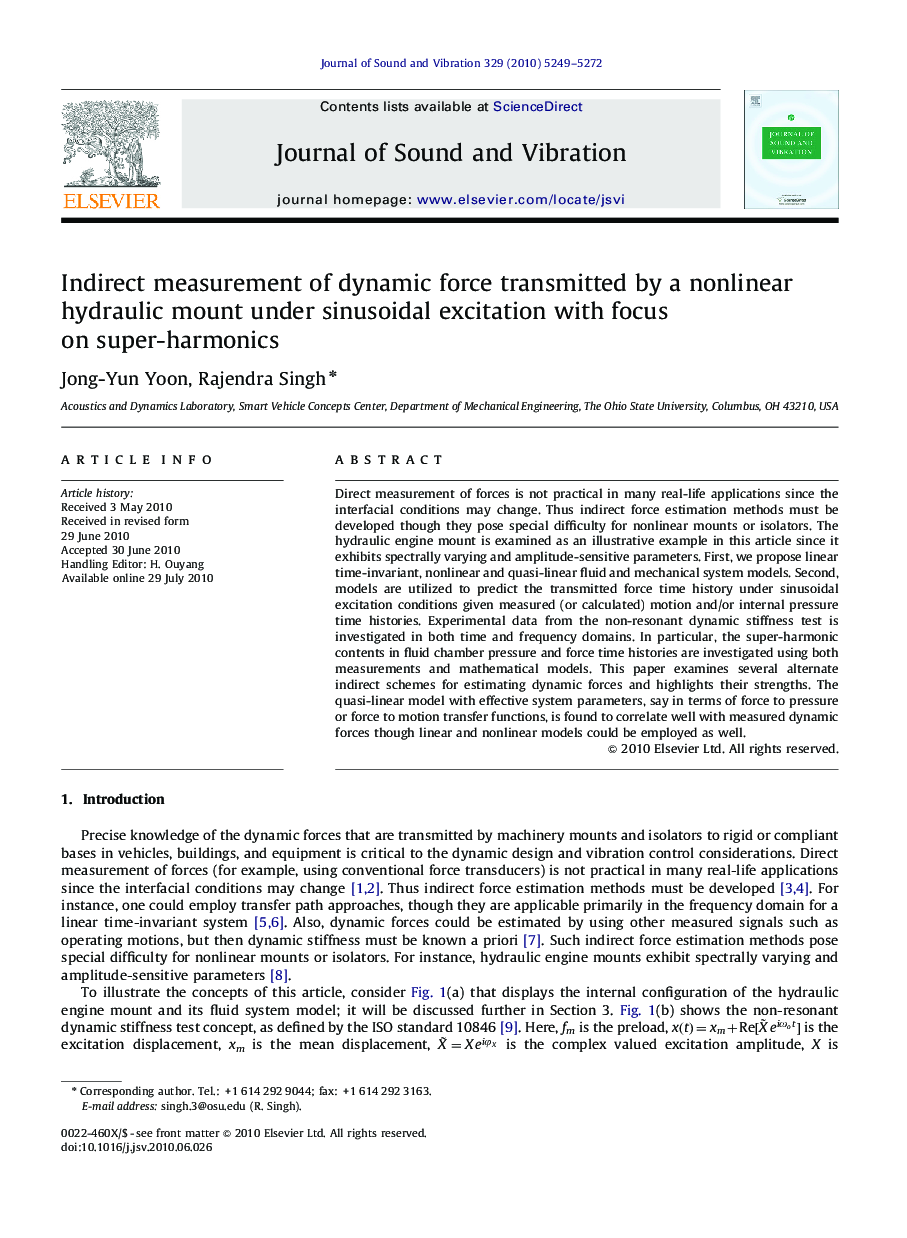

Indirect measurement of dynamic force transmitted by a nonlinear hydraulic mount under sinusoidal excitation with focus on super-harmonics

Direct measurement of forces is not practical in many real-life applications since the interfacial conditions may change. Thus indirect force estimation methods must be developed though they pose special difficulty for nonlinear mounts or isolators. The hydraulic engine mount is examined as an illustrative example in this article since it exhibits spectrally varying and amplitude-sensitive parameters. First, we propose linear time-invariant, nonlinear and quasi-linear fluid and mechanical system models. Second, models are utilized to predict the transmitted force time history under sinusoidal excitation conditions given measured (or calculated) motion and/or internal pressure time histories. Experimental data from the non-resonant dynamic stiffness test is investigated in both time and frequency domains. In particular, the super-harmonic contents in fluid chamber pressure and force time histories are investigated using both measurements and mathematical models. This paper examines several alternate indirect schemes for estimating dynamic forces and highlights their strengths. The quasi-linear model with effective system parameters, say in terms of force to pressure or force to motion transfer functions, is found to correlate well with measured dynamic forces though linear and nonlinear models could be employed as well.
