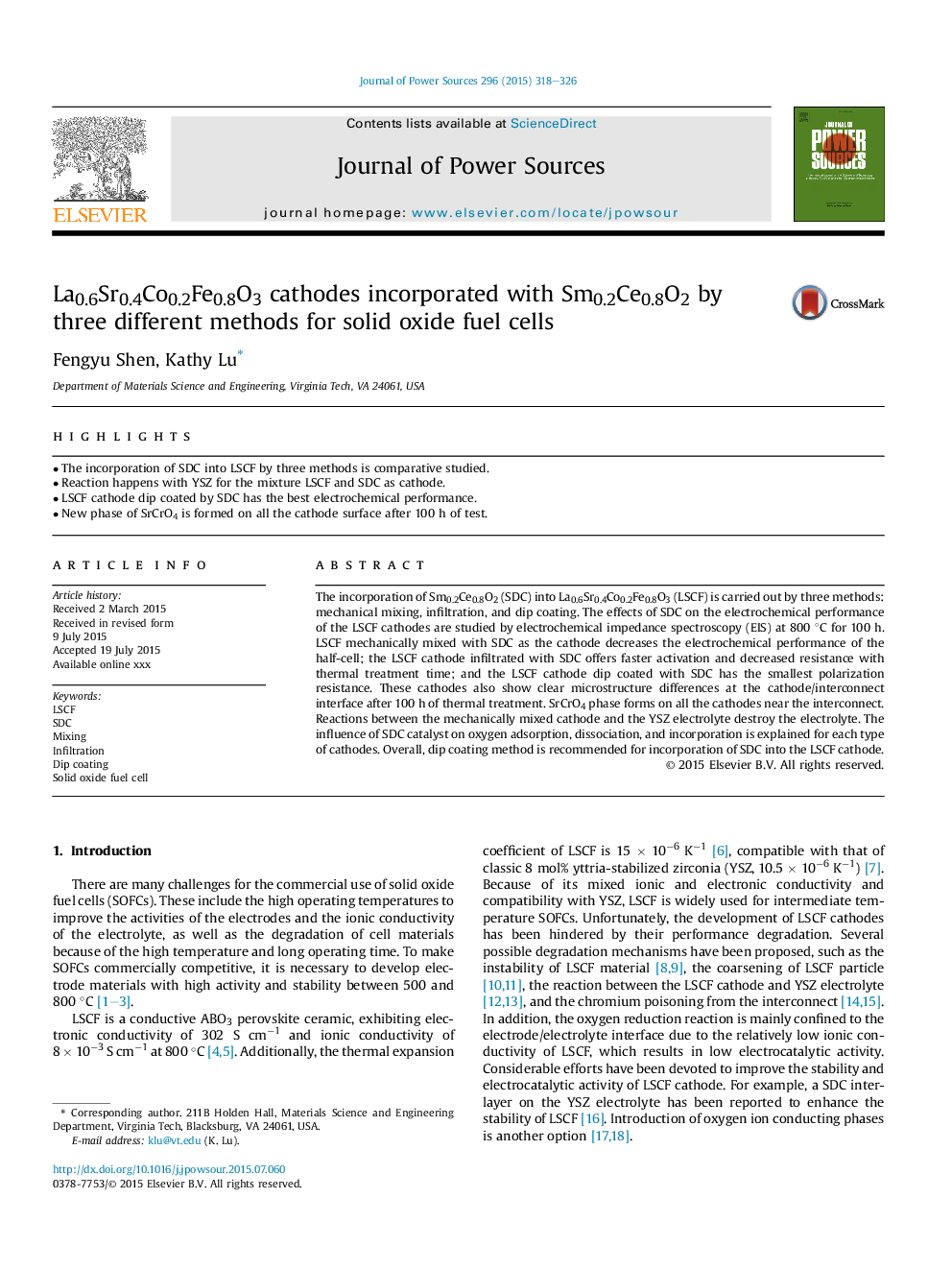

La0.6Sr0.4Co0.2Fe0.8O3 cathodes incorporated with Sm0.2Ce0.8O2 by three different methods for solid oxide fuel cells

The incorporation of Sm0.2Ce0.8O2 (SDC) into La0.6Sr0.4Co0.2Fe0.8O3 (LSCF) is carried out by three methods: mechanical mixing, infiltration, and dip coating. The effects of SDC on the electrochemical performance of the LSCF cathodes are studied by electrochemical impedance spectroscopy (EIS) at 800 °C for 100 h. LSCF mechanically mixed with SDC as the cathode decreases the electrochemical performance of the half-cell; the LSCF cathode infiltrated with SDC offers faster activation and decreased resistance with thermal treatment time; and the LSCF cathode dip coated with SDC has the smallest polarization resistance. These cathodes also show clear microstructure differences at the cathode/interconnect interface after 100 h of thermal treatment. SrCrO4 phase forms on all the cathodes near the interconnect. Reactions between the mechanically mixed cathode and the YSZ electrolyte destroy the electrolyte. The influence of SDC catalyst on oxygen adsorption, dissociation, and incorporation is explained for each type of cathodes. Overall, dip coating method is recommended for incorporation of SDC into the LSCF cathode.
