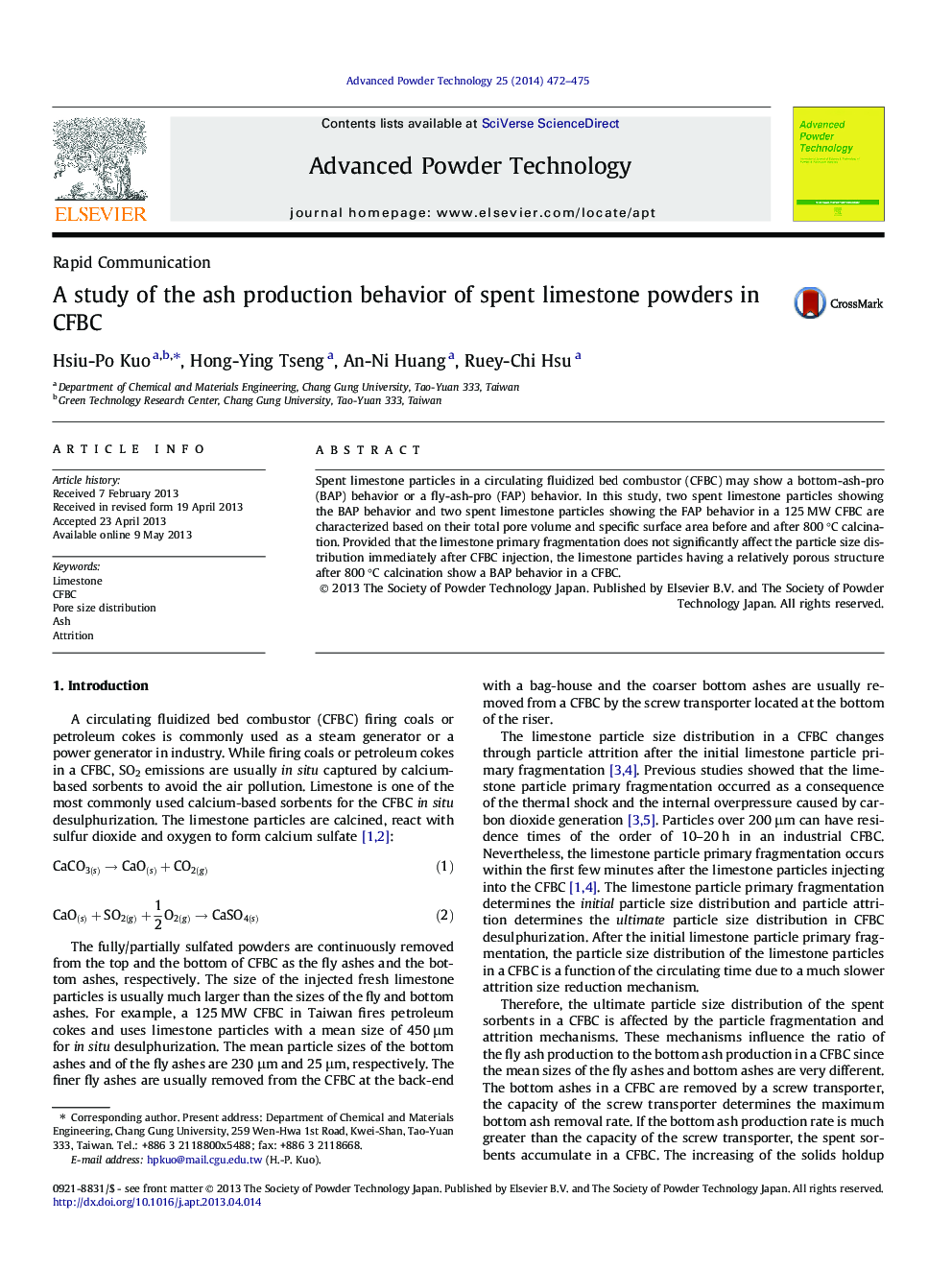

A study of the ash production behavior of spent limestone powders in CFBC

• Limestones are classified as the bottom-ash-pro and fly-ash-pro limestones.
• BAP and FAP limestone classification methodology is proposed.
• Calcined limestone with a relatively porous structure shows BAP behavior.

Spent limestone particles in a circulating fluidized bed combustor (CFBC) may show a bottom-ash-pro (BAP) behavior or a fly-ash-pro (FAP) behavior. In this study, two spent limestone particles showing the BAP behavior and two spent limestone particles showing the FAP behavior in a 125 MW CFBC are characterized based on their total pore volume and specific surface area before and after 800 °C calcination. Provided that the limestone primary fragmentation does not significantly affect the particle size distribution immediately after CFBC injection, the limestone particles having a relatively porous structure after 800 °C calcination show a BAP behavior in a CFBC.

Spent limestone particles in a circulating fluidized bed combustor (CFBC) may show a bottom-ash-pro (BAP) behavior or a fly-ash-pro (FAP) behavior. The results show that if the limestone primary fragmentation does not significantly affect the particle size distribution of the limestone particles immediately after injection into a CFBC, the limestone particles having a relatively porous structure after 800 °C calcination show a BAP behavior in a CFBC.Figure optionsDownload as PowerPoint slide
