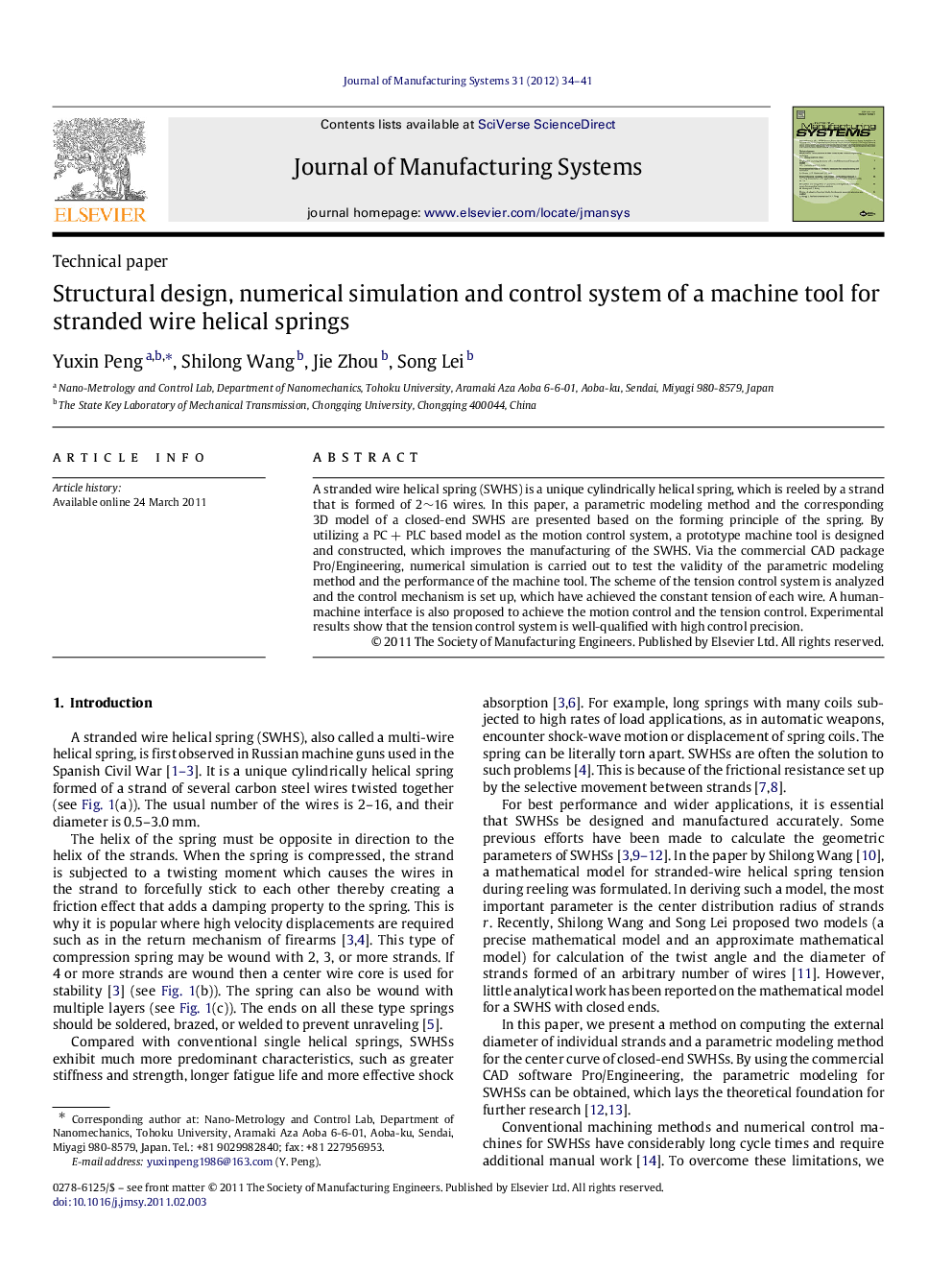

Structural design, numerical simulation and control system of a machine tool for stranded wire helical springs

A stranded wire helical spring (SWHS) is a unique cylindrically helical spring, which is reeled by a strand that is formed of 2∼16 wires. In this paper, a parametric modeling method and the corresponding 3D model of a closed-end SWHS are presented based on the forming principle of the spring. By utilizing a PC + PLC based model as the motion control system, a prototype machine tool is designed and constructed, which improves the manufacturing of the SWHS. Via the commercial CAD package Pro/Engineering, numerical simulation is carried out to test the validity of the parametric modeling method and the performance of the machine tool. The scheme of the tension control system is analyzed and the control mechanism is set up, which have achieved the constant tension of each wire. A human-machine interface is also proposed to achieve the motion control and the tension control. Experimental results show that the tension control system is well-qualified with high control precision.
