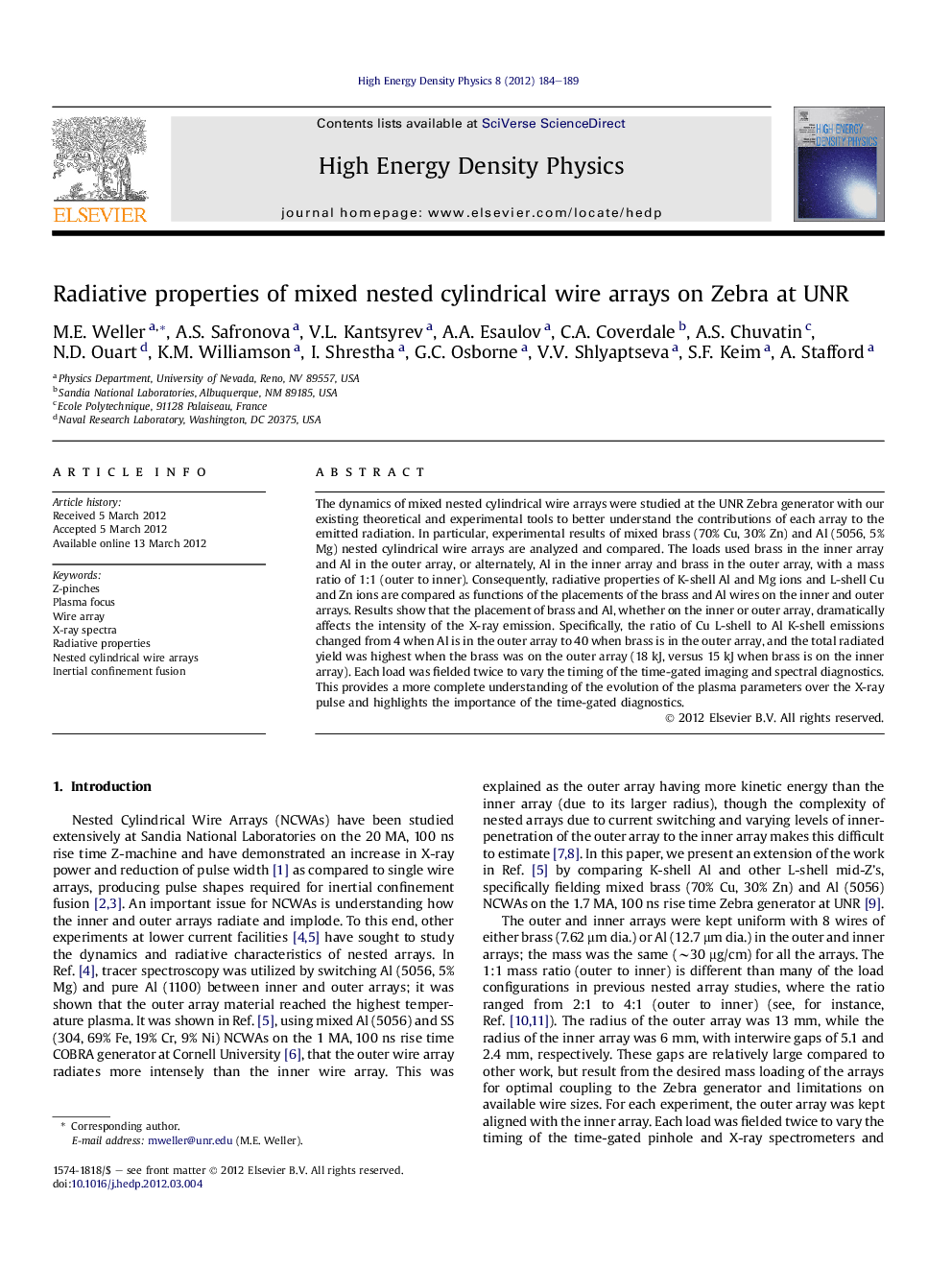

Radiative properties of mixed nested cylindrical wire arrays on Zebra at UNR

The dynamics of mixed nested cylindrical wire arrays were studied at the UNR Zebra generator with our existing theoretical and experimental tools to better understand the contributions of each array to the emitted radiation. In particular, experimental results of mixed brass (70% Cu, 30% Zn) and Al (5056, 5% Mg) nested cylindrical wire arrays are analyzed and compared. The loads used brass in the inner array and Al in the outer array, or alternately, Al in the inner array and brass in the outer array, with a mass ratio of 1:1 (outer to inner). Consequently, radiative properties of K-shell Al and Mg ions and L-shell Cu and Zn ions are compared as functions of the placements of the brass and Al wires on the inner and outer arrays. Results show that the placement of brass and Al, whether on the inner or outer array, dramatically affects the intensity of the X-ray emission. Specifically, the ratio of Cu L-shell to Al K-shell emissions changed from 4 when Al is in the outer array to 40 when brass is in the outer array, and the total radiated yield was highest when the brass was on the outer array (18 kJ, versus 15 kJ when brass is on the inner array). Each load was fielded twice to vary the timing of the time-gated imaging and spectral diagnostics. This provides a more complete understanding of the evolution of the plasma parameters over the X-ray pulse and highlights the importance of the time-gated diagnostics.
