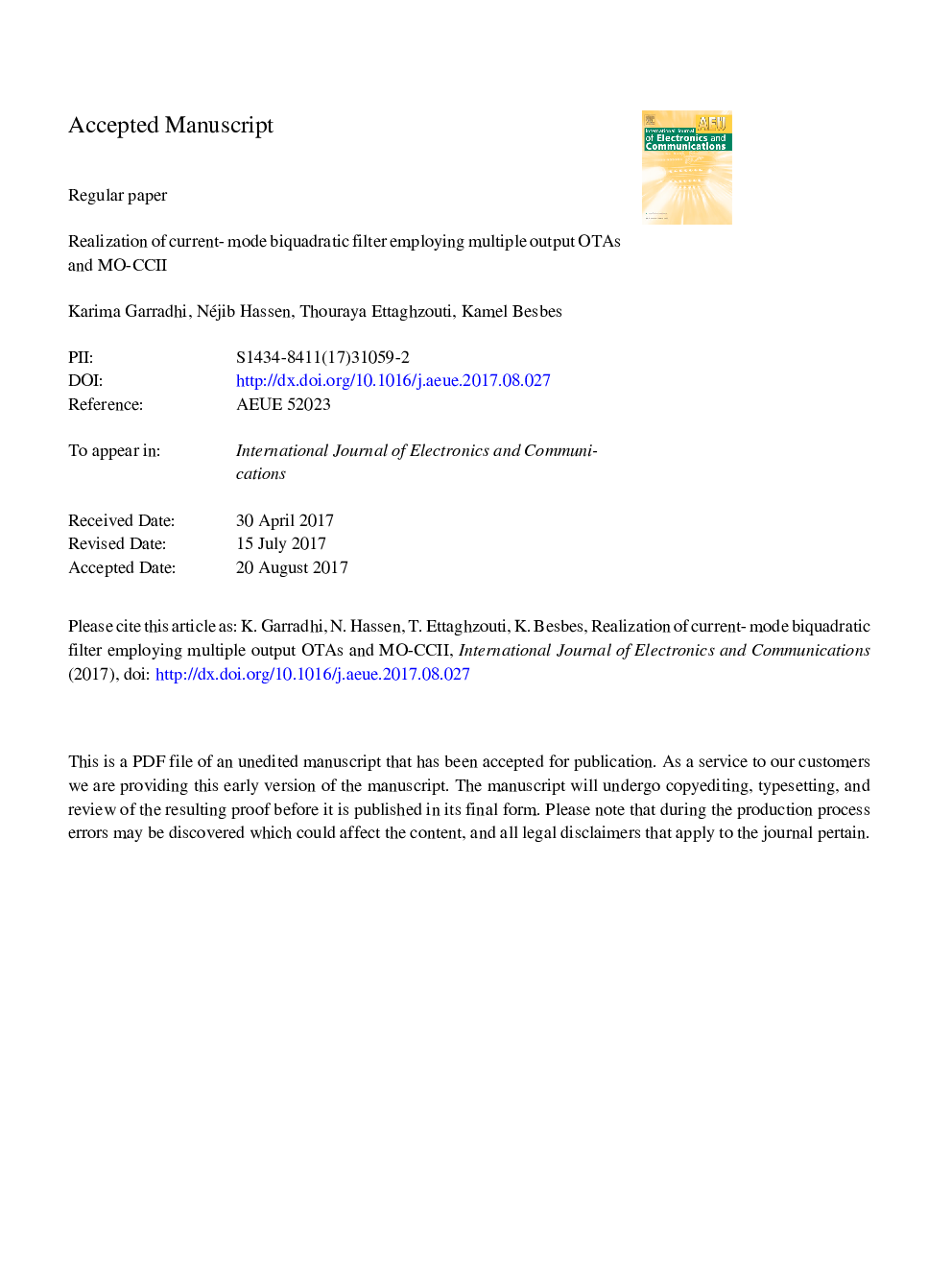

Realization of current-mode biquadratic filter employing multiple output OTAs and MO-CCII

Thereafter, new SIMO current-mode biquadratic filter composed by OTA and CCII as active elements and two grounded capacitors is implemented. This filter is characterized by (i) independent adjusting of pole frequency and quality factor, (ii) it can realize all simulations results without changing the circuit topology, (iii) it shows low power consumption about 0.24 mW. All simulations are performed by Cadence (Cadence Design Systems) technology Tower Jazz 0.18 μm TS18SL.
