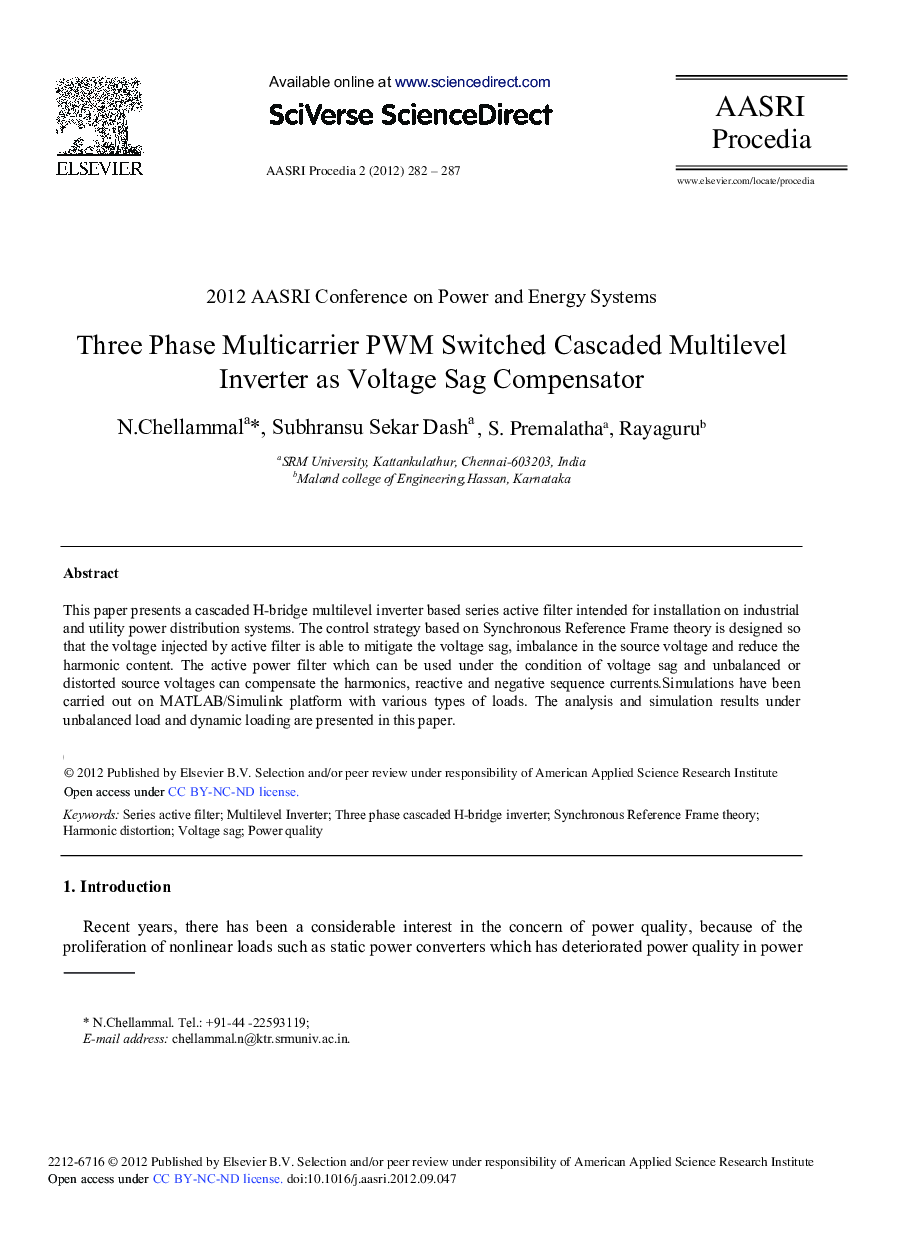

Three Phase Multicarrier PWM Switched Cascaded Multilevel Inverter as Voltage Sag Compensator

This paper presents a cascaded H–bridge multilevel inverter based series active filter intended for installation on industrial and utility power distribution systems. The control strategy based on Synchronous Reference Frame theory is designed so that the voltage injected by active filter is able to mitigate the voltage sag, imbalance in the source voltage and reduce the harmonic content. The active power filter which can be used under the condition of voltage sag and unbalanced or distorted source voltages can compensate the harmonics, reactive and negative sequence currents.Simulations have been carried out on MATLAB/Simulink platform with various types of loads. The analysis and simulation results under unbalanced load and dynamic loading are presented in this paper.
