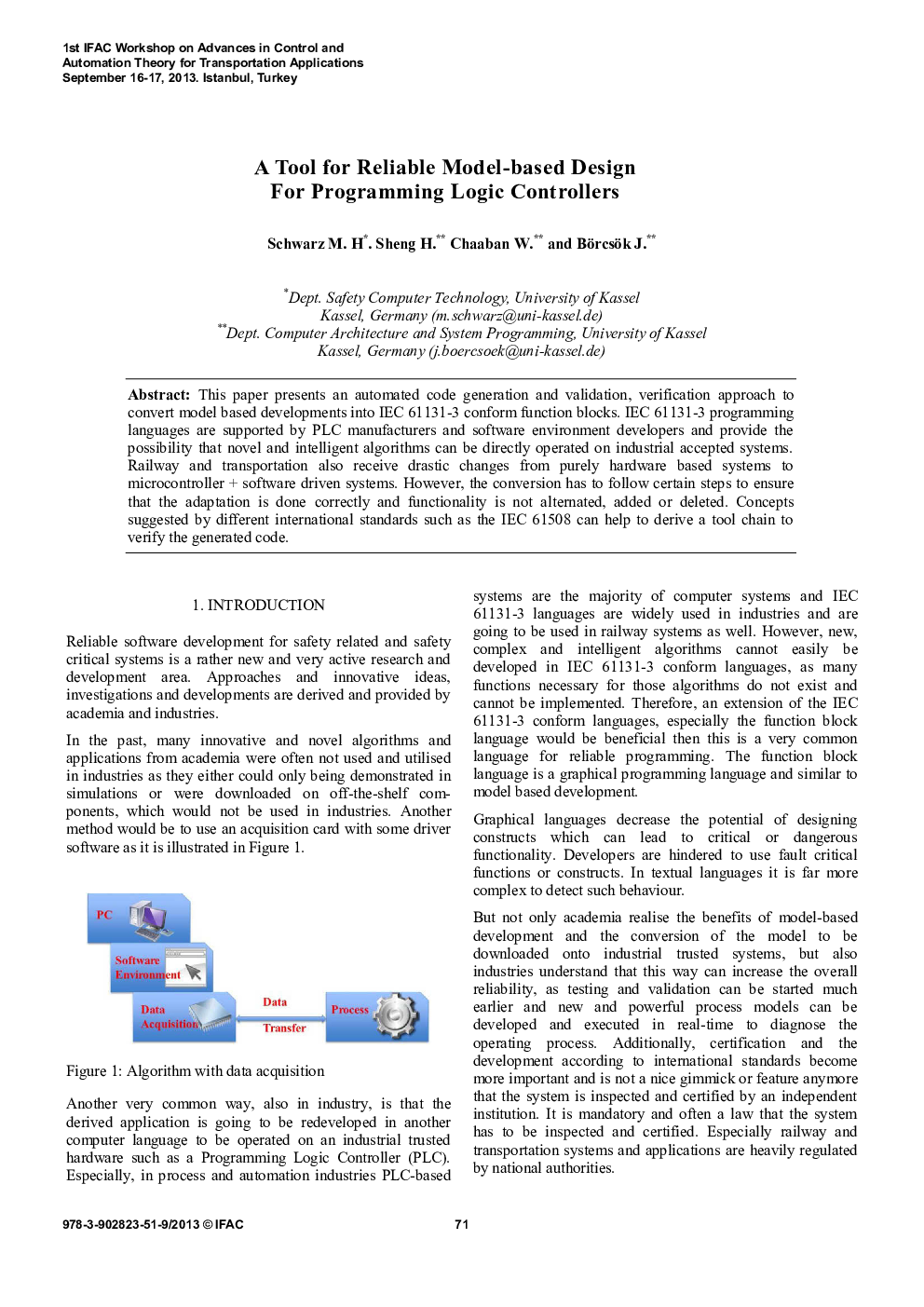

A Tool for Reliable Model-based Design For Programming Logic Controllers

This paper presents an automated code generation and validation, verification approach to convert model based developments into IEC 61131-3 conform function blocks. IEC 61131-3 programming languages are supported by PLC manufacturers and software environment developers and provide the possibility that novel and intelligent algorithms can be directly operated on industrial accepted systems. Railway and transportation also receive drastic changes from purely hardware based systems to microcontroller + software driven systems. However, the conversion has to follow certain steps to ensure that the adaptation is done correctly and functionality is not alternated, added or deleted. Concepts suggested by different international standards such as the IEC 61508 can help to derive a tool chain to verify the generated code.
