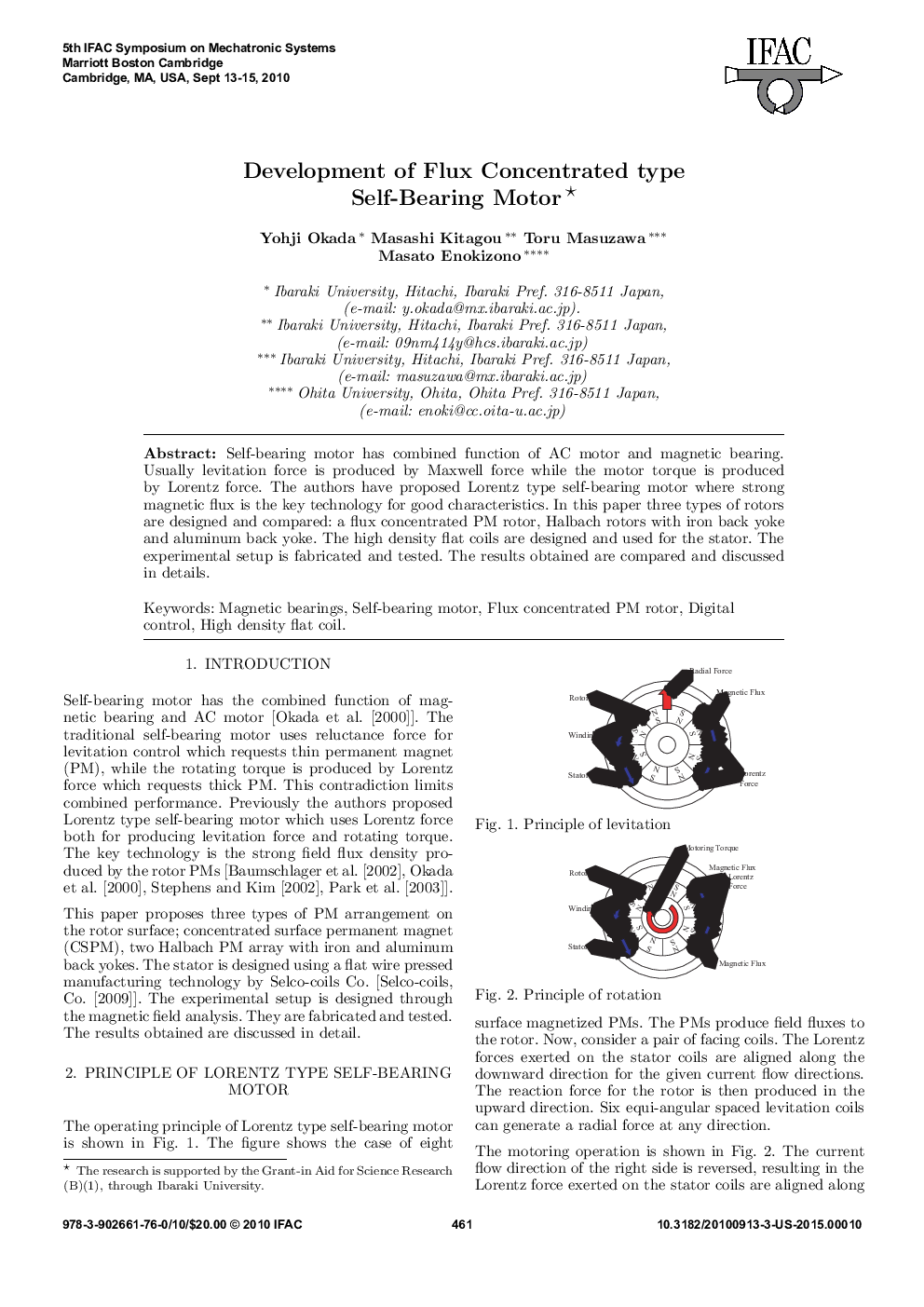

Development of Flux Concentrated type Self-Bearing Motor

Self-bearing motor has combined function of AC motor and magnetic bearing. Usually levitation force is produced by Maxwell force while the motor torque is produced by Lorentz force. The authors have proposed Lorentz type self-bearing motor where strong magnetic flux is the key technology for good characteristics. In this paper three types of rotors are designed and compared: a flux concentrated PM rotor, Halbach rotors with iron back yoke and aluminum back yoke. The high density flat coils are designed and used for the stator. The experimental setup is fabricated and tested. The results obtained are compared and discussed in details.
