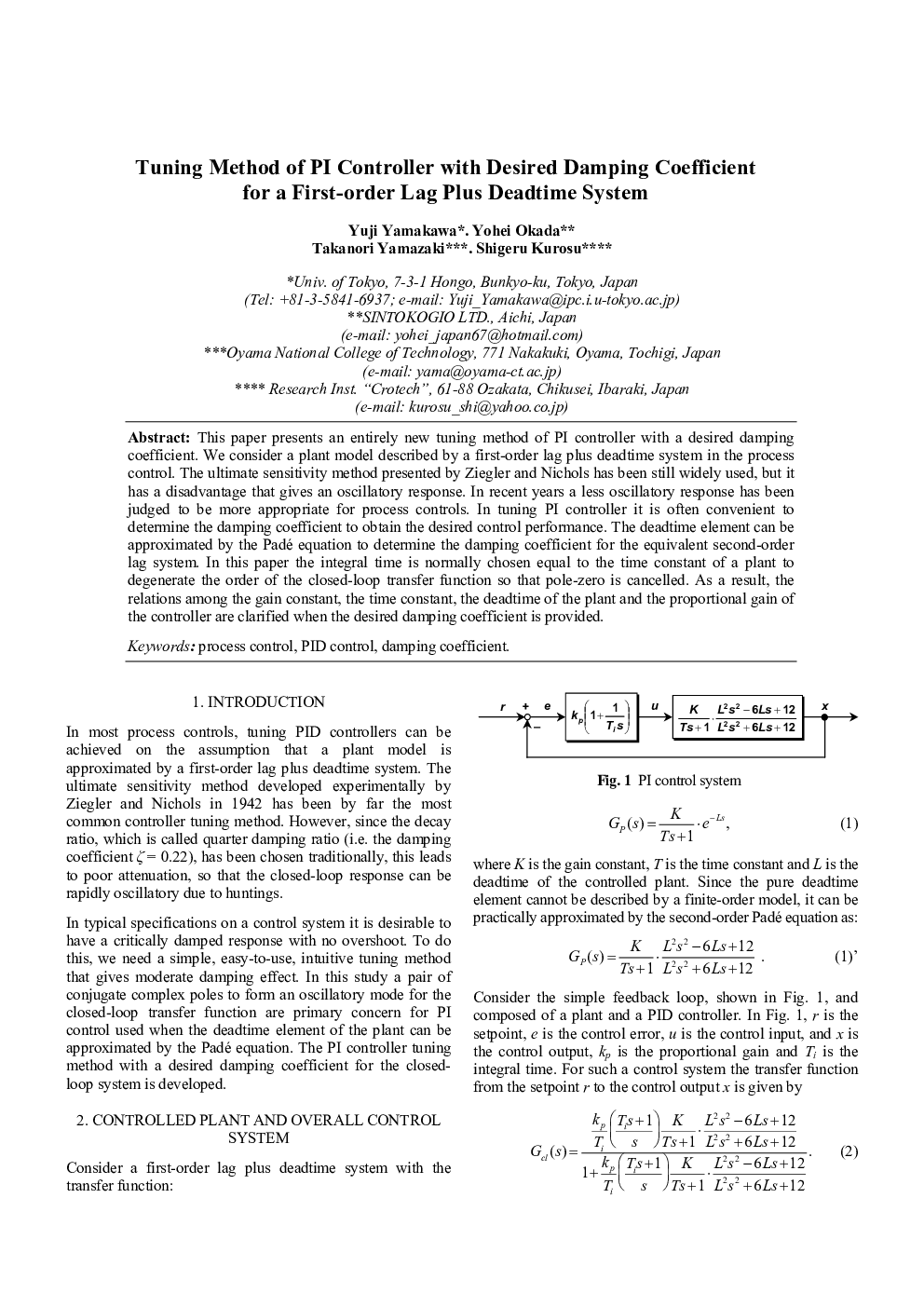

Tuning Method of PI Controller with Desired Damping Coefficient for a First-order Lag Plus Deadtime System

This paper presents an entirely new tuning method of PI controller with a desired damping coefficient. We consider a plant model described by a first-order lag plus deadtime system in the process control. The ultimate sensitivity method presented by Ziegler and Nichols has been still widely used, but it has a disadvantage that gives an oscillatory response. In recent years a less oscillatory response has been judged to be more appropriate for process controls. In tuning PI controller it is often convenient to determine the damping coefficient to obtain the desired control performance. The deadtime element can be approximated by the Padé equation to determine the damping coefficient for the equivalent second-order lag system. In this paper the integral time is normally chosen equal to the time constant of a plant to degenerate the order of the closed-loop transfer function so that pole-zero is cancelled. As a result, the relations among the gain constant, the time constant, the deadtime of the plant and the proportional gain of the controller are clarified when the desired damping coefficient is provided.
