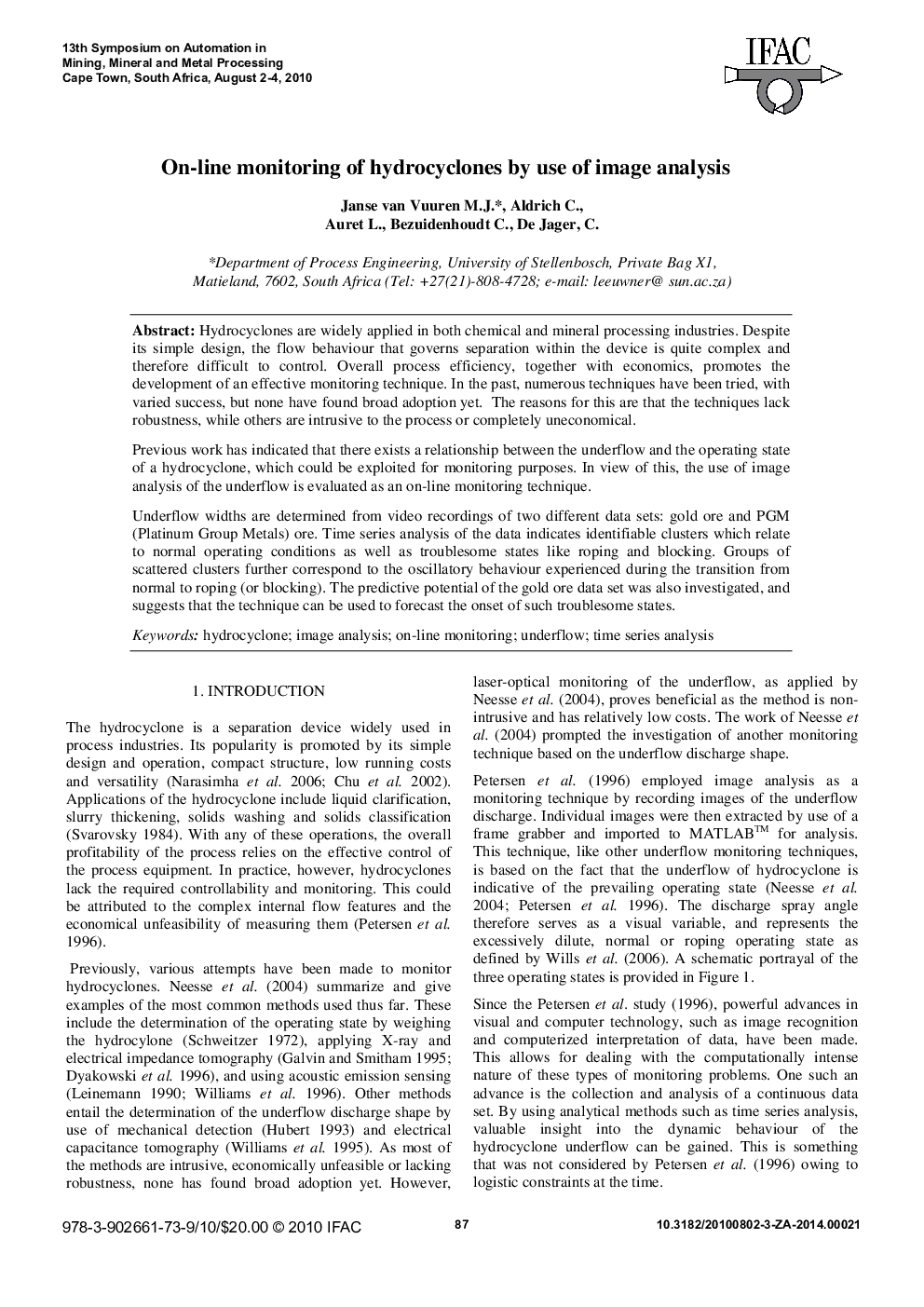

On-line monitoring of hydrocyclones by use of image analysis

Hydrocyclones are widely applied in both chemical and mineral processing industries. Despite its simple design, the flow behaviour that governs separation within the device is quite complex and therefore difficult to control. Overall process efficiency, together with economics, promotes the development of an effective monitoring technique. In the past, numerous techniques have been tried, with varied success, but none have found broad adoption yet. The reasons for this are that the techniques lack robustness, while others are intrusive to the process or completely uneconomical.Previous work has indicated that there exists a relationship between the underflow and the operating state of a hydrocyclone, which could be exploited for monitoring purposes. In view of this, the use of image analysis of the underflow is evaluated as an on-line monitoring technique.Underflow widths are determined from video recordings of two different data sets: gold ore and PGM (Platinum Group Metals) ore. Time series analysis of the data indicates identifiable clusters which relate to normal operating conditions as well as troublesome states like roping and blocking. Groups of scattered clusters further correspond to the oscillatory behaviour experienced during the transition from normal to roping (or blocking). The predictive potential of the gold ore data set was also investigated, and suggests that the technique can be used to forecast the onset of such troublesome states.
