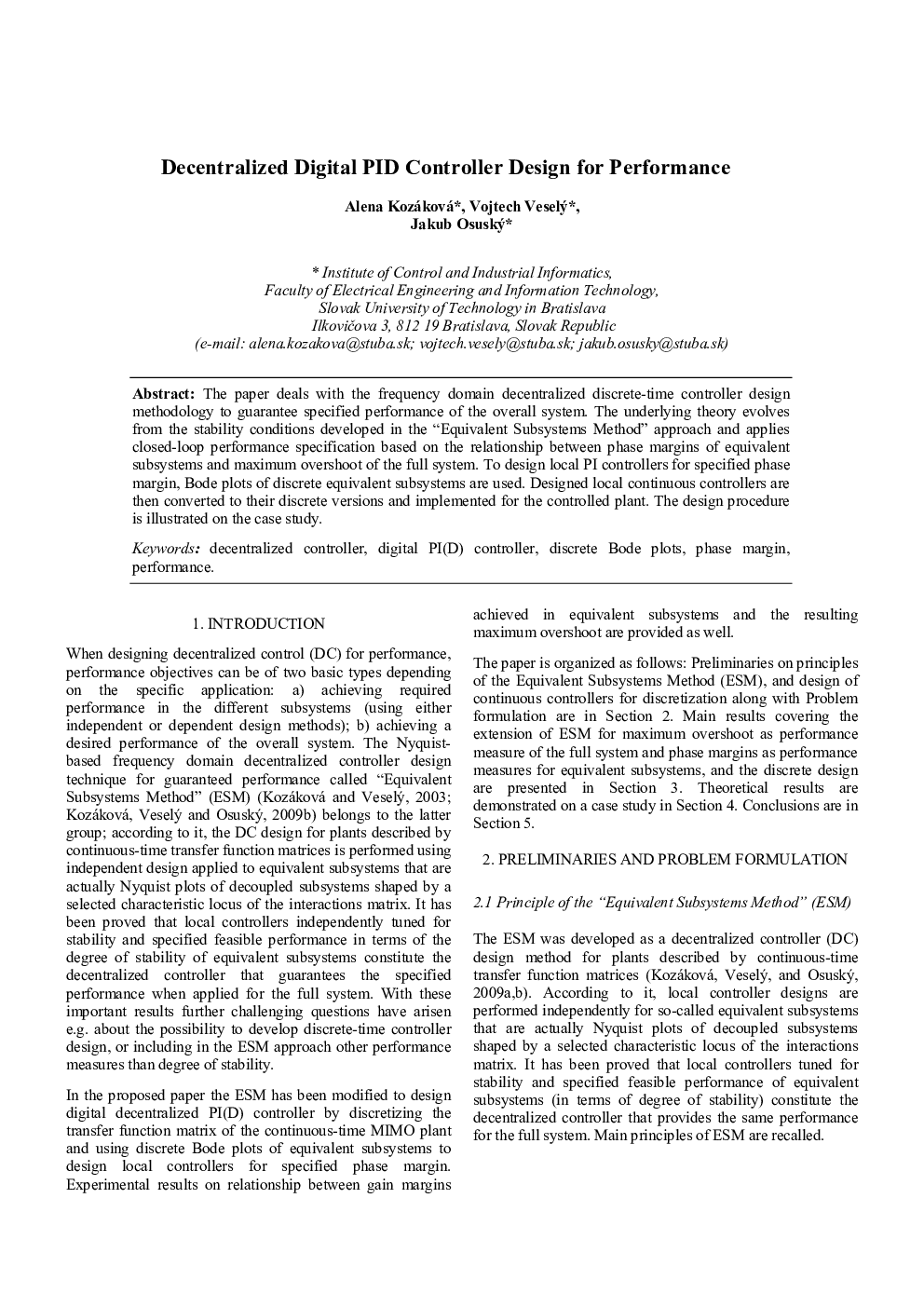

Decentralized Digital PID Controller Design for Performance

The paper deals with the frequency domain decentralized discrete-time controller design methodology to guarantee specified performance of the overall system. The underlying theory evolves from the stability conditions developed in the “Equivalent Subsystems Method” approach and applies closed-loop performance specification based on the relationship between phase margins of equivalent subsystems and maximum overshoot of the full system. To design local PI controllers for specified phase margin, Bode plots of discrete equivalent subsystems are used. Designed local continuous controllers are then converted to their discrete versions and implemented for the controlled plant. The design procedure is illustrated on the case study.
