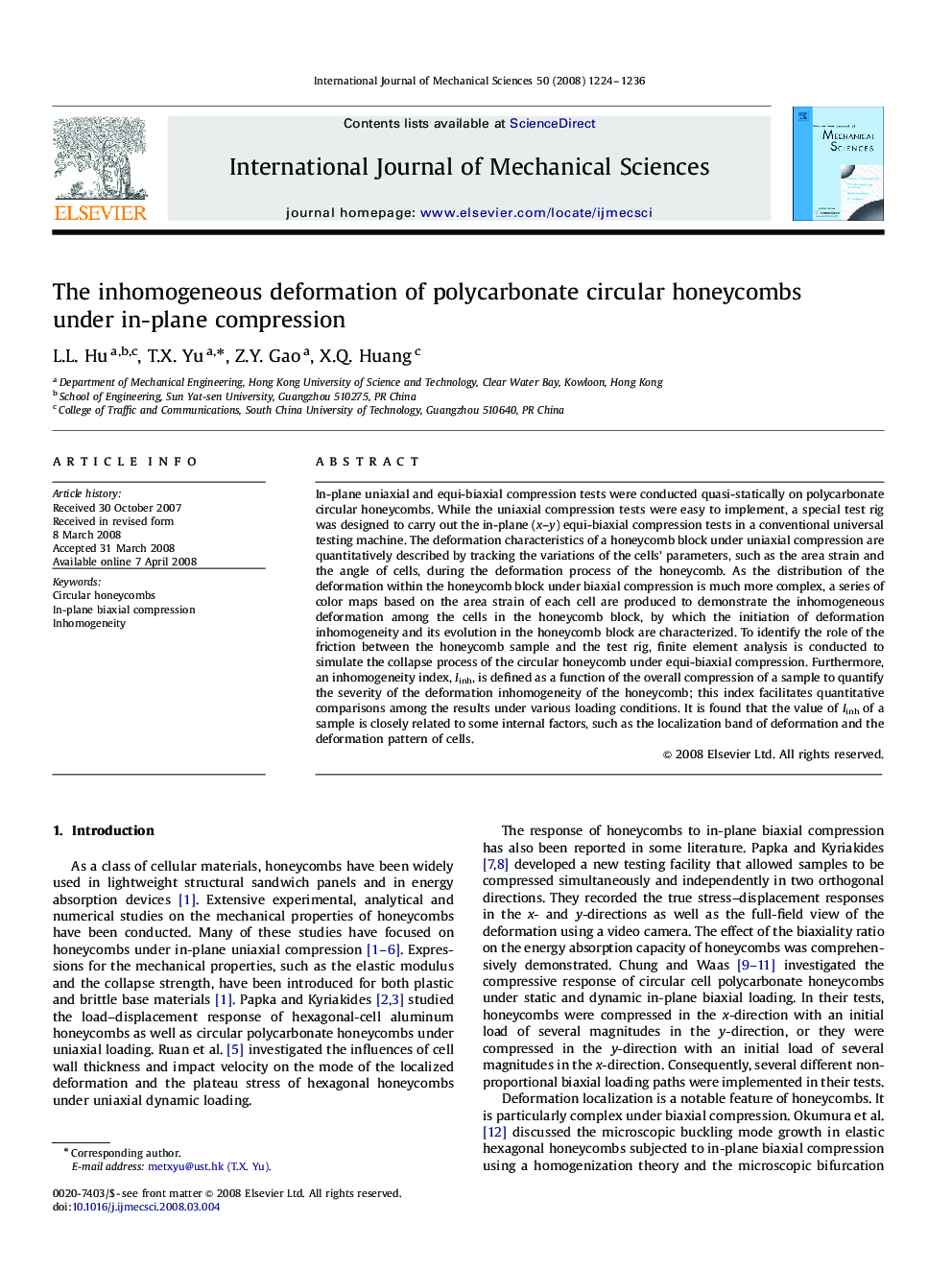

The inhomogeneous deformation of polycarbonate circular honeycombs under in-plane compression

In-plane uniaxial and equi-biaxial compression tests were conducted quasi-statically on polycarbonate circular honeycombs. While the uniaxial compression tests were easy to implement, a special test rig was designed to carry out the in-plane (x–y) equi-biaxial compression tests in a conventional universal testing machine. The deformation characteristics of a honeycomb block under uniaxial compression are quantitatively described by tracking the variations of the cells’ parameters, such as the area strain and the angle of cells, during the deformation process of the honeycomb. As the distribution of the deformation within the honeycomb block under biaxial compression is much more complex, a series of color maps based on the area strain of each cell are produced to demonstrate the inhomogeneous deformation among the cells in the honeycomb block, by which the initiation of deformation inhomogeneity and its evolution in the honeycomb block are characterized. To identify the role of the friction between the honeycomb sample and the test rig, finite element analysis is conducted to simulate the collapse process of the circular honeycomb under equi-biaxial compression. Furthermore, an inhomogeneity index, Iinh, is defined as a function of the overall compression of a sample to quantify the severity of the deformation inhomogeneity of the honeycomb; this index facilitates quantitative comparisons among the results under various loading conditions. It is found that the value of Iinh of a sample is closely related to some internal factors, such as the localization band of deformation and the deformation pattern of cells.
