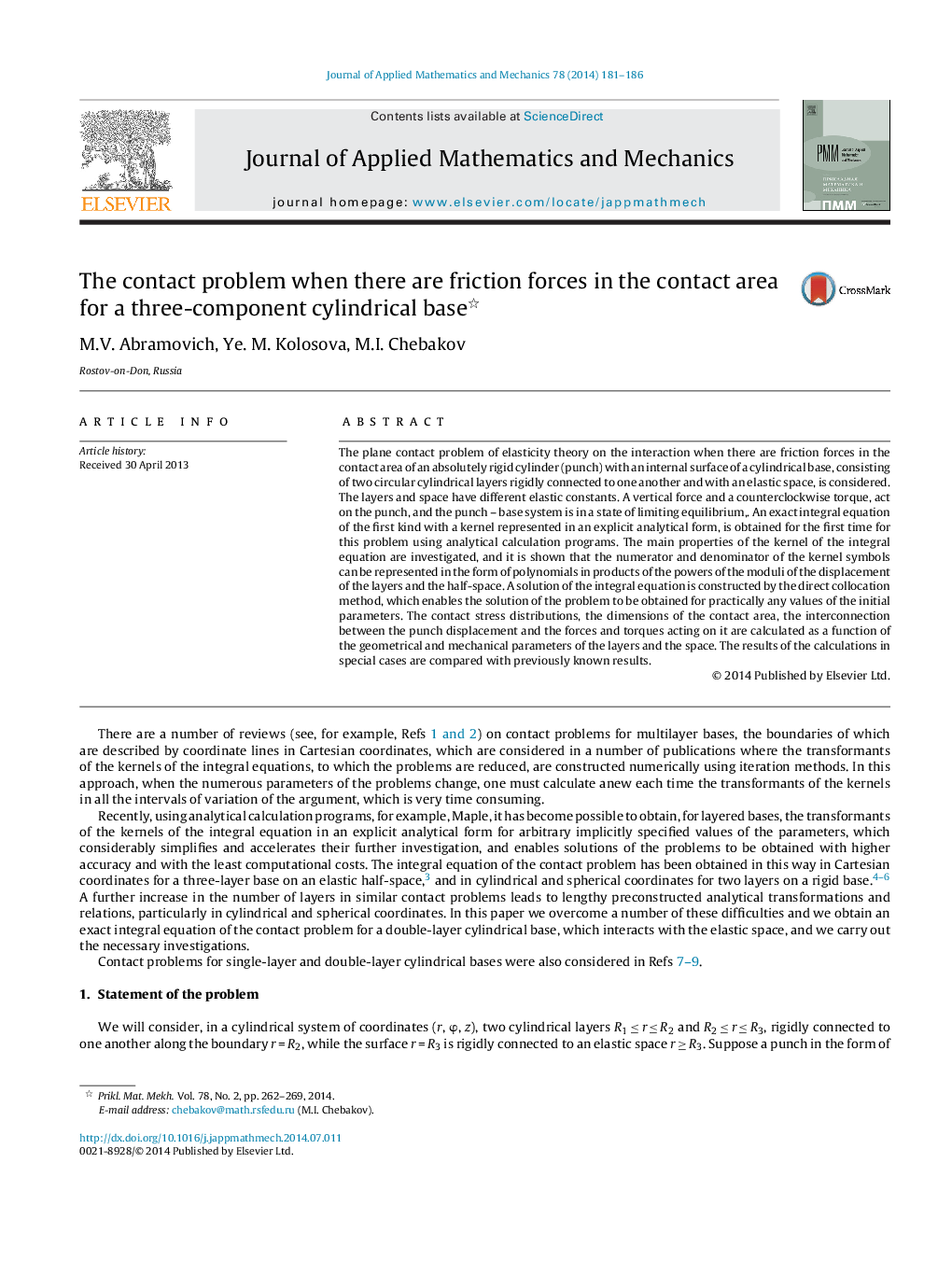

The contact problem when there are friction forces in the contact area for a three-component cylindrical base

The plane contact problem of elasticity theory on the interaction when there are friction forces in the contact area of an absolutely rigid cylinder (punch) with an internal surface of a cylindrical base, consisting of two circular cylindrical layers rigidly connected to one another and with an elastic space, is considered. The layers and space have different elastic constants. A vertical force and a counterclockwise torque, act on the punch, and the punch – base system is in a state of limiting equilibrium,. An exact integral equation of the first kind with a kernel represented in an explicit analytical form, is obtained for the first time for this problem using analytical calculation programs. The main properties of the kernel of the integral equation are investigated, and it is shown that the numerator and denominator of the kernel symbols can be represented in the form of polynomials in products of the powers of the moduli of the displacement of the layers and the half-space. A solution of the integral equation is constructed by the direct collocation method, which enables the solution of the problem to be obtained for practically any values of the initial parameters. The contact stress distributions, the dimensions of the contact area, the interconnection between the punch displacement and the forces and torques acting on it are calculated as a function of the geometrical and mechanical parameters of the layers and the space. The results of the calculations in special cases are compared with previously known results.
