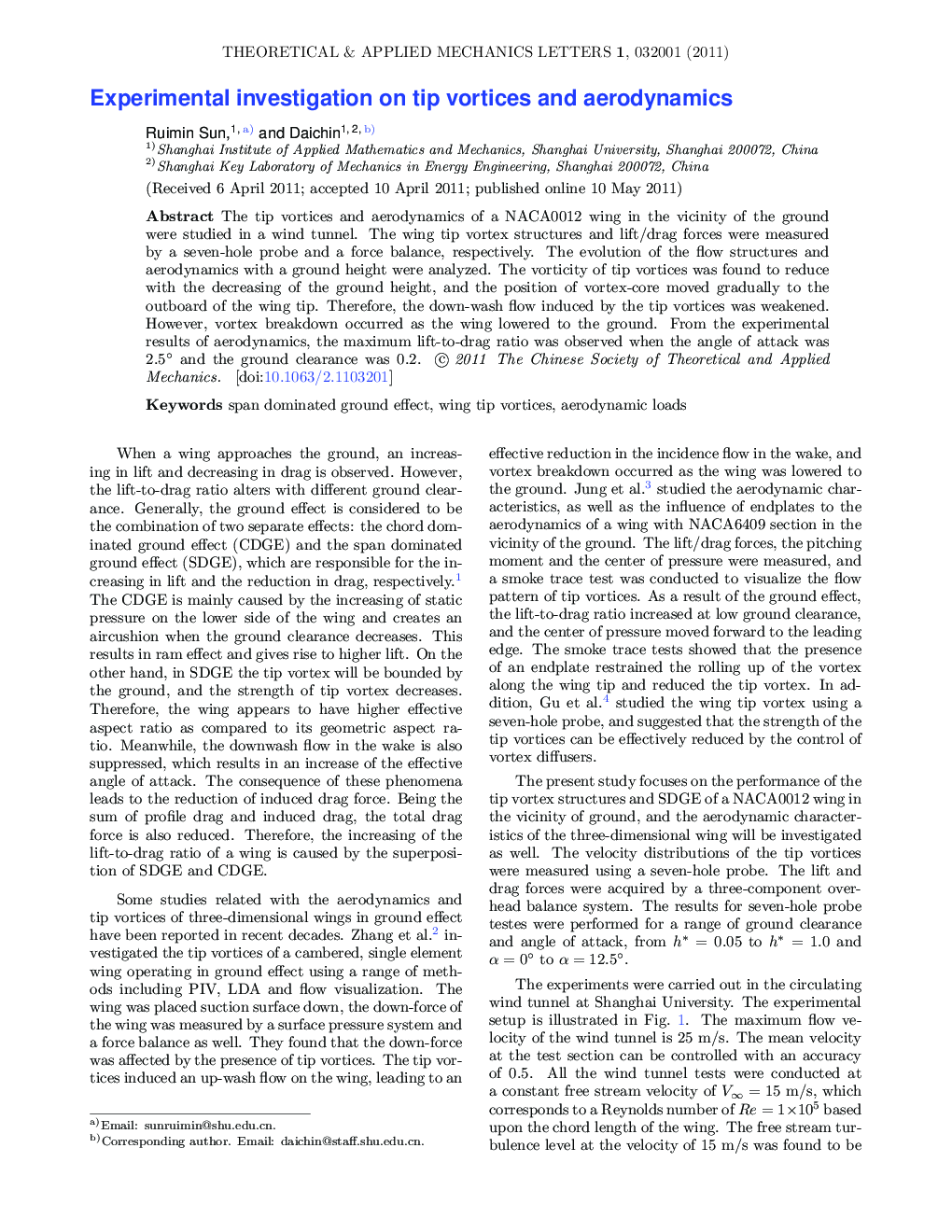

Experimental investigation on tip vortices and aerodynamics

The tip vortices and aerodynamics of a NACA0012 wing in the vicinity of the ground were studied in a wind tunnel. The wing tip vortex structures and lift/drag forces were measured by a seven-hole probe and a force balance, respectively. The evolution of the flow structures and aerodynamics with a ground height were analyzed. The vorticity of tip vortices was found to reduce with the decreasing of the ground height, and the position of vortex-core moved gradually to the outboard of the wing tip. Therefore, the down-wash flow induced by the tip vortices was weakened. However, vortex breakdown occurred as the wing lowered to the ground. From the experimental results of aerodynamics, the maximum lift-to-drag ratio was observed when the angle of attack was 2.5° and the ground clearance was 0.2.
